Spelsberg WKE Rapid-Box HT Junction Box

Name: Spelsberg WKE Rapid-Box HT Junction Box – Datasheet & Quote
Brand: Spelsberg
SKU: WKE Rapid-Box HT

A fire-resistant junction box for tunnel and industrial cable runs

The Spelsberg WKE Rapid-Box HT 1×3 16 mm2 1F is an orange, halogen-free junction box made of thermosetting plastic, with ceramic high-temperature terminals and stainless steel fixing lugs and cover screws. The data sheet describes electrical functional integrity of E30 to E90 under DIN 4102 Part 12, IP66/IP67, and use in industrial environments and tunnel applications, pressure and suction tight in accordance with the Gotthard guideline.

Technical specifications

Parameter	Specification
Product number	30232116
Dimensions W x L x H	190 x 447 x 105 mm; inner 145 x 350 x 95 mm
Weight	4.4 kg
Material	Thermosetting plastic (Duroplast), silicone seal, stainless steel 1.4571 cover screws
Protection type	IP66/IP67, protection class II
Circuit integrity class	E30/E60/E90
Rated operating / insulation voltage	400 V AC
Feed-through terminal	3-pole, uncut wire 2.5 to 25 mm2, cut wire 2.5 to 16 mm2, 63 A
Branch	Fuse and feedback-free junction, 3-pole up to 2.5 mm2, protected by 1 x unipolar B16 circuit breaker, pre-wired
Cable entries	M25, 5 on the side; main cable sealing range 17 to 22 mm
Supplied with	2 M25 cable glands (9 to 16 mm) and 4 M25 locking screws
Impact strength	IK09
Flammability	UL94 V0; glow-wire 960 degC; halogen free
Ambient temperature	-25 to +40 degC
Cover screw torque	6 Nm
EAN / ETIM class	4013902651566 / EC002600
Installation location	Protected outdoor areas; wall or ceiling mounting with external fixing lugs
Maximum relative humidity	100 % at 25 degC; 50 % at 40 degC
Customs tariff number	85369095
Colour; seal	Orange base and cover; silicone seal
Maximum wire cross-section (branching)	2.5 mm2

Selection and installation

This is a specialist box for circuits that must keep running during a fire, such as emergency lighting, ventilation and fire-fighting supplies along a tunnel or escape route. The cable, its fixing and the box all contribute to the circuit-integrity rating, so confirm the cable type and the fixing method with the system designer and the Spelsberg documentation. Other sealing ranges are available on request according to the data sheet.

Construction details

The enclosure is made of special thermosetting plastic (Duroplast), is halogen-free and rated UL94 V0, while the terminals are made of special high-temperature-resistant ceramic. The box is fixed with external fixing lugs made of stainless steel 1.4571, the same grade as the cover screws, which are tightened to 6 Nm. The data sheet describes the box as pressure and suction tight in accordance with the Gotthard guideline, with an impact strength of IK09.

Each box is supplied with two M25 cable glands (sealing range 9 to 16 mm) and four M25 locking screws, and has five M25 entries on the side. The main cable sealing range is 17 to 22 mm. The branch is protected by one pre-wired unipolar B16 circuit breaker, and the feed-through terminal is rated 63 A. The rated operating and insulation voltage is 400 V AC, and the sheet lists no accessories for this item.

For general outdoor junction boxes see the Cooper Crouse-Hinds GUE and the automation accessories category.

Documents and quotation

The Spelsberg data sheet for product number 30232116 is attached and is the source of the figures above; the sheet itself states that its statements are without guarantee, so confirm any critical value with the current Spelsberg listing. Send the product number, the cable entries needed and the quantity through the quotation form for availability from Seven Star LLC.

Spelsberg enclosures and junction boxes

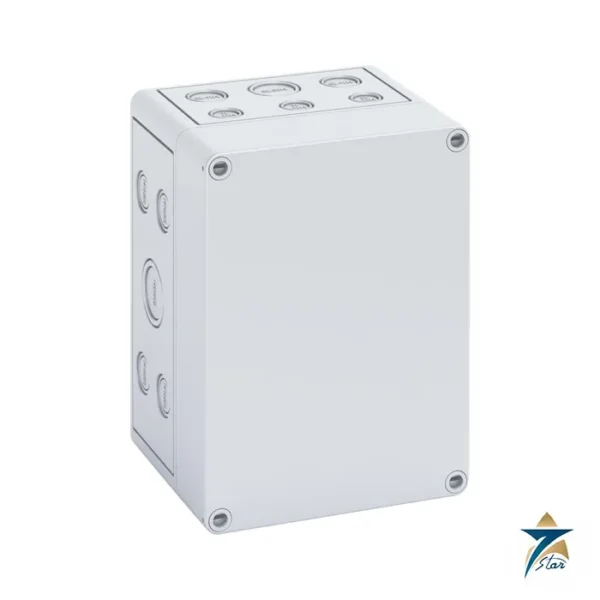

The industrial range includes empty polycarbonate, ABS and polystyrene enclosures of the TK and TG series, the large GEOS-L enclosures up to 40 x 50 cm, Abox junction boxes with terminals, and fire-resistant WKE junction boxes for tunnel applications. The company also offers customizing services such as CNC processing, printing and assembly.
