Normalab CPP Classic Cloud, Pour Point and CFPP Test Cabinet

Cold flow testing in one mobile refrigerated cabinet

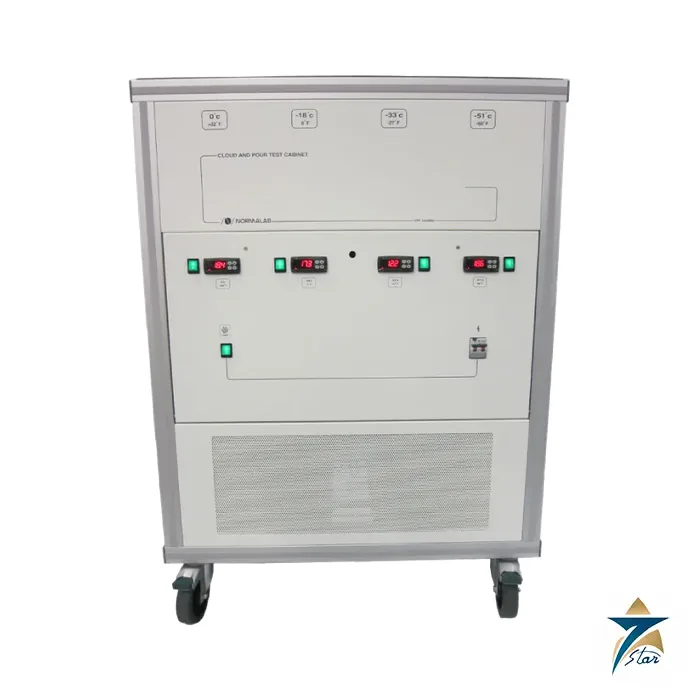

The CPP Classic is a Normalab test cabinet for the cold flow properties of petroleum products: cloud point, pour point and, with the optional kit, cold filter plugging point. Instead of one bath that has to be cooled stage by stage, the cabinet holds four mechanically refrigerated compartments at fixed temperatures of 0, -18, -33 and -51 °C. Each compartment has four wells, giving 16 test positions in total, and the whole unit rolls on four wheels so it can be moved inside the laboratory.

Normalab lists the cabinet for ASTM D97, ASTM D2500, ASTM D6371, IP 15, IP 309, IP 419 and ISO 3015 and 3016 and related methods. The cloud point method covers transparent petroleum products and biodiesel fuels with a cloud point below 49 °C, while the pour point method applies to any petroleum product.

Technical specifications

Supplied items and the CFPP kit

The cabinet is delivered ready to use with four tube holders, sixteen glass test jars (P/N 19439), four ASTM 5C thermometers (P/N 11492), four ASTM 6C thermometers (P/N 11493) and sixteen cork stoppers (P/N 0941400154). The thermometers are supplied without a certificate; calibration is available on request.

Cold filter plugging point testing needs the separate CFPP kit for ASTM D6371 (P/N 941593). It contains a set of two baskets for CFPP tubes, a filter assembly, a clear glass pipette with tip, a test tube, a clamp for the lower joint, one ASTM 5C and one ASTM 6C thermometer and a one metre silicone pipe. A vacuum pump is necessary and is not part of the kit; Normalab references it as P/N 27500.

How the fixed-bath design is used

Pour point and cloud point procedures step the sample through successive bath temperatures, so having 0, -18, -33 and -51 °C permanently ready lets several samples be handled in parallel without waiting for one bath to ramp. This suits diesel, gas oil, lubricating oil and biodiesel laboratories that run a regular batch of cold flow tests, and fuel terminals that check winter-grade product.

Before ordering, confirm which methods are required, whether the CFPP kit and vacuum pump are needed, the thermometer certification you want, the site supply, and that floor space for the 910 x 630 x 1250 mm cabinet and the ethanol fill are available. The cabinet is a laboratory instrument rather than a process unit, so install it in a ventilated room with stable ambient temperature and keep the compartments closed between tests to protect the stated stability. Browse other liquid analytical systems for related laboratory equipment.

Documents and quotation

The Normalab leaflet for the CPP Classic is attached. Send the standards you work to, the number of tests per day, CFPP requirements and delivery location for a quotation; availability and lead time are confirmed before ordering.
