Masoneilan 37002 Model 35 Heavy Duty Actuator Configuration (MiniTork II)

Overview

This page covers one specific configuration of the MiniTork II: the 37002 heavy duty valve fitted with the Model 35 rotating diaphragm spring actuator, as documented in its instruction manual. For the family overview (sizes, body materials, liners, ratings and Cv data) see the Masoneilan 37002 Series MiniTork II Butterfly Control Valves page.

For the standard spring-diaphragm version, see the Masoneilan 37002 with Model 33 actuator.

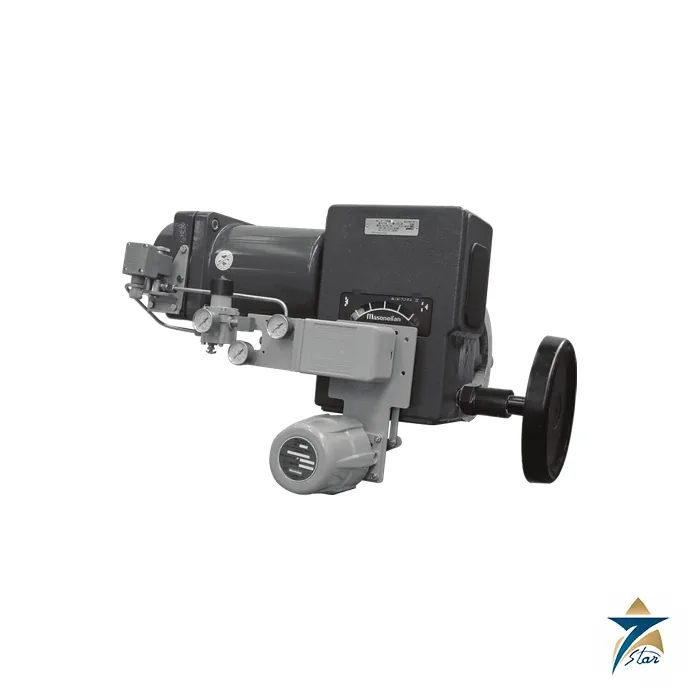

The Masoneilan 37002 Model 35 is the heavy duty version of the MiniTork II butterfly control valve, supplied with the Model 35 rotating diaphragm spring actuator and documented in a Baker Hughes instruction manual (Rev. A). MiniTork is described by Baker Hughes as a compact, flangeless butterfly valve designed to reduce dynamic torque, bending of working parts and play. The Model 35 actuator is available in sizes 7 and 9 and drives the valve through a lever and clevis on the shaft, with an optional handwheel mounted on the opposite side of the yoke.

Seven Star LLC is the trusted supplier for Masoneilan in the Sultanate of Oman and supplies the Masoneilan 37002 Model 35 to utility, water and process customers across the GCC. Our Muscat engineers can confirm valve size, sleeve or no sleeve, valve action and actuator position from the nameplate, and quote the correct parts for an existing Masoneilan 37002 Model 35 so that a plant does not have to wait for a shutdown to find out what is installed.

Principle of Operation of the Masoneilan 37002 Model 35

The disk of the Masoneilan 37002 Model 35 turns on a stainless steel monobloc shaft supported by two bearings in the body and by a ball bearing in the support. The ball bearing takes up the axial thrust that pipeline pressure puts on the shaft and keeps the disk centred. Because the body is symmetrical and the disk has reversed blades, the torque on the shaft is symmetrical and fluid can flow in either direction, which is why the manual calls the design low-torque and low-play.

The rotating diaphragm spring actuator can be mounted in air-to-close mode, so the valve opens on air failure, or in air-to-open mode, so the valve closes on air failure. For each action there are four possible actuator positions, and the standard arrangement is parallel to the pipe for the lowest profile. Moving the actuator, changing the action and reversing the limit stop on the lever are all described step by step in the manual, which is useful when a replacement valve has to fit existing air piping.

Engineering Design of the Masoneilan 37002 Model 35

The long bonnet built into the Masoneilan 37002 Model 35 body gives a large radiant surface that normalises the packing temperature, so a single grade of self-lubricating packing, PTFE fibres braided around a Kevlar core, can be used from -130 degC to +260 degC (-200 degF to +500 degF). The manual warns against insulating the bonnet. Valves with an elastomer sleeve use a hard elastomer sleeve cast on a steel ring, which slips into the body, can withstand negative pressure and high flow rates without a pressure equalising line and needs no bonding to the body.

Standardisation is a practical benefit. Baker Hughes notes that MiniTork valves use standard parts and materials, that emergency repairs can often use parts from any MiniTork of the same size in stock, and that packing and bearings for the same shaft diameter are the same on Camflex, MiniTork and ball valves. The manual lists the 2 to 6 inch disk-and-shaft pin drilling data (a No. 19 drill and a No. 2 taper reamer) and the 8 to 12 inch data (a 1/4 inch drill and a No. 5 reamer), and gives cap screw torques of 4 to 11 daN.m for actuator size 7 and 7 to 10 daN.m for size 9.

Key Features

The following points summarise the strengths of the Masoneilan 37002 Model 35:

• The Masoneilan 37002 Model 35 is a compact flangeless MiniTork II butterfly valve with a heavy duty rotating diaphragm spring actuator.
• The symmetrical body and reversed-blade disk allow flow in either direction with low, symmetrical shaft torque.
• A ball bearing in the support absorbs axial thrust so that the disk stays centred under line pressure.
• Self-lubricating PTFE and Kevlar packing covers -130 degC to +260 degC thanks to the long integral bonnet.
• The elastomer sleeve version withstands negative pressure and high flow rates without a pressure equalising line.
• Four actuator positions are available for each valve action, with the standard position parallel to the pipe.
• Valve action can be changed in the field by repositioning the actuator and the limit stop on the lever.
• Packing and bearings are shared with Camflex and ball valves of the same shaft diameter, which simplifies spares.

Industrial Applications

The Masoneilan 37002 Model 35 is aimed at heavy duty butterfly service: cooling water and seawater headers, desalination and water treatment, fuel and process air lines, and chemical dosing and effluent services in plants near Sohar, Salalah and Duqm. The wide packing temperature range extends use to hot services, and the sleeve version is available for corrosive or abrasive fluids and for vacuum conditions.

In Oman and the GCC, Seven Star LLC supplies the Masoneilan 37002 Model 35 with the wider Masoneilan 37002 Series MiniTork II butterfly control valves and mounted accessories. Sites that need a high performance butterfly design can compare it with the Masoneilan 39005 high performance butterfly valve, and our engineers will recommend whichever suits the pressure class and shutoff requirement.

Technical Specifications

The table summarises the data published for the Masoneilan 37002 Model 35 in the Baker Hughes instruction manual (Rev. A). Torque and flow coefficient data are not given in the manual and should be confirmed with Baker Hughes.

Related Masoneilan instruments include the Masoneilan 8013 electro-pneumatic cam positioner and Masoneilan 4700E/4800E electropneumatic valve positioner.

Request a Quote for Masoneilan 37002 Model 35

To request pricing or technical support for the Masoneilan 37002 Model 35, send a formal RFQ to the Seven Star LLC instrumentation division with the valve size, flange standard, sleeve or unlined body, valve action and the nameplate data of any existing unit. We can check availability and lead time, confirm the numbering and provide the Baker Hughes instruction manual from this page. In Oman and the GCC, Seven Star LLC supplies genuine valves and parts with manufacturer documentation and local engineering support.
