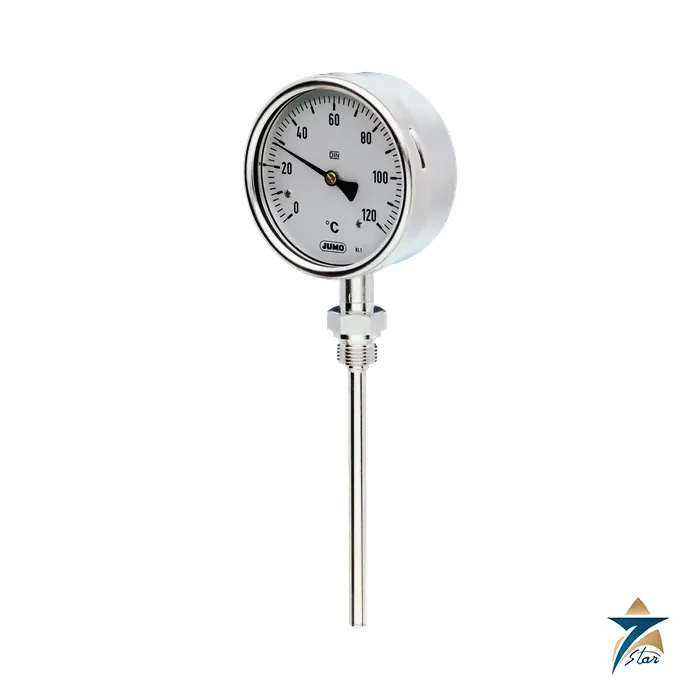

JUMO 608003 Bimetal Dial Thermometer, Chemistry Version

Name: JUMO 608003 Chemistry Bimetal Dial Thermometer | Seven Star LLC
Brand: JUMO
SKU: 608003

Description

Bimetal dial thermometer with bayonet case for chemical and process plants

The JUMO 608003 is the chemistry version of the bimetal dial thermometer. It measures the temperature of liquids and gases and can be installed in pipelines, containers, machines and systems, including outdoors. The measuring system is a bimetal coil, so the pointer moves mechanically and no supply voltage is needed.

The case is stainless steel with a bayonet fastener in 1.4301 (304), the front pane is glass and the scale is polished aluminum with black labelling. Standard protection is IP65, which falls to IP54 when the drag indicator is fitted. The dial is read on a linear scale and the data sheet lists accuracy class 1.

A further feature is an Ex marking. The type carries ATEX and UKEX marking II 2 G Ex h IIC T6-T1 Gb and II 2 D Ex h IIIC T80°C-T450°C Db when extra code 601 (Ex h protection according to directive 2014/34/EU) is ordered. Certificates for approved device versions are available for download on the manufacturer website.

Pressure compensation (extra code 746) is a useful option where the case sits in an environment with large temperature swings, because it limits the build-up of pressure differences inside the sealed housing.

Technical specifications

Parameter	Specification
Type	608003; 608003/0110 and 1010 (100 mm), 608003/0116 and 1016 (160 mm)
Design types	Design 01 and design 10, each with 100 mm or 160 mm case
Measuring system	Bimetal coil; no auxiliary power
Accuracy	Class 1; linear scale, black labelling
Display ranges	-50 to +50 °C, -20 to +120 °C, 0 to 80, 100, 120, 160, 200, 250, 300 and 0 to 500 °C
Tolerance	+/-1.0 K to +/-5.0 K depending on the display range, stated for the narrower measuring range
Ex marking (code 601)	ATEX/UKEX II 2 G Ex h IIC T6-T1 Gb; II 2 D Ex h IIIC T80°C-T450°C Db
Protection type	IP65 (DIN EN 60529); IP54 with drag indicator
Case	Stainless steel 1.4301 (304) with bayonet fastener; glass pane; PC pane with drag indicator
Time constant	Approx. 20 s in moving water with a 10 mm stainless steel probe
Ambient temperature	Storage and transport -30 to +80 °C; no ambient temperature influence on the reading
Process connection	TA 01, TA 02, TA 03, TA 04, TA 06 and SH 04, SH 05, SH 07, SH 09; G 3/8, G 1/2, G 3/4, 1/2-14 NPT; CrNi 1.4571
Insertion length	100, 150 or 200 mm

Order code and extra codes

The order code consists of the basic type, display range, process connection, diameter, thread, process connection material, insertion length and extra code. An example from the data sheet is 608003/0110-810-010-10-104-26-100/000. Probe diameters of 6, 10, 12, 14 and 17 mm are available depending on the connection, and the details of each connection are described in data sheet 608730.

Extra codes include 409 (polished housing and front ring), 434 (drag indicator adjustable with a screwdriver and protected by a cover), 522 (customized scale), 601 (Ex h protection according to directive 2014/34/EU) and 746 (pressure compensation element). Specify all extra codes in sequence, separated by commas.

The 160 mm dial is the right choice when readings are taken from walkways or platforms, while the 100 mm case saves space on skids and small machines. The scale polished aluminum plate has black labelling and can be customized with extra code 522 if you want a specific unit, tag or marked operating band printed on the dial.

Check the table of display and measuring ranges before you choose the code. For example, a 0 to 250 °C display range has a stated measuring range of 30 to 220 °C with a tolerance of 2.5 K, and a 0 to 500 °C range uses 50 to 450 °C with 5.0 K. Operating inside the measuring range is what keeps the reading within the stated class.

Where it fits

The data sheet lists mechanical engineering, process industry, gear and gearbox construction, chemical plants and plant engineering. The bayonet case with a larger 160 mm option makes the dial easy to read on tall vessels and long pipe runs.

Because the reading is mechanical and insensitive to ambient temperature, it is a practical local indicator in zones where electronic indicators would need protection. If the application is in a hazardous area, confirm the zone, gas group and temperature class with the Ex marking before you order, and add extra code 601.

Typical installations are reactor jackets, solvent lines, heating loops, gearbox oil circuits and process skids. Ask for the process connection that matches your pipe or vessel, such as a weld-in tube (SH 09) for a fixed process line or a threaded tube (SH 04) for a service point.

The drag indicator option (extra code 434) records the highest temperature reached and is set with a screwdriver under a protective cover. Remember that fitting it changes the protection type from IP65 to IP54, so plan the location accordingly.

Documents and quotation

For engineering details, open the attached PDF (JUMO 608003 data sheet (EN, 7 pages)). When you are ready to buy, submit the order code and project requirements through the request form, and our team will confirm what can be supplied and when. Browse the category Temperature Instrumentation for alternatives.
