JUMO eTRON M Electronic Microstat 76 x 36 mm with Defrost Function, Type 701060

Name: JUMO eTRON M Electronic Microstat 701060 | Seven Star LLC
Brand: JUMO
SKU: eTRON M

Description

A panel-mounted microstat with defrost cycle and compressor hours counter

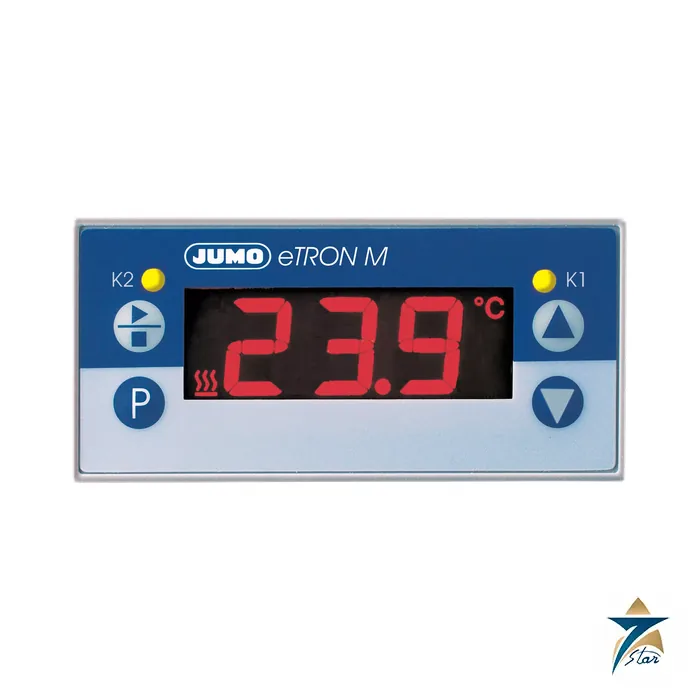

The JUMO eTRON M (type 701060) is a digital electronic thermostat in a 76 x 36 mm panel format, designed for straightforward heating or cooling control. Its measurement input takes resistance thermometers, thermocouples, or standard current and voltage signals. A 3-digit backlit segment display, 13 mm high, shows the value together with symbols for the temperature unit, hours, minutes, seconds, defrosting and heating, and two LEDs report the state of relays K1 and K2.

What sets the microstat apart from a plain thermostat is its simple defrosting function and an operating hours counter, which JUMO suggests using to record the running time of a cooling compressor. Four front keys operate the device, a start-stop key triggers the timing functions, and wiring uses screw terminals on the back. A time-delayed switch-on after power-up can be selected for staggered starting, and the parameter level is code-protected.

Technical specifications

Parameter	Specification
Type	701060 / …, JUMO eTRON M, 76 x 36 mm
Display	3-digit segment display, 13 mm high, red backlighting, symbols for degC/degF, h, min, s, defrost, heating
Operation	4 keys, including start-stop key
Pt100 / Pt1000	-200 to +600 degC, 0.1 %, short-circuit and break detected
KTY2X-6	-50 to +150 degC, 1 %
Resistance input	0 to 3000 ohm with customer table
Thermocouples	Fe-Con J and NiCr-Ni K -200 to +999 degC; Fe-Con L -200 to +900 degC; accuracy 0.4 %
Current / voltage	0(4) to 20 mA; 0 to 10 V; accuracy 0.1 %, scalable or customer table
Sampling / filter	250 ms; first-order filter 0.1 to 99.9 s
Output, version 1	1 changeover relay, 10 A at 250 V AC, 150,000 operations
Output, version 2	2 make-contact relays, 5 A at 250 V AC, 100,000 operations
Supply	230 V AC or 115 V AC +10/-15 %; or 12 to 24 V DC / 24 V AC +/-15 %
Power consumption	Below 3 VA
Ambient temperature	0 to +50 degC; 0 to +40 degC side by side
Protection	Front IP65, rear IP20
Housing	Polycarbonate, UL 94 V0, approx. 160 g
Connection	Screw terminals, 4 mm2 solid or 2.5 mm2 stranded wire
Approval	UL via approval code 061

Ordering the eTRON M: relays, input group and supply

Order code: 701060 / version-input-relays – supply – approval; the example given is 701060 / 811 – 02 – 061. Version 8 is factory-set and configurable within the chosen input group, version 9 is configured to customer specification. Choose one input group: 1 for Pt100 or Pt1000 in 2-wire plus KTY2X-6, 2 for Fe-Con J, Fe-Con L and NiCr-Ni K, 3 for 0 to 20 mA and 4 to 20 mA, 4 for 0 to 10 V. Groups cannot be changed after delivery.

Digit	Option
Relays 1	One changeover contact, 10 A / 250 V
Relays 2	Two make contacts, 5 A / 250 V
Supply 02	230 V AC
Supply 05	115 V AC
Supply 31	12 to 24 V DC or 24 V AC
Approval 061	Underwriters Laboratories (UL)

The multilingual setup program and the PC interface (TTL/RS232C converter with adapter) are accessories. JUMO lists several of its push-in and screw-in resistance thermometers and thermocouple data sheets as suitable transducers.

Defrost, timing and mounting remarks

The defrosting function and hours counter make the microstat practical for small refrigeration cabinets and cold rooms: the counter can log how long a compressor has run, and the defrost symbol appears on the display during the cycle. Heating or cooling action, limit monitoring and an adjustable switching hysteresis are configurable, and an offset of -99.9 to +99.9 can correct the displayed value.

Sensor and lead resistance together must stay below 320 ohm for Pt100 and 3200 ohm for Pt1000, KTY2X-6 or resistance inputs. With supply code 31 the measurement input and supply are not isolated from each other, so the sensor wiring must be treated accordingly. The unit is built for panel mounting with a bezel seal and may be installed in any operating position. Clean the front panel with usual cleaning agents but avoid methylated spirit, white spirit and xylene. Customer linearization with up to 20 value pairs is loaded from the setup program.

Wiring and protection data are worth noting before specifying the unit. Screw terminals accept 4 mm2 solid or 2.5 mm2 stranded wire, data are saved in EEPROM, and the electrical safety follows EN 61010 part 1 with overvoltage category III. With side-by-side mounting the ambient limit drops from +50 to +40 degC. Probe short-circuit and break detection is available for Pt100, Pt1000 and KTY2X-6 inputs, and probe break for thermocouples. Measurement input and supply are isolated from each other on the 115 V and 230 V versions but not on the 12 to 24 V DC and 24 V AC version.

Documents and quotation

The JUMO data sheet 70.1060 (issue 02.07) can be downloaded below. Seven Star LLC supplies JUMO products from Muscat; give us the input group, relay version, supply voltage and approval to receive a quote. More thermostats and sensors are collected under https://omansevenstar.com/product-category/sensors-transmitters/temperature/.
