Brand: JUMO

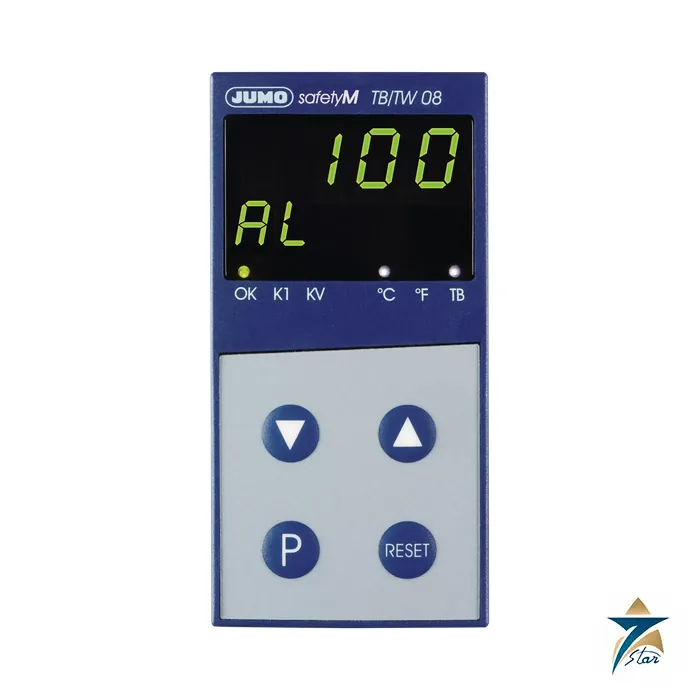

JUMO safetyM TB/TW 08 Panel-Mount Temperature Limiter, Type 701170

Name: JUMO safetyM TB/TW 08 Temperature Limiter | Seven Star LLC
Brand: JUMO
SKU: safetyM TB/TW 08

Description

Panel-mounted temperature limiter and monitor for protecting thermal processes

The JUMO safetyM TB/TW 08 (type 701170) is a freely programmable temperature limiter and monitor that sits in a 48 x 96 mm panel cut-out. When the process value passes the set limit, the internal relay, which carries a built-in 3.15 AT fuse cut-out, drops the plant into a safe state, the green OK lamp goes out and the red K1 lamp lights.

The same hardware works as a limiter (TB), which needs a manual Reset press after the process has returned to the valid range, or as a monitor (TW), which resets by itself. A second relay, KV, can announce a pre-alarm before the limit is reached, either as an absolute value or as a distance from the limit. The input is configured for RTD probes, thermocouples, current or voltage signals, so one device type covers many furnace, oven and heating-circuit designs.

Because all configuration lives in software, one stocked unit can be set for a type K thermocouple on a furnace today and a Pt100 on a heating loop tomorrow. Internal and external unlocking, a keypad inhibit and a level inhibit prevent unwanted changes once the limit has been commissioned, and the display can be switched to degrees Fahrenheit.

Technical specifications

Parameter	Specification
Type / standard	701170; temperature limiter/monitor as per DIN EN 14597
RTD inputs	Pt100 and Pt1000 (DIN EN 60751) -200 to +850 °C, accuracy 0.1 %; KTY11-6 PTC -50 to +150 °C, 1 %; 2-wire or 3-wire circuit
Differential option	2 x Pt100 for differential value calculation (no lead compensation)
Thermocouples	L -200 to +900 °C; J -200 to +1200 °C; U -200 to +600 °C; T -200 to +400 °C; K -200 to +1372 °C; N -100 to +1300 °C; S and R 0 to +1768 °C; B 300 to 1820 °C; D 0 to 2495 °C; accuracy 0.4 %; internal Pt100 cold junction, +/-1 K
Current / voltage inputs	0(4) to 20 mA, drop below 2 V, 0.2 %; 0(2) to 10 V, input resistance above 100 kOhm, 0.1 %; free scaling
Detection rate / filter	210 ms (420 ms with double thermocouples); digital filter 2nd order, 0 to 100 s
Relay K1 (limit)	Changeover contact with internal 3.15 AT fuse cut-out; 100,000 operations at AC 230 V, 3 A (0.5 A inductive)
Relay KV (pre-alarm)	Make contact, AC 230 V, 3 A; no contact protection
Analog output (option)	0/4 to 20 mA (load up to 500 Ohm) or 0/2 to 10 V (load at least 500 Ohm); accuracy up to 0.5 %
Binary input	Potential-free contact: reset, keypad inhibit or level inhibit
Supply	AC 110 to 240 V +10 %/-15 %, 48 to 63 Hz, or AC/DC 20 to 30 V, 48 to 63 Hz; below 15 VA
Approvals as printed	DIN CERTCO TW/TB 1219 (DIN EN 14597); UL file 20110523-E325456 (UL 60730-2-9)
Safety data	Overvoltage category III, pollution degree 2; test voltage 3.7 kV, 50 Hz; protection class I with SELV separation
Ambient / storage	0 to +55 °C / -30 to +70 °C; 85 % relative humidity without condensation
Housing	Polycarbonate, UL 94 V0; panel mounting per DIN IEC 61554; cut-out 45 x 92 mm; plug-type screw terminals up to 2.5 mm2
Protection / weight	IP65 at the front, IP20 at the rear; approx. 175 g

Choosing limiter or monitor behavior and the supply version

The device has no fixed personality: limiter or monitor, inverse or direct switching, input type and range are all set in software through the setup interface. The data sheet lists four stock versions with order codes such as 701170/8-0153-1001-25/005.00, which differ in supply voltage and the analog-output extra code. Confirm which supply (110 to 240 V or 20 to 30 V AC/DC) and which analog output you need before ordering.

For DIN-tested installations the data sheet lists matching probes. These are 902006 RTD probes and 901006 thermocouples for air, water and oil. Because the response accuracy is high, the sheet states that thermowells are not admissible with the air-type probes, and that only the supplied thermowells may be used with the weld-in probe types.

Wiring is simple: plug-type screw terminals on the rear, a single binary input for reset or lock functions, and a setup interface on the front for the PC adapter. The data sheet lists three accessory items: the multilingual setup program (70/00548543), a TTL/RS232C PC interface (70/00350260) and a USB/TTL PC interface (70/00456352), plus the external unlocking button RT (70/97097865).

Installation notes and typical uses

Mount the device vertically in a panel with a 45 x 92 mm opening; the IP65 rating applies only at the front, so keep terminals and wiring inside the cabinet. Wire the plug terminals with up to 2.5 mm2 single wire or 1.5 mm2 fine-strand wire with ferrules. For two-wire RTD connections over long leads, the lead resistance can be entered in the extended configuration.

Typical jobs are over-temperature protection of electric heaters, ovens and heat-treatment furnaces, fluid heaters in oil-and-gas skids, and drying and curing lines where a second, independent channel must cut the heating. In hot sites such as Oman, remember the 0 to +55 °C ambient limit when the panel sits in direct sun or a non-air-conditioned shelter.

When specifying the device, remember what the limit relay protects: the data sheet states clearances of at least 6 mm and creepage distances of at least 8 mm between mains, relay and the electronics. Include the delivery scope in the order: the device comes with seal, fastening elements and operating manual B701170.0.

Documents and quotation

This page carries the manufacturer PDF (JUMO safetyM TB/TW 08 data sheet 701170 (EN)) for checking dimensions and order codes. Use the quotation form to name the exact variant, options and delivery address, and we will answer with supply information. See also Temperature Instrumentation for similar instruments.

Datasheets & Documents

Datasheet JUMO safetyM TB/TW 08 data sheet 701170 (EN) Download
