JUMO dicoTEMP 800 Dial Thermometer with Microswitch

Name: JUMO dicoTEMP 800 Dial Thermometer with Switch | Seven Star LLC
Brand: JUMO
SKU: dicoTEMP 800

Description

Panel-mount dial thermometer with setpoint microswitch

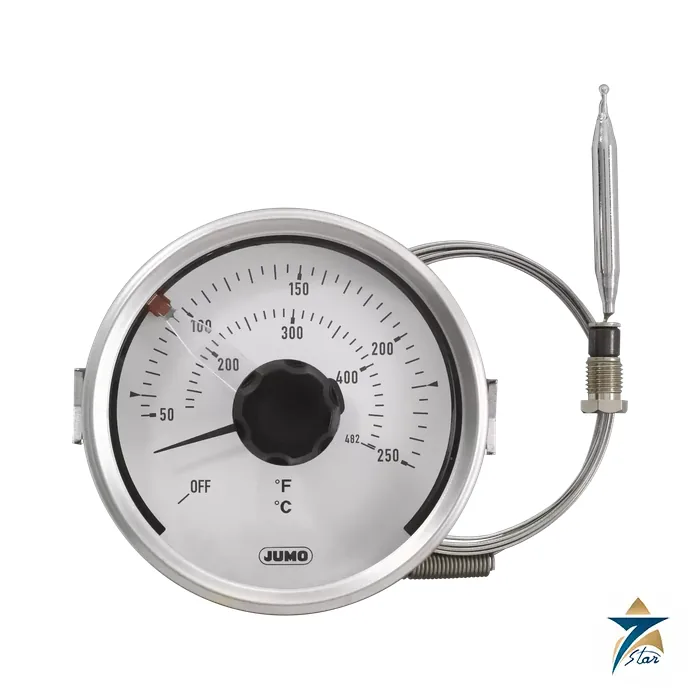

The JUMO dicoTEMP 800 (type 608530) is a dial thermometer with a microswitch, used as a universal temperature controller with an actual value display. It is intended for panel mounting, has a stainless steel case and offers a low mounting depth. The operator sees the actual temperature on the dial and sets the switching point with a setpoint adjuster in the front pane.

The measuring system works on a volume change in a liquid-filled system or a pressure change in a gas-filled system. A bourdon tube turns that change into a rotation of the pointer without any transmission gear, and the rotation of the indicator shaft actuates the microswitch through a tap system. The series is RoHS-compliant and cadmium-free.

Two case sizes and two design types are listed, 608530/2060 and 2080 plus 2160 and 2180, with case diameters of 60 mm or 80 mm. The scale is white with black lettering, the front pane is acrylic glass and the chassis is die-cast.

The setpoint is adjusted by a pointer in the front pane, so no tools are needed to change the switching temperature. Dimensions are listed for panel cut-outs of 62 mm for the 60 mm case and 82 mm for the 80 mm case, with a rear terminal compartment for the electrical connection.

Technical specifications

Parameter	Specification
Type	608530, JUMO dicoTEMP 800; basic type extensions 2060, 2080, 2160, 2180
Case size	60 mm or 80 mm diameter; stainless steel 1.4301 housing and front panel
Accuracy	Class 1.5 according to DIN EN 13190
Display ranges	0 to 120 °C, 0 to 250 °C, 50 to 250 °C, 50 to 300 °C (family range -50 to +500 °C)
Tolerance	3 K (0 to 120 °C), 5 K (0 to 250 °C), 4 K (50 to 250 °C), 5 K (50 to 300 °C) in the measuring range
Contact	Single-pole microswitch with mechanically actuated changeover contact (output SA20)
Switching capacity	AC 230 V, 5(1.5) A standard or 10(3) A optional; AC/DC 24 V, 0.1 A version (code 11)
Switching differential	About 1.5 % of display range (standard); 1.5 to 3 % (optional)
Switching point accuracy	+/-0.5 % of display range at the switch-off point with rising temperature
Protection type	Front IP54, rear IP00 (DIN EN 60529)
Ambient / storage	-30 to +70 °C for transport, storage and operation
Electrical connection	Screw terminals, conductor cross-section up to 2.5 mm2; pollution degree 2, overvoltage category II
Weight	Approx. 350 g

How to specify the switching version

Pick a display range so that the switching setpoint lies in the middle part of the scale, then select the contact rating. The microswitch must be fused accordingly, and for maximum switching reliability the data sheet recommends a minimum of 24 V and 100 mA on the contact.

The capillary choice depends on the medium: FL17 stainless steel capillary of about 1.5 mm, FL21 copper capillary of about 1.0 mm, or FL22 stainless steel capillary of about 1 mm, each in 1000 mm or 2000 mm. The process connection is either TF01, a temperature probe with a stepped support tube, or TA25, a displaceable threaded fitting on the capillary. The probe diameter is 6 or 8 mm with G 3/8 or G 1/2 thread, in CrNi 1.4571 or copper and brass.

Liquid fill suits display ranges up to 350 °C and gas fill suits ranges from 400 °C upward. With liquid fill the time constant is about 12 seconds in water for a 6 mm copper probe, and with gas fill about 4 seconds in oil for a 10 mm stainless probe.

Design types 20 and 21 differ in the way the case sits behind the panel, so check the mounting depth drawings in the data sheet before you decide. The device must be wired from an electrical circuit that meets the requirements of limited-energy circuits according to DIN EN 61010-1, and the cable cross-section may be up to 2.5 mm2 at the screw terminals.

Where it is used

A panel-mounted dial thermometer with a switch is a simple way to watch and limit temperature on boilers, heating circuits, ovens, machine oil systems and small process plant when a full electronic controller is not needed. The microswitch can drive a contactor, a signal lamp or a valve within its rating.

The reading is affected by the ambient temperature at the case, by 0.15 % of the display range per kelvin on liquid-filled devices and 0.05 % on gas-filled ones, and a higher ambient temperature gives a higher display and a lower switching point. Keep the housing in a stable ambient and use the bend protecting spring on capillary and probe.

Typical use is a front-panel thermometer with a basic high or low temperature alarm contact, for example on a boiler cabinet or a heating distribution panel. Where a fail-safe limiter is required, compare it with the JUMO safety temperature limiters before you decide, because a dial thermometer switch is a control device and not a certified safety limiter.

After mounting, fit the bend protecting spring on the housing and on the probe so the capillary is not kinked. Do not shorten or coil the capillary beyond the instructions in the operating manual, because the measuring system volume affects the reading.
