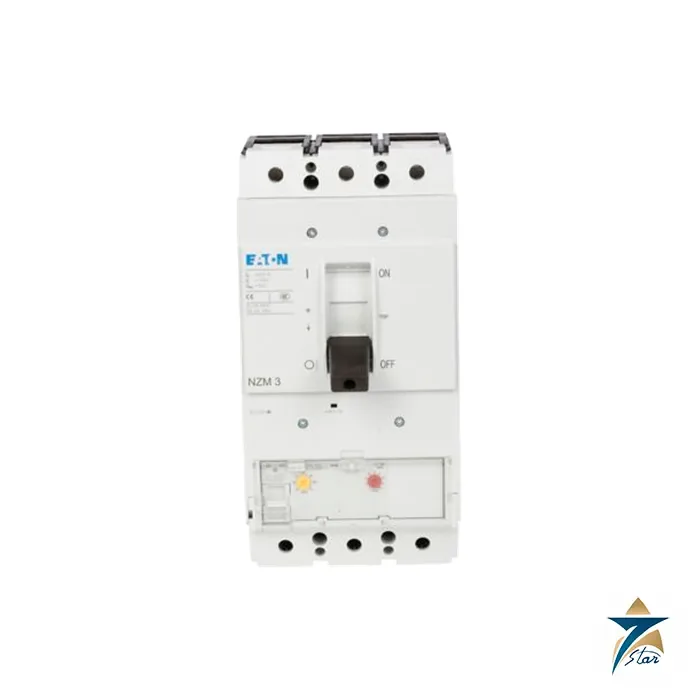

Eaton NZMN3-AE400 Molded Case Circuit Breaker

Overview

The Eaton NZMN3-AE400 is an electronic-trip molded case circuit breaker (MCCB) from Eaton’s Moeller series NZM range, built on the larger N3 frame and rated for a maximum continuous current of 400A at up to 690V AC. Where the smaller N1 and N2 frames serve distribution boards and mid-size motor feeders, the N3 frame is Eaton’s platform for main incomer protection, generator output breakers, and heavy feeder circuits in industrial plants, commercial buildings, and utility substations where higher fault-current withstand and interrupting capacity are required.

In Oman and the GCC, Seven Star LLC supplies the Eaton NZMN3-AE400 molded case circuit breaker across Oman and the wider GCC, with manufacturer documentation and locally available technical support for panel builders, contractors, and facility electrical teams.

Operating Principle

The Eaton NZMN3-AE400 uses a fully electronic trip unit that continuously samples true RMS current across all poles, comparing it against field-configurable long-time (overload), short-time (selective short-circuit), and instantaneous protection curves. On the larger N3 frame, the breaker’s stored-energy trip mechanism is sized to interrupt substantially higher prospective fault currents than the N1/N2 frames, making it suitable for installation closer to the utility supply point or generator terminals where available fault current is highest, a role for which the Eaton NZMN3-AE400 is specifically rated.

Because the AE400’s electronic trip settings are field-adjustable, engineers can tune the long-time pickup, short-time delay, and instantaneous override to achieve selective discrimination with downstream N1 and N2-frame breakers – ensuring that a fault on a sub-circuit trips only the local breaker rather than the main incomer. This selective coordination is essential in facilities where an unplanned full-site outage carries significant cost, such as data centers, hospitals, and continuous-process plants.

Engineering Design of the Eaton NZMN3-AE400

The Eaton NZMN3-AE400 is built on Eaton’s N3 frame, a robust molded-case housing sized for higher current and fault-withstand ratings while still accepting the same family of front-mounted accessories used across the NZM range – auxiliary and alarm contacts, shunt trip and undervoltage releases, and motor operators for remote or automated switching. The breaker supports both fixed and draw-out mounting, with front or rear vertical/horizontal busbar terminal options to suit main-incomer switchboard layouts.

Certification to IEC 60947-2 and CE marking confirm suitability for use in type-tested low-voltage switchgear assemblies, and the electronic trip unit on the AE400 variant supports Modbus communication for remote metering, trip-status monitoring, and event logging – a capability increasingly specified for main incomer breakers feeding critical loads where continuous power-quality visibility is required.

Key Features

The Eaton NZMN3-AE400 delivers robust main-incomer and heavy-feeder protection for demanding installations:

• 400A rated current on the larger N3 frame, sized for main incomers, generator protection, and heavy industrial feeders.
• Rated operational voltage up to 690V AC with high breaking-capacity variants for installations close to the utility supply point.
• Fully electronic trip unit with field-adjustable long-time, short-time, and instantaneous settings for precise selective coordination.
• Modular accessory system shared across the NZM range supports auxiliary contacts, shunt trip, undervoltage release, and motorized operation.
• Modbus-capable electronic trip variant enables remote metering and trip-status visibility for SCADA and power-monitoring integration.
• Fixed or draw-out mounting with front or rear busbar terminal options for flexible main-switchboard integration.
• IEC 60947-2 and CE certified construction for use in type-tested low-voltage switchgear assemblies.
• Common accessory and settings architecture with the smaller N1/N2 frames simplifies spares holding and maintenance training.

Industrial Applications

The Eaton NZMN3-AE400 is specified as a main incomer or generator-output breaker in industrial facilities, commercial towers, and utility substations across Oman where higher available fault current demands a larger-frame device, including desalination plants, district cooling central plants, and hospitality and hospital complex switchrooms in Muscat and the wider Sultanate. Its selective-coordination capability with smaller NZM-frame breakers makes it a common specification on projects requiring a documented discrimination study between the main board and downstream distribution. Facility engineers commissioning new low-voltage rooms in Oman increasingly specify the Modbus-capable electronic trip variant so that main-incomer load, power quality, and trip history are visible from the same building management or SCADA platform used to monitor generators, chillers, and distribution transformers on site.

In Oman and the GCC, Seven Star LLC supplies the NZMN3-AE400 to electrical contractors, panel builders, and industrial end users across the Sohar and Salalah economic zones and the wider GCC, supporting both new low-voltage switchgear builds and the retrofit of aging main-incomer protection in existing facilities.

Technical Specifications

The table below summarizes the key ratings for the Eaton NZMN3-AE400 molded case circuit breaker, which specifiers should confirm against the required fault level and coordination study:

Request a Quote for Eaton NZMN3-AE400

Seven Star LLC invites panel builders, electrical contractors, and facility engineering teams across Oman and the GCC to submit a formal RFQ for the Eaton NZMN3-AE400 molded case circuit breaker. In Oman and the GCC, Seven Star LLC supplies on request with lead time confirmed at quotation, provides the full NZMN3-AE400 technical datasheet on request, and connects customers directly with the instrumentation and switchgear division for main-incomer sizing and selective-coordination support.

Browse the full Eaton range or see more Circuit Breaker products supplied by Seven Star LLC in Oman and the GCC.
