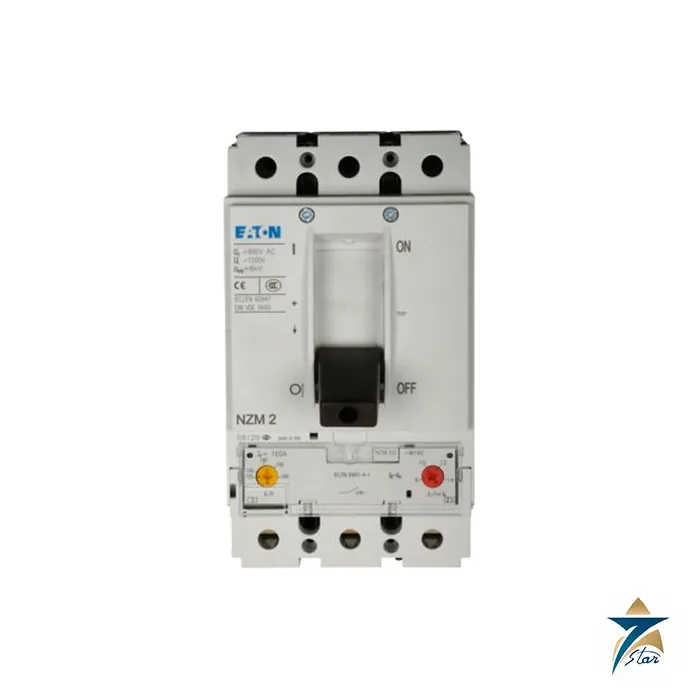

Eaton NZMN2-A250 Molded Case Circuit Breaker

Overview

The Eaton NZMN2-A250 is an electronic-trip molded case circuit breaker (MCCB) from Eaton’s Moeller series NZM range, built on the N2 frame size and rated for a maximum continuous current of 250A at up to 690V AC. As part of the NZM platform – a modular MCCB architecture spanning frame sizes N1 through N3 with ratings from 12.5A up to 1600A – the NZMN2-A250 fills the mid-range gap between smaller distribution breakers and the larger frame sizes used for main incomers, making it a common choice for motor feeders, sub-distribution boards, and generator protection in industrial and commercial installations.

In Oman and the GCC, Seven Star LLC supplies the Eaton NZMN2-A250 molded case circuit breaker across Oman and the wider GCC, with manufacturer documentation and locally available technical support for panel builders, contractors, and plant maintenance teams.

Operating Principle

The Eaton NZMN2-A250 combines a fixed thermal-magnetic or fully electronic trip unit (depending on ordering variant) with a three- or four-pole switching mechanism rated for both manual isolation and automatic protective tripping. The electronic trip unit continuously monitors true RMS current on each phase, comparing it against configurable long-time (overload), short-time (selective short-circuit), and instantaneous trip curves. When measured current exceeds the programmed threshold for the corresponding time band, the trip unit commands the breaker’s stored-energy mechanism to open all poles simultaneously within milliseconds, isolating the fault before downstream cabling, motors, or switchgear sustain damage.

Because the trip thresholds and time delays are field-adjustable via rotary dials or, on the electronic version, digital settings, the NZMN2-A250 can be coordinated precisely with upstream and downstream protective devices to achieve selective discrimination – ensuring that only the breaker closest to a fault opens, rather than tripping an entire distribution board and interrupting supply to healthy, unrelated circuits. The result is a protective device that isolates faults quickly while keeping unaffected circuits energized, minimizing unplanned downtime across a facility.

Engineering Design of the Eaton NZMN2-A250

The Eaton NZMN2-A250 is built on Eaton’s N2 frame, a compact molded-case housing that accepts front-panel accessories such as auxiliary contacts, shunt trip and undervoltage releases, motor operators, and rotary handle mechanisms without changing the base breaker footprint. The switching mechanism uses a toggle-style ON/OFF/TRIPPED handle with clear trip-flag indication, and the draw-out or fixed mounting options allow integration into standard Eaton NZM panel systems or third-party switchboards using adapter kits.

Terminal connections accept front busbar or rear vertical/horizontal busbar connections depending on the mounting orientation, and the breaker carries CE, IEC 60947-2, and relevant international type-test certification for use in industrial switchgear assemblies. Communication-capable electronic trip variants can additionally output metering data and trip status over Modbus for integration into a plant’s power monitoring or SCADA system.

Key Features

The Eaton NZMN2-A250 delivers dependable mid-range circuit protection with the flexibility panel builders need:

• 250A rated current on the compact N2 frame, bridging the gap between small distribution breakers and large main-incomer frames.
• Rated operational voltage up to 690V AC and rated insulation voltage up to 1000V, suitable for both standard 415V and higher-voltage industrial distribution.
• Field-adjustable long-time, short-time, and instantaneous trip settings enable precise selective coordination with upstream and downstream devices.
• Modular accessory system supports auxiliary/alarm contacts, shunt trip, undervoltage release, and motorized operation without a different breaker body.
• High breaking capacity variants are available for applications requiring elevated short-circuit withstand and interrupting ratings.
• Compact N2 frame footprint saves panel space compared with equivalent-rated breakers on larger frames.
• CE and IEC 60947-2 compliant construction suits both new-build panels and retrofit replacement of aging switchgear.
• Optional Modbus-capable electronic trip unit provides remote metering and trip-status visibility for SCADA integration.

Industrial Applications

The Eaton NZMN2-A250 is widely specified for motor feeder protection, sub-distribution board incomers, and standby generator output protection across manufacturing plants, desalination and RO water treatment facilities, and district cooling plants throughout Oman, where reliable mid-range fault protection is required without the panel footprint of a larger frame breaker. Its field-adjustable trip settings also make it a preferred choice for retrofit projects replacing older thermal-magnetic breakers with a device capable of proper selective coordination studies.

In Oman and the GCC, Seven Star LLC supplies the NZMN2-A250 to electrical contractors, panel builders, and industrial end users across the Sohar and Salalah economic zones and the wider GCC, supporting both new-build low-voltage switchgear and the ongoing maintenance of installed Eaton Moeller NZM distribution systems.

Technical Specifications

The table below summarizes the key ratings buyers should confirm when specifying the Eaton NZMN2-A250 molded case circuit breaker for a given feeder or distribution application:

Request a Quote for Eaton NZMN2-A250

Seven Star LLC invites panel builders, electrical contractors, and plant maintenance teams across Oman and the GCC to submit a formal RFQ for the Eaton NZMN2-A250 molded case circuit breaker. In Oman and the GCC, Seven Star LLC supplies on request with lead time confirmed at quotation, provides the full NZMN2-A250 technical datasheet on request, and connects customers directly with the instrumentation and switchgear division for selective-coordination sizing and panel-integration support.
