Brand: Dakota NDT

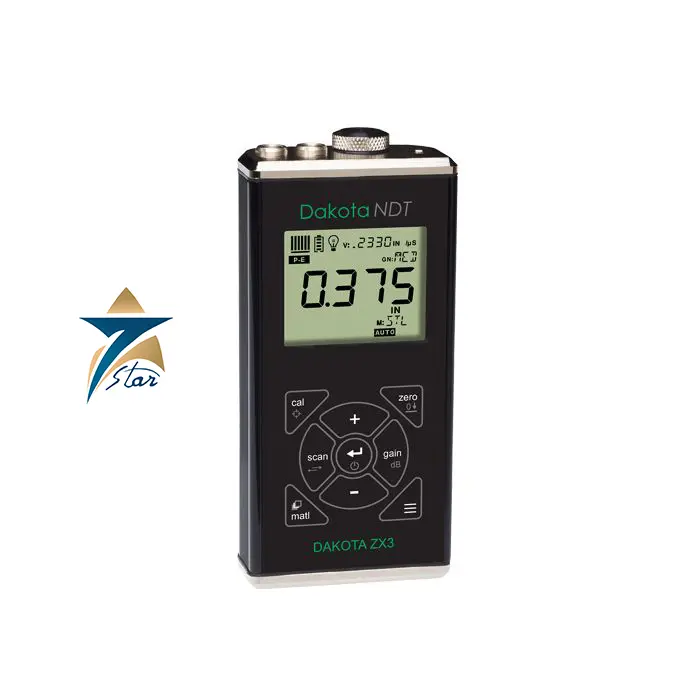

Dakota ZX3 Corrosion Thickness Gauge
Description
Overview
The Dakota ZX3 Corrosion Thickness Gauge is a versatile ultrasonic thickness gauge developed for corrosion inspection and wall thickness measurement across a wide range of industrial applications. The ZX3 is a dual-element pulse-echo gauge with straightforward operation, making it suitable for maintenance teams and inspection personnel who require reliable results without complex configuration.
The ZX3 is factory calibrated and designed for handheld field use in demanding industrial environments. Its rugged extruded aluminum housing protects the instrument from mechanical damage, while the high-contrast LCD display ensures clear visibility of readings in both indoor and outdoor conditions. The intuitive keypad layout allows operators to perform inspections efficiently with minimal training.
Technical Features & Specifications
The Dakota ZX3 uses ultrasonic pulse-echo technology to measure material thickness by transmitting an ultrasonic signal through the test material and analyzing the reflected echo. This method provides accurate and repeatable thickness readings on steel and other common engineering materials when appropriate coupling conditions are maintained. The ZX3 measures from 0.025 to 36.00 in (0.63 to 914.4 mm), depending on material and transducer, making it suitable for both thin-wall and thicker components encountered in industrial service.
The instrument displays readings in inches or millimetres and allows basic calibration adjustment to accommodate variations in material properties and transducer selection. Powered by standard AA batteries, the ZX3 delivers long operating life for extended inspection campaigns. Its stable electronic design and durable mechanical construction ensure consistent performance in harsh inspection environments.
Industrial Applications
The Dakota ZX3 Corrosion Thickness Gauge is widely used for corrosion monitoring of pipelines, tubing, and pressure vessels. Typical applications include wall thickness inspection of storage tanks, inspection of structural steel components, maintenance checks in oil and gas facilities, thickness verification in power generation plants, and inspection of industrial piping systems in water and wastewater treatment plants. It is also suitable for general NDT inspections where dependable ultrasonic thickness measurement is required.
Installation & Use Notes
Accurate measurements require the use of an appropriate ultrasonic couplant to ensure proper acoustic coupling between the transducer and the test surface. The ZX3 performs best on clean, uncoated, or lightly coated materials, and basic surface preparation improves repeatability. The instrument is designed for spot measurements rather than advanced data logging or automated inspection systems and is compatible with standard Dakota NDT ultrasonic transducers.
Also available: Dakota Dual Element Transducers for Corrosion Thickness Gauges
Request a Quote for Dakota ZX3 Corrosion Thickness Gauge
For technical selection, application support, or quotations, contact Seven Star LLC for supply and support across Oman and the Middle East.
Technical Overview
The Dakota ZX3 is an ultrasonic thickness gauge used for corrosion monitoring and general material thickness measurement. Per Dakota Ultrasonics’ official operation manual, the ZX3 measures material thickness using dual-element delay-line transducers, achieving accuracy up to 0.001 in. (0.01 mm). The instrument supports a range of dual-element probe frequencies and diameters to suit different measurement needs: 1–5 MHz probes for castings, 5 MHz-and-above probes for general corrosion detection, and 7.5–10 MHz probes for thin materials requiring high resolution, with probe diameters available in 0.187″, 0.250″, and 0.500″ options, connected via two Lemo "00" coaxial connectors that accept either probe polarity.

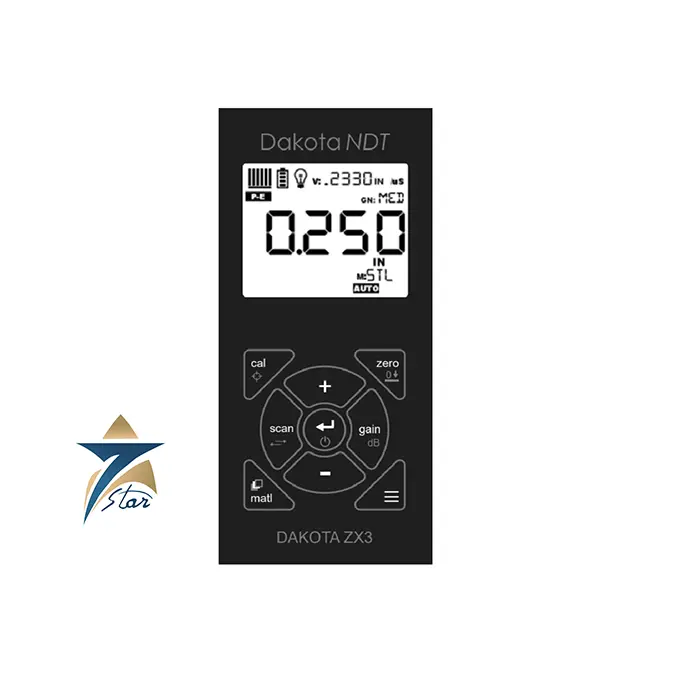

The display is a custom backlit segmented LCD, featuring a large 7-segment thickness/velocity reading, a smaller 7-segment field for material sound velocity, a 14-segment field for gain and material-type settings, a 6-bar stability/repeatability indicator that helps the operator judge measurement confidence in real time, and a battery-status indicator. Seven Star LLC notes that Dakota’s own operation manual for the base ZX3 model does not describe an internal data-logging feature; this distinguishes it from Dakota’s ZX-5 DL model, which does include data logging. Customers requiring stored/logged thickness readings for a corrosion monitoring program should confirm with Seven Star LLC whether the ZX3 or a data-logging-capable Dakota model better fits their inspection workflow before ordering.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Dakota |
| Model | ZX3 |
| Product Type | Ultrasonic corrosion thickness gauge |
| Measuring Principle | Ultrasonic pulse-echo |
| Housing | Rugged extruded aluminum |
| Display | High-contrast LCD |
| Power | Standard AA batteries |
| Calibration | Factory calibrated; basic calibration adjustment |
Applications
The ZX3 is used for corrosion and pit detection in steel and cast materials, pipeline and storage tank wall-thickness inspection, high-penetration measurement through plastics and castings, and thickness gauging on curved or restricted-access surfaces — common tasks in refinery, petrochemical, and marine asset integrity inspection programs.
Why Seven Star LLC
Seven Star LLC is the officially authorized Dakota NDT (Dakota Ultrasonics) representative in Oman, supplying thickness gauges with technical support, and helping asset integrity teams confirm the correct probe frequency, diameter and data-logging capability before order confirmation.
Request a Quote for Dakota ZX3 Corrosion Thickness Gauge
Contact Seven Star LLC to request a quotation for the Dakota ZX3 corrosion thickness gauge. Our team can help confirm the correct probe configuration for your inspection program, and support reliable delivery across Oman and the wider GCC region.
Ordering Notes
When requesting a quotation, please specify the material types you need to measure, the expected wall thickness range, and whether data logging is required for your inspection program, so Seven Star LLC can confirm whether the ZX3 or a data-logging-capable Dakota model best fits your requirements.
Corrosion Monitoring Value
Regular ultrasonic thickness measurement at fixed monitoring points on piping and vessels allows asset integrity teams to track corrosion or erosion rates over time and predict remaining service life before a wall thickness reaches a critical minimum. Seven Star LLC can advise on establishing an effective thickness monitoring point (TML) program using the ZX3 as part of a broader mechanical integrity strategy for aging plant infrastructure across Oman and the GCC.
Ease of Use in the Field
The ZX3’s stability indicator bar helps field technicians confirm they have achieved a solid, repeatable coupling to the test surface before recording a reading, reducing the risk of inaccurate measurements caused by poor probe contact on rough or curved surfaces — a common challenge when inspecting corroded pipework or tank shells in the field.
Related Products
- Dakota ZX1 Corrosion Thickness Gauge
- Dakota CMX2-DL Corrosion Thickness Gauge
- Dakota CMX1-DL Corrosion Thickness Gauge
- Dakota MX2-DL Corrosion Thickness Gauge
- Dakota ZX6-DL Corrosion Thickness Gauge
- Dakota NDT CX2 Corrosion Thickness Gauge
- Dakota FX81-DL Bench-Top Ultrasonic Flaw Detector
- Dakota FX80-DL Bench-Top Ultrasonic Flaw Detector
- Dakota BT1-DL Bolt Tension Monitor
- Dakota BT2-DL Benchtop Bolt Tension Monitor
- Dakota MultiMax – 4 Channel Bolt Tension Monitor
Datasheets & Documents
Reviews (0)
About brand
Ultrasonic thickness gauging is the core of Dakota NDT, the Scotts Valley, USA maker that many inspectors still know as Dakota Ultrasonics. Its instruments measure remaining wall on corroded pipe and vessels, check precision parts, find flaws in welds and monitor bolt elongation.
Seven Star LLC is the Dakota NDT agency for Oman and the GCC. We list Dakota corrosion and precision thickness gauges, flaw detectors, transducers, delay line tips and calibration blocks, and supply them with the manufacturer's documentation.
Dakota NDT product families
Corrosion thickness gauges form the largest group: the CMX10-DL with full waveform capture, the CMX, CX and ZX series and the MX2-DL. For thin or tight-tolerance material Dakota builds the precision line, made up of the PZX1-DL, the PCX8-DL and the PMX series. The RX8-DL sonic tester, the PMX4-DL and the R9 sit in the specialty group. Flaw detection is handled by the handheld FX71-DL and the bench-top FX81-DL, and bolt tension by the BT1-DL, the BT2-DL and the MultiMax remote monitoring system. Dual element transducers pair with corrosion gauges, single element and delay line probes with precision gauges. DakMaster and DakView software take care of data transfer and reporting.
Where Dakota ultrasonic thickness gauges are used
Typical jobs are wall-loss surveys on pipelines, tanks, boiler tubes and pressure vessels in oil and gas plants and power stations, thickness checks on machined, drawn or molded parts, weld inspection in fabrication shops, and bolted joints on flanges and turbines where clamp load matters more than torque.
Ordering Dakota gauges and probes: what we need
A useful inquiry names the gauge model, the material, its expected thickness span, the surface temperature and whether the surface is coated. For transducers send the frequency, element diameter, connector type and the gauge the probe will be used with. For calibration blocks give the material and the step sizes you need. If you already own a Dakota instrument, a photo of its label and of the current probe lets us check the match against the manufacturer's documentation.
FAQ
Questions about the Dakota ZX3 Corrosion Thickness Gauge
Answers from our engineering team on installation, compatibility and integration.
01What is the main difference between the ZX3 and ZX1 models?
The ZX3 is a basic dual-element pulse-echo gauge. Contact us with your application and we will compare it against other Dakota models.
02What materials can the ZX3 measure?
The ZX3 is suitable for steel and other common metallic materials used in industrial applications.
03Does the ZX3 support through-paint measurement?
No, the ZX3 uses standard pulse-echo measurement and is intended for uncoated or lightly coated surfaces.
04Is the ZX3 suitable for industrial field inspections?
Yes, it is designed for handheld use in harsh industrial environments and routine inspection work.
05Does the ZX3 require frequent calibration?
The instrument is factory calibrated, with basic calibration adjustment available when required.
