Dakota NDT CX2 Corrosion Thickness Gauge

Name: Dakota NDT CX2 Thickness Gauge – Datasheet & Price Quote
Brand: Dakota NDT

Description

Overview

The Dakota NDT CX2 Corrosion Thickness Gauge is an essential, highly durable ultrasonic measurement instrument designed for meticulous non-destructive testing (NDT). In critical industrial environments where asset integrity is paramount, detecting internal corrosion, pitting, and material degradation requires consistent and extreme precision. This device provides engineers and NDT inspectors with unparalleled diagnostic reliability, utilizing advanced acoustic wave technology to measure the remaining wall thickness of pipelines, storage tanks, and pressure vessels without requiring physical sampling or halting production cycles.

As the official authorized partner and exclusive regional representative for Dakota NDT, Seven Star LLC proudly supplies this state-of-the-art ultrasonic thickness gauge to heavy industrial sectors, oil and gas refineries, and marine engineering fleets across the Sultanate of Oman, Muscat, and the wider GCC region. By equipping inspection teams with the upgraded Dakota NDT CX2, plant managers can ensure strict compliance with international safety protocols, optimize preventive maintenance schedules, and significantly mitigate the risk of catastrophic structural failures in aging critical infrastructure.

Documentation

Measurement Principle

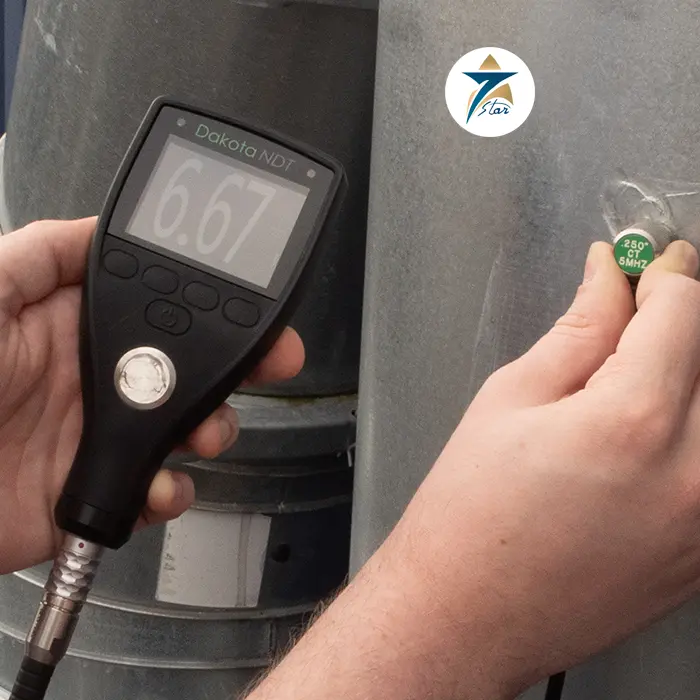

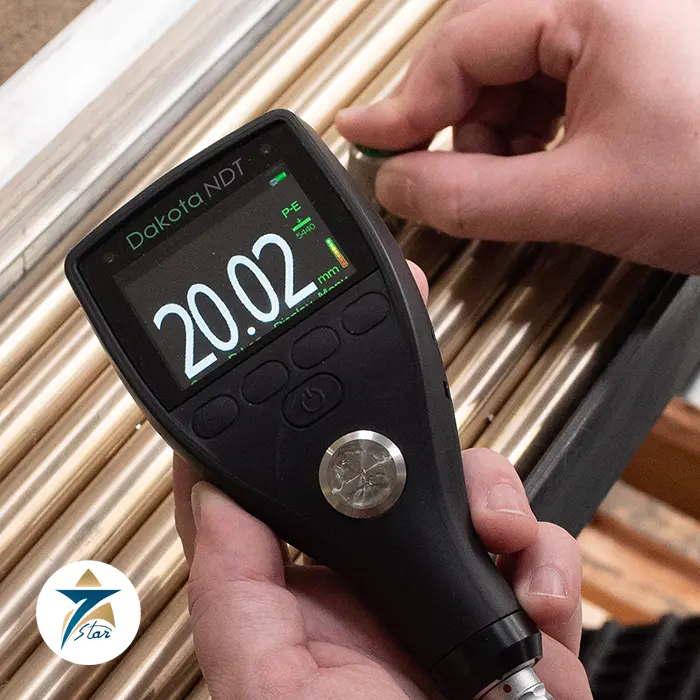

The operational execution of this ultrasonic thickness gauge relies on sophisticated acoustic wave propagation and reflection kinematics. The device utilizes dual-element transducers to transmit high-frequency ultrasonic sound pulses through the surface of the test material. When these sound waves encounter a boundary—such as the back-wall of a steel pipe or an internal corrosion pit—they reflect back to the receiving element of the transducer. The internal high-speed microprocessor calculates the exact transit time (time-of-flight) of these acoustic pulses.

Operating in standard Pulse-Echo mode, the instrument determines the precise material thickness with an exceptional accuracy of up to ±0.001 inches (0.01 mm). The CX2 features a highly stable calibration matrix that allows inspectors to adjust the acoustic velocity to match specific materials, ranging from carbon steel and aluminum to glass and industrial plastics. This acoustic precision ensures that even the most minute internal wall thinning is detected instantly, providing a highly reliable numerical readout that operators can trust for safety-critical structural evaluations.

Engineering Design of the Dakota NDT CX2

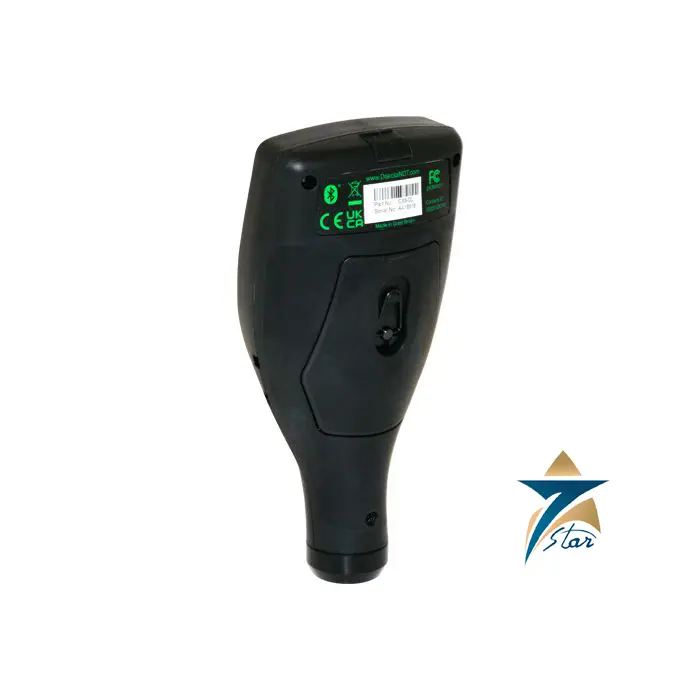

The physical architecture and electronic engineering of the Dakota NDT CX2 are meticulously optimized for severe-duty field inspections. Standard plastic NDT gauges often crack, warp, or fail when exposed to the harsh realities of industrial construction sites. In stark contrast, this instrument is housed within an incredibly robust, custom-extruded aluminum body sealed with precision-machined, nickel-plated aluminum end caps. This ruggedized construction ensures the delicate internal microelectronics are completely shielded from heavy mechanical impact, industrial dust, and the severe ambient heat typical of the Sohar and Salalah industrial zones.

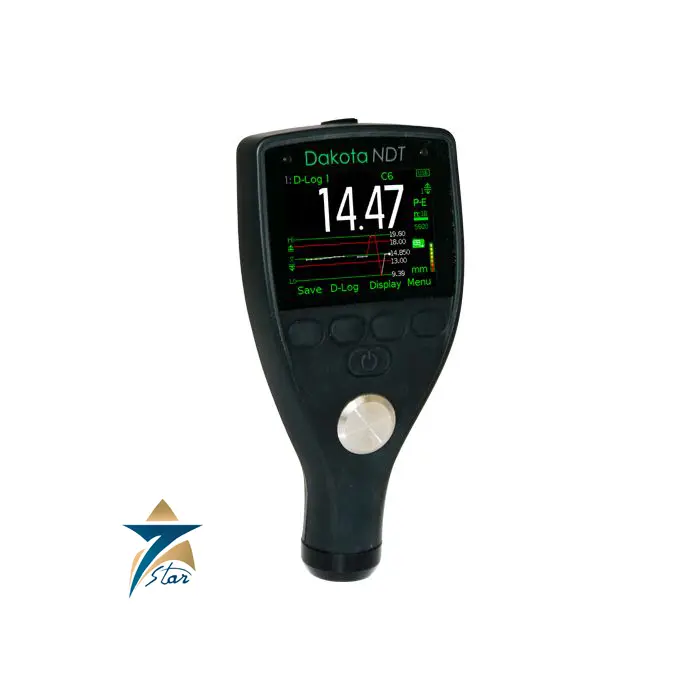

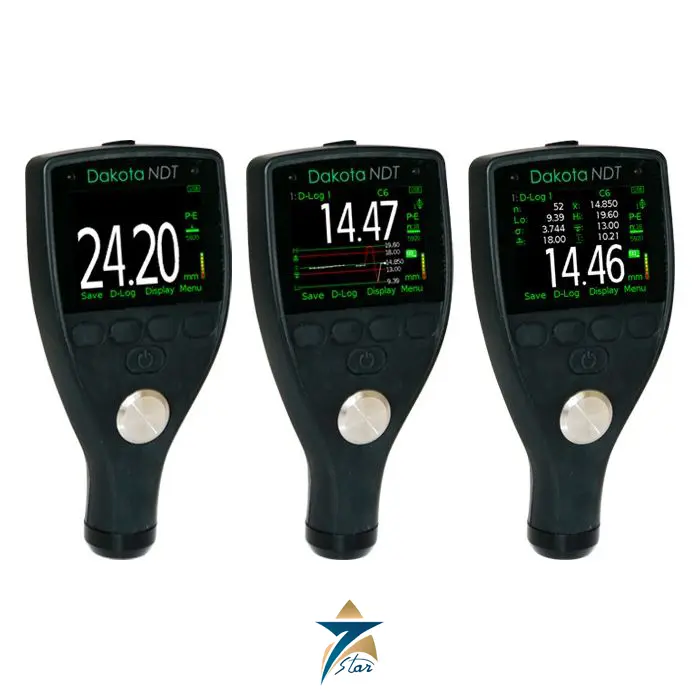

The electronic architecture is designed for maximum operational longevity and ease of use. It features a high-contrast, multi-function LCD display equipped with an adjustable backlight, ensuring optimal visibility whether operating in the pitch-black confined spaces of a storage tank or under the blinding midday sun of a desert pipeline route. The tactile membrane keypad is engineered for single-handed operation, allowing inspectors to easily navigate velocity settings, zero calibrations, and unit toggles even while wearing heavy-duty industrial safety gloves.

Key Features

High-precision Pulse-Echo measuring mode designed specifically for detecting internal corrosion and material pitting.
Extruded aluminum housing with nickel-plated end caps delivering extreme durability and an IP65 environmental protection rating.
Adjustable acoustic velocity settings, allowing accurate thickness measurements across a vast array of industrial materials.
High-speed scanning mode capable of capturing multiple readings per second to rapidly locate minimum thickness points over large surface areas.
High-contrast LCD display with adjustable backlighting for seamless operation in low-light or direct-sunlight environments.
Extended battery lifecycle, delivering up to 200 hours of continuous operation on standard AA alkaline batteries.
Built-in automatic zero calibration plate for rapid on-site probe alignment and measurement verification.

Industrial Applications

The acoustic accuracy and extreme environmental durability of this ultrasonic thickness gauge make it a mandatory diagnostic asset across continuous-process and heavy-asset industries. In the expansive oil, gas, and petrochemical refining sectors of Oman, NDT inspectors deploy these gauges to continuously monitor high-pressure pipelines, flare lines, and crude oil storage tanks for internal corrosion and sulfur-induced degradation. The ability to rapidly scan large surface areas minimizes turnaround times during critical plant shutdowns.

Power generation facilities, desalination plants, and water treatment utilities across the GCC utilize the gauge to measure the wall thinning of boiler tubes, heat exchangers, and high-temperature steam lines. Sourced safely through the official procurement network of Seven Star LLC, this instrument is also heavily utilized in the marine and offshore shipping industry for hull integrity surveys. It provides maritime surveyors with a clear, documented profile of ship hull thickness, ensuring vessels meet the strict structural safety standards required by international maritime classification societies.

Technical Specifications

Parameter	Specification
Measurement Range	0.025 to 19.999 inches (0.63 to 500 mm) – dependent on material and probe
Resolution	0.001 inches (0.01 mm)
Measurement Principle	Ultrasonic Pulse-Echo (Time-of-Flight)
Display Type	Multi-segment LCD with adjustable backlight
Acoustic Velocity Range	0.0492 to 0.3937 in/μs (1250 to 10,000 m/s)
Housing Material	Extruded Aluminum with Nickel-Plated End Caps
Environmental Rating	IP65 (Dust and Water Resistant)
Operating Temperature	-30°C to +50°C (-22°F to 122°F)
Battery Type	Two (2) 1.5V AA Alkaline batteries
Operating Time	Up to 200 hours (without backlight)

Request a Quote for Dakota NDT CX2 Corrosion Thickness Gauge

To submit a formal Request for Quote (RFQ), check current availability and lead time, or download complete technical engineering datasheets for the Dakota NDT CX2 Corrosion Thickness Gauge, please contact the non-destructive testing (NDT) division at Seven Star LLC today. As the authorized partner for Dakota NDT in Oman and the GCC, our technical specialists are ready to assist with transducer selection and commercial sourcing for your inspection teams.

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Ultrasonic thickness gauging is the core of Dakota NDT, the Scotts Valley, USA maker that many inspectors still know as Dakota Ultrasonics. Its instruments measure remaining wall on corroded pipe and vessels, check precision parts, find flaws in welds and monitor bolt elongation.

Seven Star LLC is the Dakota NDT agency for Oman and the GCC. We list Dakota corrosion and precision thickness gauges, flaw detectors, transducers, delay line tips and calibration blocks, and supply them with the manufacturer's documentation.

Dakota NDT product families

Corrosion thickness gauges form the largest group: the CMX10-DL with full waveform capture, the CMX, CX and ZX series and the MX2-DL. For thin or tight-tolerance material Dakota builds the precision line, made up of the PZX1-DL, the PCX8-DL and the PMX series. The RX8-DL sonic tester, the PMX4-DL and the R9 sit in the specialty group. Flaw detection is handled by the handheld FX71-DL and the bench-top FX81-DL, and bolt tension by the BT1-DL, the BT2-DL and the MultiMax remote monitoring system. Dual element transducers pair with corrosion gauges, single element and delay line probes with precision gauges. DakMaster and DakView software take care of data transfer and reporting.

Where Dakota ultrasonic thickness gauges are used

Typical jobs are wall-loss surveys on pipelines, tanks, boiler tubes and pressure vessels in oil and gas plants and power stations, thickness checks on machined, drawn or molded parts, weld inspection in fabrication shops, and bolted joints on flanges and turbines where clamp load matters more than torque.

Ordering Dakota gauges and probes: what we need

A useful inquiry names the gauge model, the material, its expected thickness span, the surface temperature and whether the surface is coated. For transducers send the frequency, element diameter, connector type and the gauge the probe will be used with. For calibration blocks give the material and the step sizes you need. If you already own a Dakota instrument, a photo of its label and of the current probe lets us check the match against the manufacturer's documentation.

FAQ

Questions about the Dakota NDT CX2 Corrosion Thickness Gauge

Answers from our engineering team on installation, compatibility and integration.

01What is the primary technical advantage of the Dakota NDT CX2?

The primary advantage of the Dakota NDT CX2 is its combination of extreme physical durability and high-precision acoustic measurement. Unlike plastic gauges, its extruded aluminum housing survives harsh industrial drops, while its advanced Pulse-Echo microprocessor delivers highly accurate corrosion profiling up to 0.01 mm resolution.

02How do operators calibrate the gauge for different industrial materials?

The device features an adjustable acoustic velocity setting. Since sound travels at different speeds through different materials (e.g., steel vs. aluminum), the inspector simply inputs the known velocity of the target material or uses the built-in calibration block to lock in the exact acoustic speed, ensuring flawless accuracy.

03Can this thickness gauge be used on high-temperature industrial pipelines?

Yes, the device is fully compatible with specialized high-temperature delay line transducers offered by Dakota NDT. When equipped with the appropriate high-temp probe and ultrasonic couplant, it can safely measure the thickness of active steam lines without requiring the plant to cool down.

04Is the aluminum housing suitable for the extreme environmental conditions of the GCC?

Absolutely. The custom-extruded aluminum body with nickel-plated end caps provides an IP65 rating. It is exceptionally resistant to heavy mechanical impacts, corrosive coastal humidity, and the abrasive silica dust common in Omani industrial zones like Sohar and Salalah.

05Is Seven Star LLC an authorized regional partner for Dakota NDT products?

Yes, Seven Star LLC is the official authorized partner and exclusive regional representative for Dakota NDT. Seven Star LLC supplies Dakota NDT products to customers in Oman and the GCC and can provide the manufacturer documentation and technical support on request.
