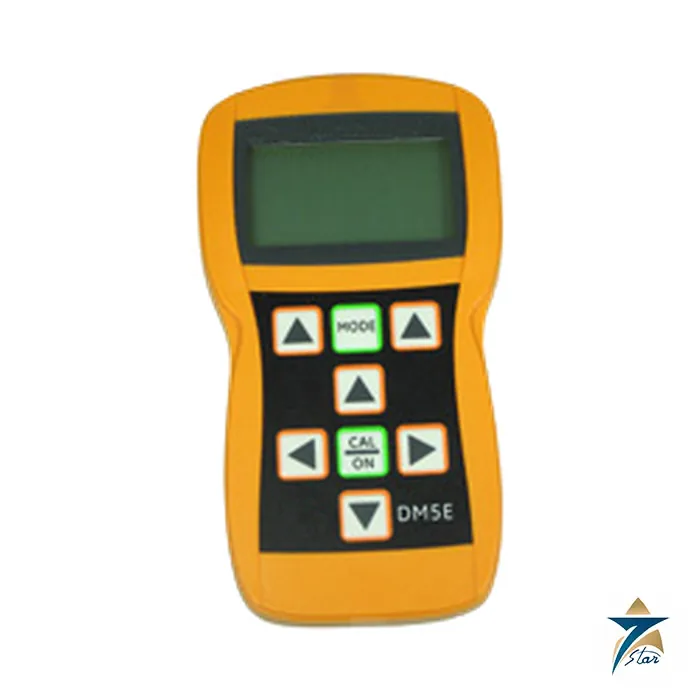

Waygate Technologies DM5E Ultrasonic Thickness Gauge

Overview

Waygate Technologies DM5E is a portable ultrasonic thickness gauge engineered for fast, reliable corrosion monitoring on pipelines, pressure vessels, and storage tanks across the oil and gas, petrochemical, and power generation industries. Available in three functionality tiers – DM5E Basic, DM5E, and DM5E DL – the Waygate Technologies DM5E family represents the latest generation of corrosion thickness gauges from Waygate Technologies, formerly known as GE Inspection Technologies, offering measurable improvements in thickness stability and repeatability at both normal and elevated temperatures.

As the official authorized partner and exclusive regional representative for Waygate Technologies, Seven Star LLC proudly supplies the Waygate Technologies DM5E ultrasonic thickness gauge to inspection companies, refineries, and industrial customers across Oman and the wider GCC. Every unit shipped through Seven Star LLC is genuine Waygate Technologies product with full manufacturer warranty and access to local technical support – ensuring inspection engineers and procurement teams in Muscat, Sohar, and Salalah receive an authentic, factory-certified Waygate Technologies DM5E backed by regional service.

Working Principle

The Waygate Technologies DM5E measures material thickness using the ultrasonic pulse-echo principle: an ultrasonic transducer probe sends a sound pulse into the test material, and the gauge precisely times the pulse’s echo return from the back wall to calculate wall thickness based on the material’s known sound velocity. Because this is a non-destructive, single-sided measurement, the DM5E allows inspectors to check remaining wall thickness on pipes, tanks, and vessels without cutting or drilling into the asset.

The DM5E and DM5E DL models add DUAL MULTI operating mode, a measurement technique proven in earlier Waygate Technologies corrosion gauges that allows accurate thickness measurement of metal through protective coatings, eliminating the need to remove paint or coating at the measuring point and saving significant inspection time and cost. Min/Max capture, B-Scan generation, and differential thickness measurement further let inspectors compare measured thickness against a nominal reference value, quickly flagging areas of concern during a survey.

Engineering Design of the Waygate Technologies DM5E

The Waygate Technologies DM5E shares a common rugged, IP54-rated housing across all three model tiers, weighing just 223 g including its two AA batteries, which provide up to 60 hours of continuous operation. A high-resolution 64 x 128 pixel backlit graphical LCD display remains visible in all lighting conditions, and a sealed, watertight, dust-proof membrane keypad supports genuine one-hand operation in the field. The gauge measures from 0.025 to 20 in. (0.6 to 500 mm) with selectable resolution down to 0.001 in., and supports a material velocity range of 0.0200 to 0.7362 in/ms.

The DM5E DL model adds a built-in data logger capable of storing up to 50,000 readings in grid-style data file formats, transferable to a PC via a Mini USB port and importable directly into Microsoft Excel using an included macro for analysis and reporting. Both the DM5E Basic and DM5E are field-upgradeable to higher tiers, protecting the customer’s initial investment as inspection requirements grow. The most commonly used probes (501, 503, 512, FH2E, and 590) are pre-programmed onto the device, simplifying setup, and a built-in calibration reminder prompts recalibration after a specified number of measurements or elapsed time.

Key Features

The Waygate Technologies DM5E combines rugged field durability with measurement flexibility that has made it a benchmark corrosion thickness gauge across heavy industry.

• Three functionality tiers (Basic, DM5E, DM5E DL) let customers match capability and budget, with field-upgradeable paths between tiers.
• DUAL MULTI mode measures thickness through protective coatings without removal, saving significant inspection time.
• IP54-rated, ergonomic housing weighs only 223 g and delivers up to 60 hours of battery life on two AA cells.
• The DM5E DL data logger stores up to 50,000 readings, exportable to Excel via Mini USB and an included macro.
• Min/Max capture, B-Scan generation, and differential thickness measurement support detailed corrosion surveys.
• Pre-programmed support for the most common Waygate Technologies probes (501, 503, 512, FH2E, 590) simplifies setup.
• A built-in calibration reminder prompts recalibration after a specified number of readings or time interval.
• Switchable multi-language interface supports English, Spanish, German, Chinese, Japanese, Italian, and Russian.

Industrial Applications

The Waygate Technologies DM5E is deployed across oil and gas pipeline inspection, pressure vessel and storage tank corrosion surveys, petrochemical plant integrity monitoring, and power generation boiler tube inspection wherever fast, reliable wall thickness measurement is required in harsh field conditions. Typical duties include annual corrosion monitoring programs, preventative maintenance inspections, and post-repair verification surveys.

As the officially authorized partner for Waygate Technologies, Seven Star LLC distributes the Waygate Technologies DM5E to inspection service companies, refineries, and petrochemical complexes throughout Oman and the GCC. The gauge is a strong fit for pipeline and storage tank integrity programs across the Sohar and Salalah industrial zones, as well as for power generation and oil and gas facilities across Muscat that require dependable, field-proven corrosion thickness measurement.

Technical Specifications

The table below summarizes the core specifications of the Waygate Technologies DM5E ultrasonic thickness gauge as supplied by Seven Star LLC.

Call To Action

Seven Star LLC supports the full procurement cycle for the Waygate Technologies DM5E ultrasonic thickness gauge, from formal RFQ submission to regional warehouse stock availability, technical datasheet delivery, and direct consultation with our instrumentation division on model tier, probe selection, and calibration block requirements for your inspection program. As the authorized partner for Waygate Technologies in Oman and the GCC, we ensure every Waygate Technologies DM5E is delivered with full manufacturer warranty and dependable local technical support. Contact Seven Star LLC today to request a quotation or discuss your corrosion monitoring requirements.
