Dakota NDT CX8 DL Corrosion Thickness Gauge

Name: Dakota NDT CX8 DL Thickness Gauge – Datasheet & Price Quote
Brand: Dakota NDT

Description

Overview

The Dakota NDT CX8 DL Corrosion Thickness Gauge is an elite, industrial-grade ultrasonic measurement instrument designed for comprehensive non-destructive testing (NDT) and advanced asset condition monitoring. In critical industrial environments, tracking asset degradation and detecting internal corrosion, pitting, and material wear requires more than just numerical readouts; it requires visual confirmation and massive data retention. This device provides engineers with unparalleled diagnostic reliability by combining highly accurate acoustic wave technology, graphical A-Scan/B-Scan capabilities, and an integrated high-capacity data logger. This allows operators to visually profile and record the remaining wall thickness of pipelines and pressure vessels without halting production cycles.

As the official authorized partner and exclusive regional representative for Dakota NDT, Seven Star LLC proudly supplies this state-of-the-art ultrasonic thickness gauge to heavy industrial sectors, oil and gas refineries, and marine engineering fleets across the Sultanate of Oman, Muscat, and the wider GCC region. By equipping inspection teams with the powerful Dakota NDT CX8 DL, plant managers can ensure strict compliance with international safety protocols, automate their preventive maintenance reporting, and significantly mitigate the risk of catastrophic structural failures in aging infrastructure.

Documentation

Measurement Principle

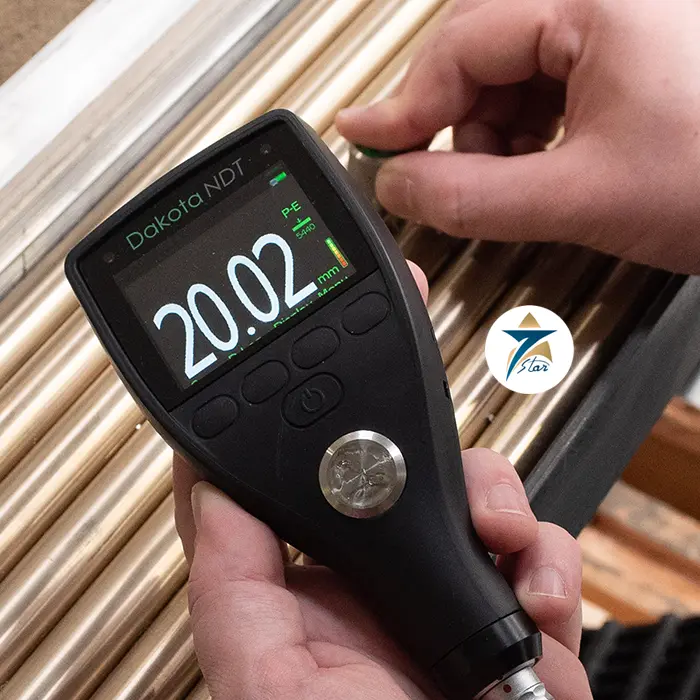

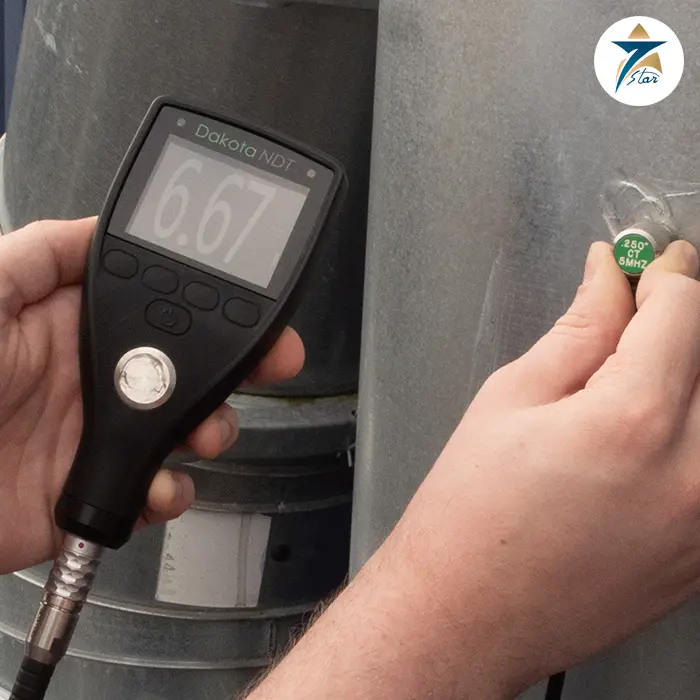

The operational execution of this ultrasonic thickness gauge relies on sophisticated acoustic wave propagation and reflection kinematics. The device utilizes dual-element transducers to transmit high-frequency ultrasonic sound pulses through the surface of the test material. When these sound waves encounter a boundary—such as the back-wall of a steel pipe or an internal corrosion pit—they reflect back to the receiving element of the transducer. The internal high-speed microprocessor calculates the exact transit time (time-of-flight) to determine precise material thickness up to ±0.001 inches (0.01 mm).

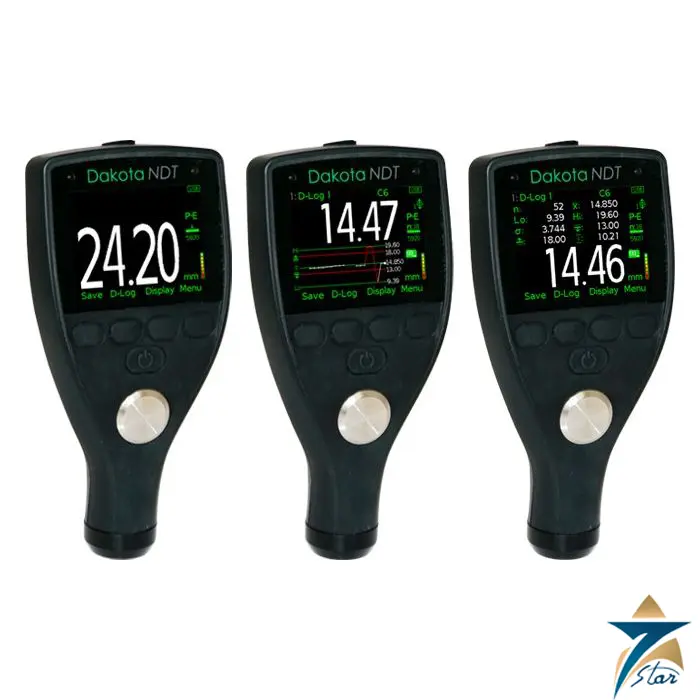

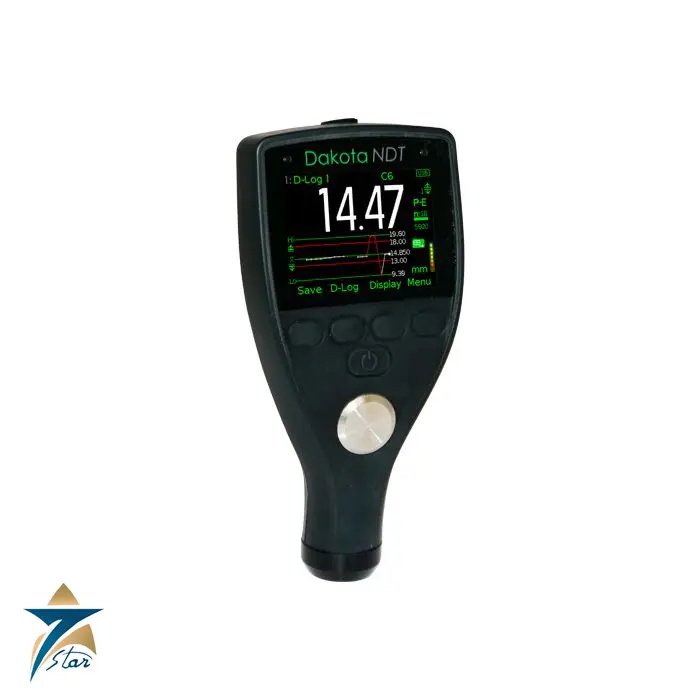

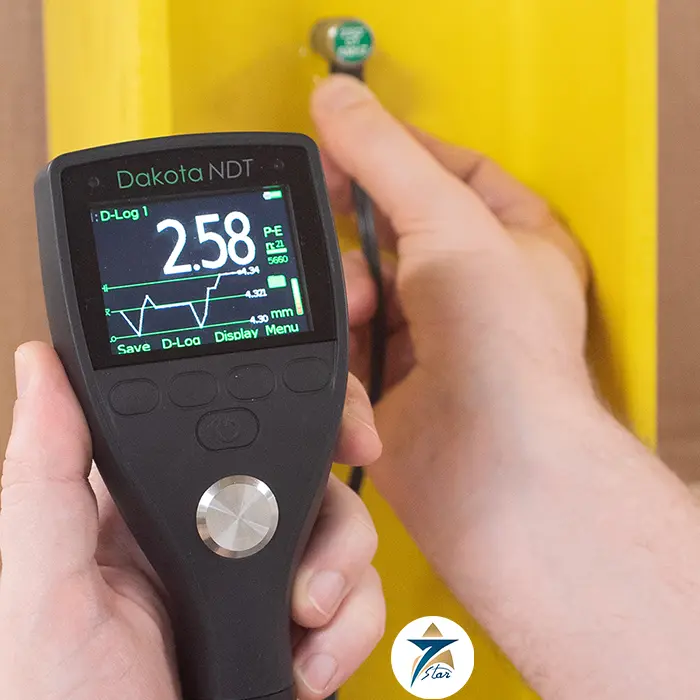

The technological superiority of the CX8 DL lies in its graphical representation and dual measurement modes. Operating in Pulse-Echo mode, it detects standard internal corrosion. However, by switching to the advanced Echo-Echo (Thru-Paint) mode, the instrument isolates the acoustic reflections of the substrate from the reflections of the surface coating, allowing inspectors to measure the true metal thickness without scraping off industrial paint. Furthermore, the unit displays a live A-Scan (both RF and Rectified waveforms) to help inspectors visually analyze the echo profile for hidden flaws, alongside a time-based B-Scan that provides a dynamic cross-sectional profile of the material’s internal condition.

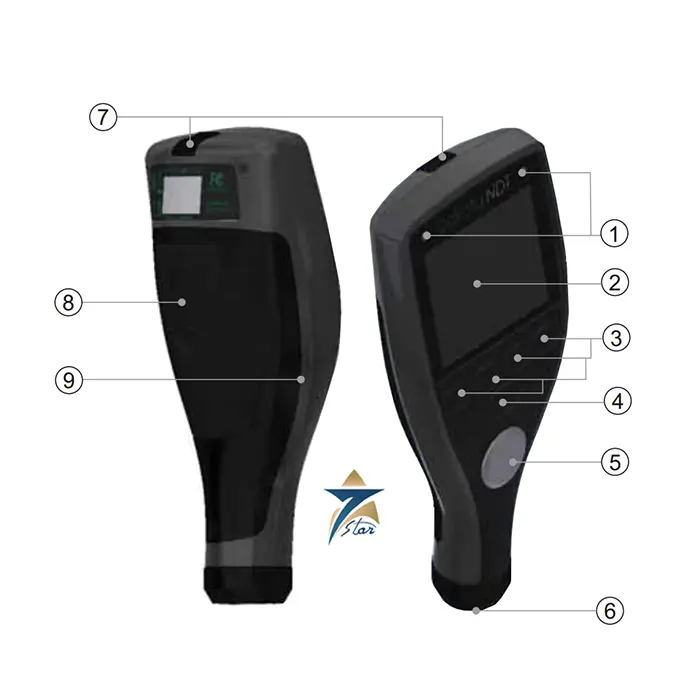

Engineering Design of the Dakota NDT CX8 DL

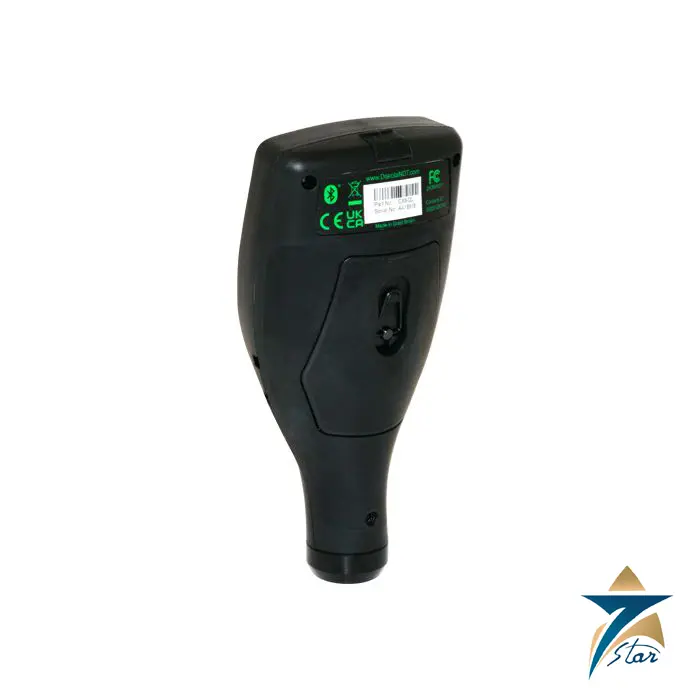

The physical architecture and electronic engineering of the Dakota NDT CX8 DL are meticulously optimized for severe-duty field inspections and massive data management. Standard plastic NDT gauges frequently crack or warp when exposed to the harsh realities of industrial construction sites. In stark contrast, this instrument is housed within an incredibly robust, custom-extruded aluminum body sealed with precision-machined, nickel-plated aluminum end caps. This ruggedized construction ensures the delicate internal microelectronics are completely shielded from heavy mechanical impact, abrasive industrial dust, and the severe ambient heat typical of the Sohar and Salalah industrial zones.

The “DL” designation signifies the integration of an elite Data Logger. Designed for large-scale plant audits, the internal 4 GB non-volatile SD memory can store millions of thickness readings along with their corresponding A-Scan and B-Scan graphics. The data structure supports both sequential and grid (alpha-numeric) file formats, mirroring the physical layout of complex pipeline grids. A high-contrast, multi-function LCD display equipped with an adjustable backlight ensures optimal visibility in the pitch-black confined spaces of a storage tank or under blinding midday sun. The unit also features a native USB Type-C port, allowing inspectors to quickly export collected data to a PC for automated report generation via the DakView software.

Key Features

Full-featured live A-Scan (RF and Rectified) and time-based B-Scan displays for comprehensive visual flaw analysis.
Echo-Echo (Thru-Paint) measuring mode allowing accurate substrate measurement without removing protective surface coatings.
Integrated 4 GB Data Logger supporting sequential and grid file formats, capable of storing millions of readings and waveforms.
Native USB Type-C connectivity and full compatibility with DakView PC software for rapid data transfer and report generation.
Extruded aluminum housing with nickel-plated end caps delivering extreme durability and an IP65 environmental protection rating.
Programmable High/Low alarm limits with visual alerts for immediate detection of critical wall thinning.
High-speed scanning mode capable of capturing multiple readings per second to rapidly locate minimum thickness points.
Extended battery lifecycle, delivering up to 200 hours of continuous operation on standard AA alkaline batteries.

Industrial Applications

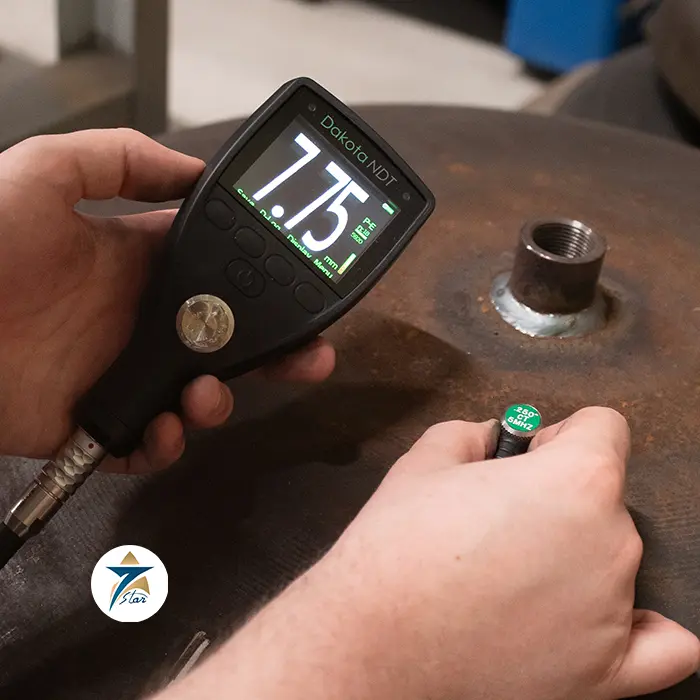

The visual acoustic accuracy, massive data retention capabilities, and extreme environmental durability of this ultrasonic thickness gauge make it a mandatory diagnostic asset across continuous-process and heavy-asset industries. In the expansive oil, gas, and petrochemical refining sectors of Oman, NDT inspectors deploy these gauges to conduct large-scale, multi-point corrosion surveys on high-pressure pipelines, flare lines, and crude oil storage tanks. The ability to measure through paint and visually confirm flaws via A-Scan drastically accelerates turnaround times during critical plant shutdowns.

Power generation facilities, desalination plants, and water treatment utilities across the GCC utilize the gauge to measure and digitally record the wall thinning of boiler tubes, heat exchangers, and high-temperature steam lines. Sourced safely through the official procurement network of Seven Star LLC, this instrument is also heavily utilized in the marine and offshore shipping industry for hull integrity surveys. It provides maritime surveyors with a clear, digitally documented cross-sectional profile of ship hull thickness, ensuring vessels meet the strict structural safety standards required by international maritime classification societies.

Technical Specifications

Parameter	Specification
Measurement Range (Pulse-Echo)	0.025 to 19.999 inches (0.63 to 500 mm) – dependent on material and probe
Measurement Range (Echo-Echo)	0.100 to 4.0 inches (2.54 to 102 mm) – for Thru-Paint applications
Resolution	0.001 inches (0.01 mm)
Display Modes	Digital Thickness, A-Scan (RF/Rectified), B-Scan (Time-based)
Data Logger Capacity	4 GB internal SD card (Millions of readings and waveforms)
Data Output	USB Type-C (Compatible with DakView PC software)
Alarm Capabilities	Programmable High and Low tolerance limits with visual alerts
Housing Material	Extruded Aluminum with Nickel-Plated End Caps
Environmental Rating	IP65 (Dust and Water Resistant)
Operating Temperature	-30°C to +50°C (-22°F to 122°F)
Battery Type	Three (3) 1.5V AA Alkaline batteries

Request a Quote for Dakota NDT CX8 DL Corrosion Thickness Gauge

To submit a formal Request for Quote (RFQ), check current availability and lead time, or download complete technical engineering datasheets for the Dakota NDT CX8 DL, please contact the non-destructive testing (NDT) division at Seven Star LLC today. As the authorized partner for Dakota NDT in Oman and the GCC, our technical specialists are ready to assist with transducer selection and commercial sourcing for your inspection teams.
