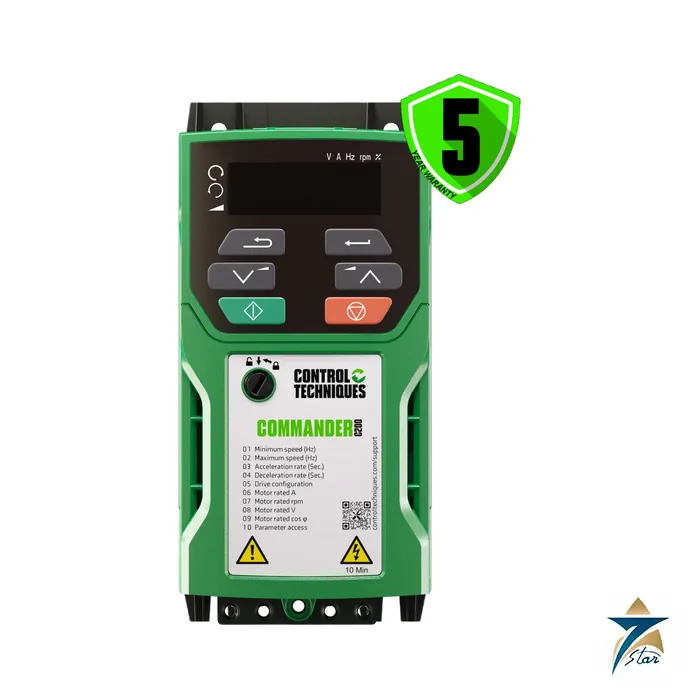

Control Techniques Commander C200 AC Variable Speed Drive

Name: Control Techniques Commander C200 AC Drive – Datasheet
Brand: Control Techniques

Description

Overview

The Control Techniques Commander C200 is a general-purpose, low-voltage AC variable speed drive covering motor ratings from 0.33 HP to 200 HP (0.25 kW to 132 kW) on normal duty and up to 150 HP (110 kW) on heavy duty, across 115 V, 208–240 V, 380–480 V, 500–575 V, and 500–690 V supply classes. Built by Nidec’s Control Techniques division, the Commander C200 delivers open-loop vector or V/Hz motor control as standard, plus optional open-loop Rotor Flux Control (RFC-A) for applications demanding tighter speed regulation, and includes onboard PLC-style programming so that many simple sequencing tasks can run inside the drive itself rather than requiring a separate controller.

With engineering support in Muscat, Seven Star LLC proudly supplies the Commander C200 AC variable speed drive to industrial and HVAC facilities across the Sultanate of Oman and the wider GCC. Mechanical and electrical contractors in Muscat, Sohar, and Salalah specify the C200 for fan, pump, and compressor speed control because its built-in HVAC feature set – including a PID process controller, energy-saving modes, and resonant frequency skip – reduces the need for external control hardware on district cooling and building automation projects.

Operating Principle

The Control Techniques Commander C200 converts fixed-frequency AC mains into a variable-frequency, variable-voltage output using a rectifier-DC bus-inverter topology, allowing the drive to control induction motor speed and torque independently of line frequency. In open-loop V/Hz mode the drive maintains a fixed voltage-to-frequency ratio suited to simple variable-torque loads such as fans and centrifugal pumps, while open-loop vector control and the optional RFC-A algorithm calculate motor flux and torque in real time from current feedback alone, delivering significantly better low-speed torque and dynamic response without the cost of a physical speed encoder.

Because motor speed is decoupled from line frequency, the Commander C200 lets engineers ramp equipment up and down gradually, eliminating the mechanical shock and inrush current associated with across-the-line starting, and enables continuous process control by modulating pump or fan speed to match real-time demand rather than running fixed-speed with a throttling valve or damper. The drive’s onboard PLC programming, accessed via Machine Control Studio, allows basic interlocks, staging logic, and setpoint control to execute directly within the drive, reducing the component count and wiring in smaller HVAC and utility skid applications. Communication is available natively via Modbus RTU, with plug-in option modules extending connectivity to PROFIBUS DP, DeviceNet, PROFINET RT, EtherCAT, and EtherNet/IP for integration with plant-wide SCADA and building management systems.

Engineering Design of the Control Techniques Commander C200

The Commander C200 is available across nine frame sizes to match the full 0.33–200 HP power range, housed in a rugged metal and polymer enclosure rated IP21 / UL open type as standard, with UL Type 1 plenum-rated operation available using an optional conduit kit – a configuration also suitable for environments using A2L refrigerants in modern HVAC systems. Control terminals provide two analog inputs, four digital inputs, one analog output, one digital I/O, and one relay output as standard, giving integrators sufficient native I/O for most fan, pump, and compressor applications without an expansion module, while a single option slot on frame sizes 2 and above accepts one plug-in communications or I/O expansion card.

A fixed LED keypad provides local status and parameter access, with an optional remote LCD keypad – available with a real-time clock – for door-mounted operator interfaces on larger panels. Parameter cloning is supported both through PC-based configuration software and directly via SD card, letting maintenance teams duplicate drive settings across multiple units or restore a configuration in the field without a laptop. Cooling is by forced convection, with drives rated for operation from -20°C to 40°C at full switching frequency and up to 60°C with output de-rating – a meaningful margin for the high-ambient electrical rooms and rooftop plant enclosures common across the GCC.

Key Features

The Control Techniques Commander C200 AC variable speed drive is specified across industrial and HVAC projects for the following reasons, and mechanical contractors comparing drive options regularly choose the Control Techniques Commander C200 for these traits:

The Control Techniques Commander C200 offers wide power coverage from 0.33 HP to 200 HP normal duty across 115–690 V supply classes suits both small pumps and large compressors.
On the Control Techniques Commander C200, open-loop vector control or optional RFC-A rotor flux control delivers strong low-speed torque without a physical encoder.
On the Control Techniques Commander C200, onboard PLC programming via Machine Control Studio reduces external control hardware for simple sequencing tasks.
The Control Techniques Commander C200 built-in HVAC functionality includes a PID process controller, energy-saving modes, and resonant skip frequencies.
Native Modbus RTU communication with plug-in options for PROFIBUS, DeviceNet, PROFINET, EtherCAT, and EtherNet/IP.
UL Type 1 plenum-rated operation with an optional conduit kit suits installation in HVAC air-handling environments.
Parameter cloning via SD card or PC tools speeds commissioning and simplifies drive replacement in the field.
Forced-convection cooling rated to 60°C with de-rating tolerates high-ambient GCC electrical room conditions.

Industrial Applications

The Commander C200 – the Control Techniques Commander C200 – is deployed across district cooling and commercial HVAC systems, RO desalination pump stations, oil & gas auxiliary equipment, and general industrial fan and conveyor applications, wherever variable-speed control improves energy efficiency and reduces mechanical wear compared to fixed-speed operation with throttling. In hotel and hospitality chains, hospital complexes, and commercial towers across the region, the C200’s built-in PID process control and energy-saving modes cut chiller plant and air-handling energy consumption directly, without requiring a separate building automation controller for basic speed regulation.

Backed by genuine manufacturer documentation, Seven Star LLC distributes the Commander C200 AC variable speed drive to EPC contractors, HVAC specialists, and industrial end users throughout Oman and the GCC, supporting projects in the Sohar and Salalah economic zones as well as facilities across Muscat, Duqm, and the wider Gulf region. Supply on request and technical support with selection mean that mechanical contractors and plant maintenance teams can specify the Commander C200 with confidence, knowing that replacement drives, option modules, and application engineering support can be quoted on request.

Technical Specifications

The table below summarizes the core specifications of the Control Techniques Commander C200 as supplied by Seven Star LLC.

Parameter	Specification
Model	Control Techniques Commander C200
Manufacturer	Control Techniques Commander C200 is manufactured by Nidec Control Techniques
Power Range (Normal Duty)	0.33 HP–200 HP (0.25 kW–132 kW)
Power Range (Heavy Duty)	0.33 HP–150 HP (0.25 kW–110 kW)
Supply Voltage Options	115 V, 208–240 V, 380–480 V, 500–575 V, 500–690 V
Control Modes	Open-loop vector, V/Hz, optional RFC-A
Control I/O	2 analog in, 4 digital in, 1 analog out, 1 digital I/O, 1 relay
Communication	Modbus RTU standard; PROFIBUS, DeviceNet, PROFINET, EtherCAT, EtherNet/IP optional
Programming	Onboard PLC functionality via Machine Control Studio
Enclosure Rating	IP21 / UL open type standard; UL Type 1 plenum with kit
Ambient Temperature	-20°C to 40°C at rated output; to 60°C with de-rating
Keypad	Fixed LED standard; remote LCD keypad optional
Cooling Method	Forced convection

Request a Quote for Control Techniques Commander C200 AC Variable Speed Drive

HVAC contractors and industrial engineers across Oman and the GCC can request a formal RFQ for the Control Techniques Commander C200 directly from Seven Star LLC. Working closely with plant engineers in the region, Seven Star LLC supplies on request with lead time confirmed at quotation, provides the full technical datasheet on request, and connects buyers with our instrumentation and automation division for drive sizing support and technical support. Contact Seven Star LLC today to confirm lead times and pricing for the Commander C200 AC variable speed drive.

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Variable speed drives are the business of Control Techniques, a company founded in 1973 and based in Newtown, United Kingdom. Its AC and DC drives are fitted to pumps, fans, conveyors, cranes and production machinery. Seven Star LLC, an independent supplier in Muscat, lists Control Techniques AC drives for plants in Oman and the GCC, currently the Commander C200 and the Unidrive M701.

Control Techniques drive families we list

The Commander C200 is a general purpose AC drive for open loop control of standard induction motors. The Unidrive M701 belongs to the high performance Unidrive M700 group and is the version with RS485 communications on board, the one normally chosen when an older Unidrive SP has to be replaced.

Ordering Control Techniques drives and spares: what we need

Send the full model code from the rating label, which gives the frame size, voltage rating and current rating, together with the serial number. Add the motor nameplate data, the supply voltage and a list of the option modules in the drive slots. If parameters must be carried over, keep a copy of the parameter file or the memory card.

Browse Control Techniques products by category: AC Drives.

Frequently Asked Questions

What motor control modes does the Commander C200 support?

The Commander C200 provides open-loop V/Hz control as standard for simple variable-torque loads, open-loop vector control for improved dynamic response, and an optional open-loop Rotor Flux Control (RFC-A) algorithm for applications requiring tighter low-speed torque performance.

How does the Commander C200 reduce installation cost and downtime on HVAC projects?

Built-in PID process control, energy-saving modes, and onboard PLC programming let the drive handle sequencing and setpoint control that would otherwise require a separate controller, while SD-card parameter cloning speeds commissioning and drive replacement in the field.

What power and voltage ranges does the Commander C200 cover?

The drive spans 0.33 HP to 200 HP (0.25-132 kW) on normal duty across nine frame sizes, with supply voltage options at 115 V, 208-240 V, 380-480 V, 500-575 V, and 500-690 V to match regional and imported equipment.

Can the Commander C200 integrate with legacy fieldbus or SCADA systems?

Yes. The drive includes native Modbus RTU communication as standard, with plug-in option modules available for PROFIBUS DP, DeviceNet, PROFINET RT, EtherCAT, and EtherNet/IP to integrate with both legacy fieldbus networks and modern industrial Ethernet architectures.

Is Seven Star LLC an experienced supply partner for Control Techniques products?

Yes, Seven Star LLC is an experienced supplier of Control Techniques in Oman and the GCC, supplying the Commander C200 AC variable speed drive with local technical support.
