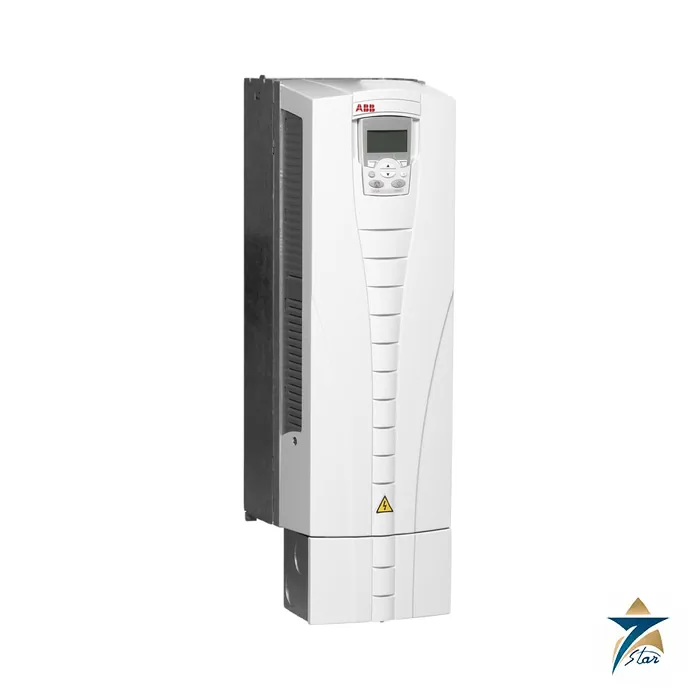

ABB ACS550-01-059A-4 ACS550 30 kW Frame R4 AC Drive

A 30 kW standard drive: ABB ACS550-01-059A-4

Rated 59 A, the ABB ACS550-01-059A-4 turns a 380 to 480 V supply into variable-frequency output for a 30 kW motor. It is a frame R4 drive from the ACS550-01 series.

Typical applications are pumps, fans and constant-torque machines such as conveyors, where adjustable speed and simple commissioning matter more than special product engineering.

Technical specifications

Duty ratings and supply

Heavy-duty current is 44 A (22 kW) and normal-use current is 59 A (30 kW) (40 hp in NEMA terms). Input current at rated output is about 59 A, which is the figure for sizing cables and fuses.

ABB lists vector control, a swinging choke for harmonic reduction, a built-in category C2 EMC filter, built-in Modbus on EIA-485, coated boards and the FlashDrop parameter tool as highlights of the ACS550 series.

Plan for a 24 kg drive that is 203 mm wide. The connection box raises its height to 689 mm, and depth is 262 mm. IP54 units are larger at 760 x 257 x 284 mm.

Cooling data: 907 W heat dissipation at full load, 280 m3/h of air and 75 dB sound level. Fusing is 63 A gG for IEC installations or 80 A UL class T. No brake chopper is built into frame R4; ABB offers external brake units for dynamic braking.

Installation conditions are a clean, dry, heated location with cooling air free of corrosive material and conductive dust. Maximum ambient is 40 C, or 50 C with 90% derating, and a free space of 200 mm is kept above and below the unit.

Reading the ACS550-01-059A-4 order code

Reading the order code: ACS550 (series), 01 (construction), 059A (current rating), 4 (voltage). Typical extras are +B055 for IP54 and +K466 for the Ethernet adapter RETA-01. Without plus codes the drive is the standard IP21 unit.

Please include the planned installation altitude, the ambient temperature range and the type of enclosure or cabinet in your request, so that derating and cooling can be checked against the manufacturer’s data before a quotation is issued.

Drives of this series often serve fans, pumps and conveyors in older plants. If yours is one of them, note the original motor cable length and screen arrangement, because replacing a drive is easiest when the wiring, filter and panel match what is already installed. Tell us the nameplate current as well, so the quoted size follows the load.

Selection checks for a 30 kW ACS550 application

Size the drive from the motor nameplate current and the type of load rather than from kilowatts alone. Centrifugal pumps and fans normally fit the normal-use rating, while conveyors, mixers and other machines that need high starting torque or frequent overloads should be checked against the heavy-duty rating, which for this type code covers a smaller motor. Confirm the supply voltage and earthing system on site: the built-in category C2 EMC filter is intended for earthed networks, and the ABB manual should be followed if the drive is to be connected to an IT (unearthed) or corner-earthed supply. If the load can overhaul the motor or needs quick stopping, plan for the external braking arrangement mentioned above, since frame R4 has no brake chopper inside.

Installation and wiring practice

Fix the drive vertically on a solid wall or panel back plate with the clearances given above, so that cooling air can pass from bottom to top without recirculating. If several drives or other heat sources share an enclosure, add up the heat losses and check that the cabinet ventilation can remove them. Use screened motor cable with the screen bonded at both ends as described in the ABB manual, keep motor and control cables in separate routes, and install the specified input fuses. Check the motor insulation before connecting it to a drive, particularly on older motors that previously ran direct on line.

Commissioning steps

Enter the motor nameplate data, choose the application macro closest to the duty and set acceleration, deceleration, minimum and maximum speed to suit the process. Where the drive is controlled over the built-in Modbus link, agree the register map and communication settings with the control system integrator and test start, stop, speed reference and fault reset from the controller. Run the motor first without load where possible, check the direction of rotation, then load the machine and watch current and temperature. Save the final parameter set; the FlashDrop tool listed for this series can help copy settings to a replacement drive.

Heat, dust and humidity in Oman and the GCC

The ACS550 is meant for a clean, dry location, and the maximum ambient stated above is easily exceeded in an unventilated pump house or rooftop plant room during a Gulf summer. Where the room or cabinet runs hotter, plan for air conditioning or ventilation, or apply the derating from the ABB documentation. Fine sand and conductive dust are a risk to any drive, so filtered cooling air and sealed cabinets are advisable; the IP54 option is worth discussing for dusty rooms. On coastal sites, salty humid air and condensation during cool nights call for a heated or conditioned enclosure. Routine maintenance should include cleaning the cooling path, checking that cooling air flows freely, tightening power terminals and reviewing the fault history.

Documents and quotation

The attached catalogue and ABB’s user’s manual are the basis of this data. Related: the ACS550 overview and the AC Drives category.

Check the drive label of the installed unit, including plus codes, before requesting a price. Seven Star LLC (independent supplier, Muscat) states availability and delivery time in its quotation.
