Allen-Bradley 22B-D012N104 AC Drive
PowerFlex 40 motor-speed control in frame C

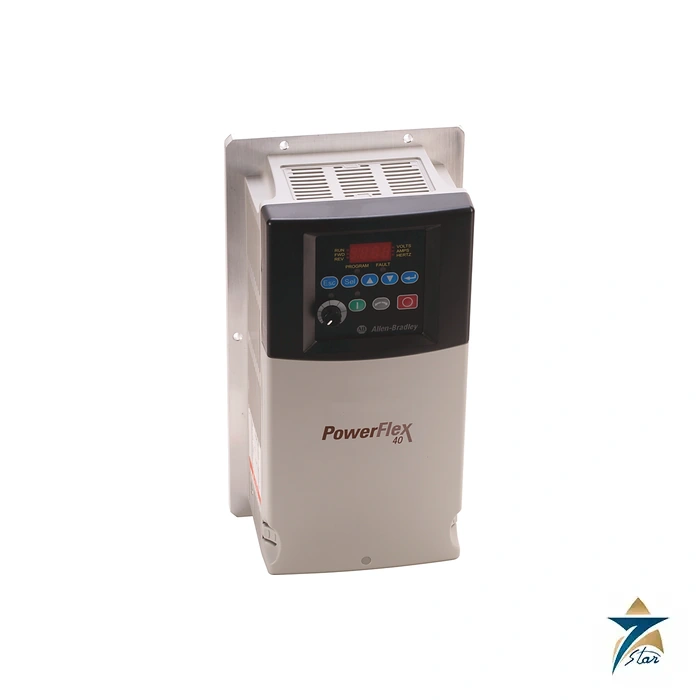

The Allen-Bradley 22B-D012N104 is a PowerFlex 40 AC drive with a 380–480 V three-phase input rating. The manufacturer identifies this execution as 12 A, 5.5 kW, frame C, with IP20/open construction.
Use the complete 22B-D012N104 code when matching an installed drive. A shared PowerFlex 40 description does not establish the same current rating, supply arrangement, frame or filter execution.
Rockwell Automation lists the 22B-D012N104 as discontinued since 30 June 2025. The engineering replacement is the PowerFlex 523 drive 25B-D013N104; check the control wiring, parameters and mounting before using it in an installed system.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / range | Allen-Bradley / PowerFlex 40 |
| Catalog number | 22B-D012N104 |
| Input supply | 380–480 V AC, three phase |
| Published output current | 12 A |
| Published motor power | 5.5 kW |
| Frame | C |
| Construction | IP20/open |
| CE-compliant filter | Not fitted in this execution |
Electrical and enclosure selection
This catalog execution does not include the CE-compliant filter identified on filtered variants. Check the installation EMC requirements and the actual drive reference when specifying a replacement or associated equipment.
The IP20/open construction needs a suitable cabinet and installation environment. Compare the motor nameplate current, available input supply, driven-load requirements, existing control connections and mounting space before selecting the replacement.
Drive accessories and external protection should be listed separately in the equipment scope. Follow the applicable PowerFlex 40 instructions for protective devices, grounding, cabling and commissioning settings.
Quotation enquiries
Send Seven Star LLC the 22B-D012N104 reference, quantity, motor nameplate, input supply and required control connections. Include the installed drive label and any specified EMC equipment or cabinet requirements.
Browse AC Drives for related motor-control equipment.
- Manual PowerFlex 40 User Manual — September 2025 Download
Allen-Bradley product families listed here
Current controller platforms on this page are ControlLogix, with the 1756-L85E ControlLogix 5580 controller and the 1756-PA72 chassis power supply, and CompactLogix 5380, with the 5069-L320ER and 5069-L340ERM. Distributed I/O is represented by POINT I/O: the 1734-AENTR dual-port EtherNet/IP adapter and the 1734-IB8 digital input module. Allen-Bradley drives listed are the PowerFlex 525 and PowerFlex 755. For installed systems there are SLC 500 parts: the 1746-A10 chassis, 1746-NI16I analog input module, 1747-ASB remote I/O adapter, 1747-KE interface and 1747-M13 memory module. A Trusted TMR digital input module (T8403) is also listed.Where Allen-Bradley hardware is used
ControlLogix and CompactLogix controllers run packaged equipment and plant utilities: compressor and pump skids, water and wastewater plants, power distribution, material handling and packaging lines. PowerFlex drives control pumps, fans and conveyors. Across the GCC, a large base of SLC 500 racks is still running, and Allen-Bradley spare parts for these systems are a frequent request.Ordering Allen-Bradley modules and drives: what we need
Send the full catalog number, the series letter and, for controllers and communication modules, the firmware revision printed on the side label. Compatibility with an existing project depends on these. For PowerFlex drives, give the complete catalog string, which encodes voltage, current rating, enclosure and options, plus the motor nameplate data. For SLC 500 parts, tell us the rack size and processor so that we can check slot and power supply loading in the manufacturer's manuals. A label photo avoids most mistakes.Browse Allen-Bradley products by category: PLC & I/O Cards, AC Drives.
