Brand: Danfoss

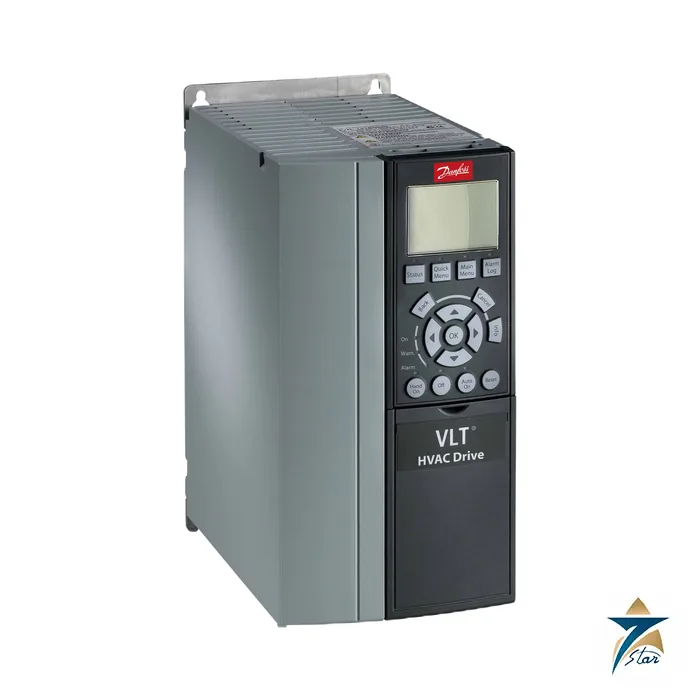

Danfoss 131B4268 FC 102 HVAC Drive 30 kW 380-480 V IP55
Description
FC 102 30 kW in IP55: a 40 HP HVAC drive for large fans and pumps
Danfoss 131B4268 is the 30 kW (40 HP) member of the FC 102 line in this lane. It is an FC-102P30KT4E55H1XG, so the enclosure is IP55 / Type 12 and the RFI filter is H1 (class A1/B). With a continuous current of 61 A at normal overload and 42.3 kVA apparent power, it drives the large supply fans of a building or the main chilled-water pumps of a district cooling plant.
The B2 frame is 664 mm high with a footprint of 243 x 261 mm and a net weight of 29.09 kg. That is a two-person lift, so plan the wall fixings or the floor stand beforehand.
Technical specifications
| Parameter | Specification |
|---|---|
| Danfoss code number | 131B4268 |
| Type code | FC-102P30KT4E55H1XGXXXXSXXXXAXBXCXXXXDX |
| Series | VLT HVAC Drive FC 102 |
| Power rating | 30 KW / 40 HP |
| Mains voltage | 380 – 480 VAC |
| Enclosure | IP55 / Type 12 |
| RFI filter | RFI Class A1/B (C1) |
| Brake chopper / safe stop | No brake chopper |
| Control panel / display | Graphical Loc. Cont. Panel |
| PCB coating | Not coated PCB |
| Mains option | No Mains Option |
| B option | No B Option |
| Frame size | B2 |
| Dimensions | 664 x 243 x 261 mm (H x W x D) |
| Continuous current, normal overload | 61 A |
| Intermittent current, normal overload | 67.1 A |
| Apparent power | 42.3 kVA |
| Power loss | 698 W |
| Net weight | 29.09 kg |
| EAN | = 5702427226272 |
Energy and mechanical considerations
On fans and centrifugal pumps the torque falls with the square of speed, so a variable-speed drive saves energy. The 110 % overload capacity quoted for normal overload suits this load profile. The loss of 698 W is the number to use when calculating plant-room cooling load.
Because the unit is IP55 the heat leaves through the back-channel heat sink and the fans, not through a sealed box; keep the cooling air paths clear and do not stack equipment above the drive. In dusty Omani sites a periodic cleaning of the heat sink should be part of the maintenance plan.
Code structure and what is not fitted
The code FC-102P30KT4E55H1XGXXXXSXXXXAXBXCXXXXDX shows a graphical control panel (G) and X for the remaining options, so there is no brake chopper, no coated PCB, no mains option and no fieldbus or I/O option card. Options such as a PROFIBUS card or a brake chopper need a different code number.
Ask us before ordering if the motor runs a hoist or a high-inertia fan that needs braking, or if the site is corrosive and needs coated boards.
A 30 kW drive on a variable-torque load typically pays back its cost in a short time because the power drawn falls steeply as speed is reduced; the saving is a derived estimate and depends on the duty cycle. For a quotation, send the motor nameplate, the cable length and the ambient temperature, so that we can check the current and the derating on the page against your site.
When you receive 131B4268, compare the code on the label with the order and with this page before installation. Report any difference immediately, keep the original packing for the first days, and store the unit dry and clean until the installation crew is ready to start.
Ordering notes
Confirm supply, motor current and ambient temperature before ordering. Seven Star LLC is an independent supplier in Muscat and can quote 131B4268. The attached file is the Danfoss FC 102 design guide AJ299549559248; more drives appear under AC drives.
Datasheets & Documents
- Design Guide Danfoss VLT HVAC Drive FC 102 Design Guide AJ299549559248, 1.1-90 kW, sizes A-C (manufacturer, unaltered) Download
Reviews (0)
About brand
Danfoss is the Danish engineering group that makes refrigeration and air-conditioning controls, heating components, variable speed drives and mobile hydraulics. Mads Clausen founded it on 1 September 1933 at his parents' farm in Nordborg on the island of Als, after making his first refrigeration expansion valve in 1932. Nordborg is still the group's headquarters, and Danfoss remains controlled by the Clausen family through the Bitten & Mads Clausen Foundation.
Danfoss company profile
| Founded | 1 September 1933, Nordborg, Denmark, by Mads Clausen (1905–1966) |
|---|---|
| First product | Thermostatic expansion valve for refrigeration |
| Headquarters | Nordborg, Denmark |
| Ownership | Private; majority controlled by the Bitten & Mads Clausen Foundation and the Clausen family |
| Size | About 42,000 employees (2023) |
| Business segments | Danfoss Climate Solutions (refrigeration, air conditioning and heating), Danfoss Drives (VLT and VACON frequency converters, soft starters), Danfoss Power Solutions (mobile and industrial hydraulics) |
| Brands in the group | VLT, VACON, Eaton Hydraulics (bought 2021), Ikusi radio remote controls |
Milestones
- 1932–1933: First expansion valve; the company is founded in Nordborg.
- 1939: 26 employees. By the 10th anniversary in 1943 the company has 179.
- 1950s: Rapid growth turns Nordborg into a Danfoss town with housing and schools for its workforce.
- 1968: Danfoss launches its VLT frequency converter, one of the first mass-produced AC drives.
- 2014: Acquisition of the Finnish drives maker Vacon, now the VACON brand.
- 2021: Acquisition of Eaton's hydraulics business.
Choosing Danfoss products
For solenoid valves, check the operating principle. A direct-operated valve such as EV210B opens even at 0 bar differential pressure. A servo-operated valve such as EV220B needs a minimum differential (typically about 0.3 bar) to open, while an assisted-lift valve such as EV250B works from 0 bar. Coils are ordered separately, so the voltage on the coil (for example 230 V AC or 24 V DC) must match the control circuit. For drives, the VLT family is split by application: FC 51 Micro Drive for small machines, FC 102 HVAC Drive for fans and pumps in buildings, FC 202 AQUA Drive for water, and FC 302 AutomationDrive for demanding industrial duty.
Where Danfoss products are used
In Oman and the GCC, Danfoss drives run pumps, fans and compressors in district cooling plants, water and wastewater stations, desalination and building HVAC. Danfoss pressure switches, transmitters and solenoid valves are built into chillers, refrigeration plants, boilers and hydraulic systems, and AB-QM valves balance chilled-water circuits in large buildings.
Danfoss products we list
| Family | Examples |
|---|---|
| Variable speed drives and soft starters | VLT Micro Drive FC 51, VLT HVAC Drive FC 102, VLT AQUA Drive FC 202, VLT AutomationDrive FC 302, FC 280, iC2-Micro, VACON NXP, MCD 600 soft starter |
| Solenoid valves and coils | EV220B, EV210B, EV250B, EV225B steam, EVR 25, AM230C coil |
| Pressure switches and thermostats | KP 37, KP 44, RT 200, CS, MBC 5000, KPS 77, RT 101 |
| Pressure transmitters | MBS 3000, MBS 5100, MBS 3250, MBS 4251 Ex, AKS 33, DST P92S SIL 2 |
| HVAC and refrigeration valves | AB-QM PICV, NovoCon S, AB-PM, AVTA, ICV, TE 5 element |
Ordering Danfoss products: what we need
Send the Danfoss code number from the label (for example 032U7115 or 131B0149) or the full drive type code (FC-302P3K0T5...). For drives, add the motor power, supply voltage and any fieldbus option. For valves, add the size, connection, medium and coil voltage. For pressure switches and transmitters, add the range, output and pressure connection.
Facts checked against Danfoss's company history pages and published company data, October 2026.
Browse Danfoss products by category: AC Drives, Pressure Instrumentation, Control Valves, Solenoid Valve.
Related products
Frequently Asked Questions
What is Danfoss 131B4268?
An FC-102P30KT4E55H1XG HVAC drive: 30 kW (40 HP), 380-480 V, IP55 / Type 12, B2 frame, class A1/B RFI filter.
What is the continuous current?
61 A at normal overload according to the store entry.
Is a brake chopper fitted?
No, the brake position in the type code is X.
What is the weight?
29.09 kg net per the store.
Which document is included?
The Danfoss FC 102 design guide AJ299549559248.
