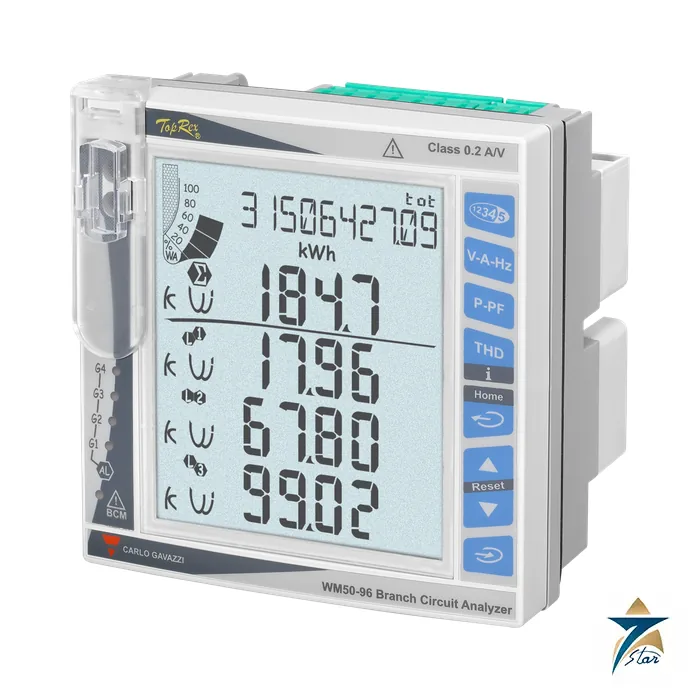

Carlo Gavazzi WM50AV53HBC Multichannel Power Analyzer

Name: Carlo Gavazzi WM50AV53HBC Power Analyzer – Datasheet & Quote
Brand: Carlo Gavazzi
SKU: WM50AV53HBC

Description

Branch-level energy monitoring from one panel instrument

The WM50AV53HBC is the main unit of the Carlo Gavazzi WM50 multichannel power analyzer for single-phase, two-phase and three-phase systems. It measures the main line (voltage, current through CTs, power, energy, harmonics) and, with TCD12 split-core current sensors, up to 96 individual load channels, so one panel instrument can monitor every outgoing circuit of a distribution board or power distribution unit.

The TCD12 sensors are connected over a digital bus, which gives good immunity to disturbances and removes the need to wire dozens of current inputs individually. The unit has a wide backlit LCD, a touch keypad, detachable terminals and an optical port for configuration, and it keeps its own event and data log without an external datalogger. Two optional accessory modules add digital I/O or analog inputs and Modbus RTU or Modbus TCP/IP communication.

Technical specifications

Parameter	Specification
Order code	WM50AV53HBC (WM50 main unit with pre-assembled MABC module)
Managed systems	Single-phase 2-wire, two-phase 3-wire, three-phase 4-wire
Voltage inputs	Direct, 120 to 277 V L-N and 208 to 480 V L-L; tolerance -20 % / +15 %; overload 1.2 Un continuous, 2 Un for 500 ms; impedance above 1.6 megaohm; 50/60 Hz
Current inputs	Via CT; ratio 1 to 2000; In 5 A, minimum 0.05 A, maximum 6 A; start-up 5 mA; overload 20 Imax for 500 ms
Auxiliary supply (datasheet)	100 to 277 V AC/DC plus or minus 10 %; up to 20 VA (AC), 9 W (DC)
Channels	Up to 8 TCD12 sensors, 96 channels maximum; TCD bus A and bus B ports
Main-line accuracy	Current plus or minus (0.2 % rdg + 2 dgt) from 0.05 In to Imax; voltage L-N plus or minus (0.2 % rdg + 1 dgt); active and apparent power plus or minus (0.5 % rdg + 1 dgt)
Energy accuracy	Main line active energy class 0.5S (EN 62053-22), reactive class 2 (EN 62053-23); channel and load energy class 2
Measurements	Main-line V, A, W/var/VA, PF, Hz, THD V and A, TDD, harmonics up to the 32nd; channel and load current, THD to the 15th, power, PF and energy
Sampling	3200 samples/s at 50 Hz; 3840 samples/s at 60 Hz; TRMS
Totalizers, tariffs and alarms	Three totalizers (gas, water, heat); up to six tariffs; 16 virtual alarms; event and data log; internal clock
Accessory modules (maximum two)	MFI6O6 (6 digital inputs, 6 static outputs); MFI6R4 (6 digital inputs, 4 relay outputs); MATPN (3 analog inputs); MC485232 (Modbus RTU, RS485/RS232); MCETH (Modbus TCP/IP)
Display / interface	Backlit LCD, touch keypad, alarm LEDs, optical port for OptoProg; UCS desktop and mobile configuration software
Housing / protection	Panel mount; front IP65 (NEMA 4X, NEMA 12), terminals IP20; detachable terminals, 2.5 mm2, 0.5 Nm
Overvoltage category / pollution degree	III / 2
Operating / storage temperature	-25 to +40 degC / -30 to +70 degC; R.H. below 90 % non-condensing at 40 degC
Weight	540 g (with packaging)
Standards	EN 61010-1, EN 61000-6-2, EN 61000-6-3, EN 62053-22, EN 62053-23, IEC 62053-31; LVD, EMC and RoHS directives

Where a multichannel analyzer fits

The usual applications are switchboards and PDUs where many loads share one incomer: data centres, hospitals, food storage, light industry and commercial buildings. One WM50 with TCD12 sensors replaces dozens of single-circuit meters and gives per-load energy data, alarms and harmonics through UCS or Modbus, for example into the Carlo Gavazzi VMU-C monitoring system.

Because the WM50 reads the main line through conventional 5 A CTs, the CT ratio and class determine the main line accuracy; the datasheet lists solid-core and split-core CTs from the CTD range. Each TCD12 sensor handles 12 channels, so eight sensors reach 96 channels.

What to confirm before ordering

The Carlo Gavazzi product page lists auxiliary supply options of 120 V AC and 220 to 240 V AC, while the datasheet states 100 to 277 V AC/DC; the datasheet figure is used above and the exact supply should be confirmed against the unit label. The ordering key in the datasheet (WM50 AV5 3 H BC) is shown graphically, so confirm the variant when requesting a quotation. TCD12 sensors, cables and accessory modules are ordered separately. For another multi-function meter, see the Janitza UMG 508, or browse the automation accessories category.

Documents and quotation

The official WM50 datasheet (Carlo Gavazzi document WM50 DS ENG, 01/12/2020) is attached. It covers the architecture, accessory modules, measurement lists, accuracy, wiring diagrams and compatible components. Send the order code, the number of channels and sensors needed, and the delivery location through the quotation form for availability from Seven Star LLC.
