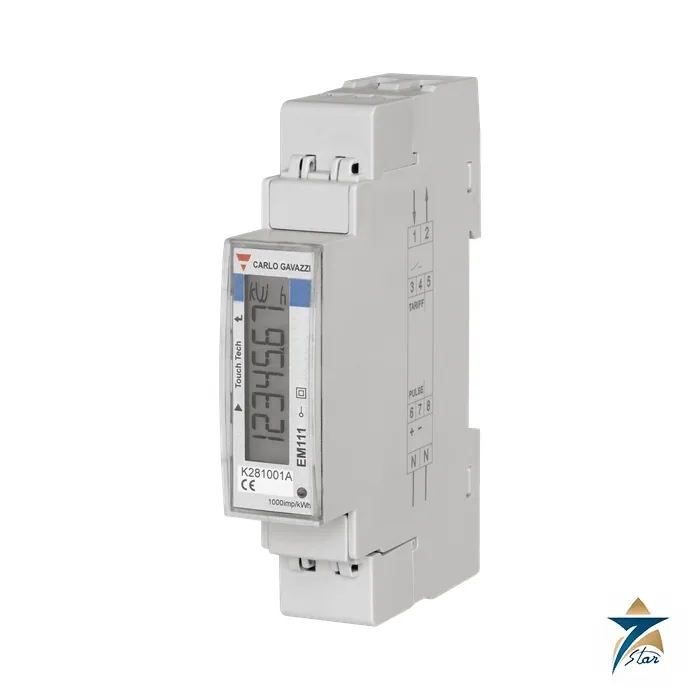

Carlo Gavazzi EM111DINAV81XS1X Single-Phase Energy Analyzer
Description
A single-phase energy analyzer with Modbus in one DIN module
The Carlo Gavazzi EM111DINAV81XS1X is the EM111 single-phase energy analyzer in its AV8 range for direct connection up to 32 A on a 230 V line-to-neutral, 1-phase 2-wire system, with a RS485 Modbus RTU port (S1) and the standard, non-MID option (X). It measures active energy to Class 1 according to EN 62053-21 with an accuracy of 0.5% of reading on current and voltage, and it shows energy on a 7-digit backlit display with a touch keypad.
Because this is the non-MID version, the datasheet states that it cannot be used for fiscal (legal) metrology; it is intended for sub-metering, cost allocation inside a plant and machine monitoring. It is self-powered from the measured line and occupies a single 17.5 mm DIN module.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / type | Carlo Gavazzi, EM111-DIN single-phase energy analyzer |
| Part number | EM111DINAV81XS1X (EM111-DIN AV8 1 X S1 X) |
| System | 1-phase, 2-wire |
| Nominal voltage | 230 V L-N, -30% +20% |
| Nominal current | 5(45) A: Ib 5 A, Imax 45 A, Imin 0.25 A; direct connection up to 32 A |
| Power supply | Self powered from the measured line |
| Active energy accuracy | Class 1 (EN 62053-21); Class B (EN 50470-3) only in MID versions |
| Reactive energy accuracy | Class 2 (EN 62053-23) |
| Current / voltage accuracy | +/-0.5% of reading |
| Measured values | kWh and kvarh (imported and exported); kWh+ by 2 tariffs; kW, kvar, V, A, PF, Hz, kW demand and demand peak |
| Display | Backlit LCD, 7-digit energy, 4-digit variables, touch keypad |
| Communication | RS485 Modbus RTU slave; 9.6 to 115.2 kbaud; address 1 to 247; 1 s data refresh |
| Digital input | 1 free-of-voltage input for tariff management |
| Start-up current / voltage | 20 mA / 161 V L-N |
| Continuous current overload | 45 A; 1350 A for 10 ms |
| LED pulse weight | 1000 pulses/kWh (maximum 11 Hz) |
| Overvoltage category | III |
| Operating temperature (X option) | -25 to +65 C, indoor, 0 to 90% RH non-condensing at 40 C |
| Storage temperature | -30 to +80 C |
| Protection degree | Front IP51; screw terminals IP20 |
| Terminals | Measuring inputs up to 6 mm2, 1.1 Nm; other terminals 1.5 mm2, 0.4 Nm |
| Housing | PBT, self-extinguishing UL 94 V-0; DIN rail; sealing covers included |
| Dimensions (W x D x H) | 17.5 x 63 x 91.5 mm (1 DIN module) |
| Approvals listed | CE, UKCA (MID only with the PF option) |
Choosing the right EM111 range code
The part number encodes the choices. AV8 is the 230 V, 5(45) A direct-connection range; AV7 is the 120 V version; AV5 and MV5 are for current transformers up to 300 A and 333 mV current sensors up to 600 A, and those two are available with the S1 output only. S1 selects RS485 Modbus, O1 a pulse output and M1 M-Bus. If the energy figures will be used for billing between tenants, the datasheet points to the MID-certified PF option instead of the X option used here.
Typical use and wiring notes
One EM111 per feeder or machine lets a PLC or an energy gateway read kWh, power, current and power factor over Modbus without extra transducers. Connect the load through the 6 mm2 measuring terminals, observe the 45 A continuous limit, and keep Modbus wiring as a daisy chain with end-of-line termination. The datasheet lists easy connection and wrong-current-direction detection, which helps when a feeder is wired the wrong way round during commissioning.
Documents and quotation
The attached Carlo Gavazzi datasheet covers the EM111 with its type selection tables, input specifications, communication details and dimensions. For a quotation on EM111DINAV81XS1X, send the quantity, the system voltage, the maximum load current, the communication needs and whether MID certification is required. Related items are listed under Automation Accessories.
