Brand: Carlo Gavazzi

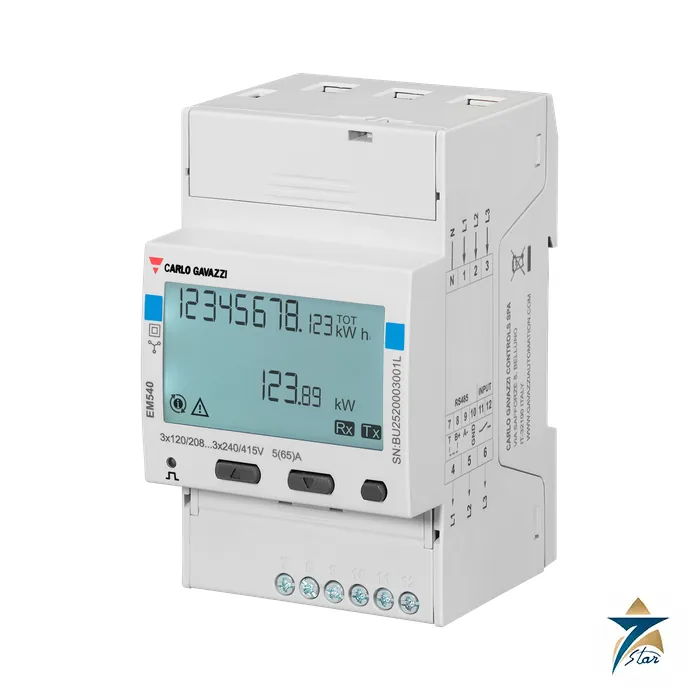

Carlo Gavazzi EM540DINAV23XS1PFA Three-Phase MID Energy Analyzer
Description
A three-phase MID energy analyzer for feeders up to 65 A
The Carlo Gavazzi EM540DINAV23XS1PFA is a direct-connection three-phase energy analyzer for two-phase, three-phase with or without neutral, and wild-leg systems. This ordering code is the EM540 AV2 range (120 to 230 V line-to-neutral, 208 to 400 V line-to-line, 5(65) A) with the RS485 Modbus RTU port (S1) and the MID option PFA, whose total imported active energy counter is the MID-certified one. Because of that certification the datasheet describes the unit as usable for fiscal metrology when sealed.
Besides energy it measures system and phase voltages, currents, power, power factor, frequency, demand values and total harmonic distortion up to the 15th harmonic, and it keeps run-hour counters. Energy is displayed with a resolution of 0.001 kWh on a backlit LCD operated with three mechanical keys.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / type | Carlo Gavazzi, EM540 energy analyzer |
| Part number | EM540DINAV23XS1PFA (EM540 DIN AV2 3X S1 PFA) |
| Systems | 2-phase (3-wire); 3-phase with neutral (4-wire); 3-phase without neutral (3-wire); wild leg |
| Voltage inputs (MID model) | 120 to 230 V L-N; 208 to 400 V L-L; 0.8 to 1.15 Un; 50 Hz |
| Current connection | Direct: base 5 A, minimum 0.25 A, maximum 65 A |
| Start-up current | 20 mA |
| Current overload | 30 x Imax (1950 A) for 10 ms |
| Power supply | Self powered, below 1.3 W / 2.6 VA |
| Active energy accuracy | Class 1 (EN IEC 62053-21); Class B (EN 50470-3, MID) |
| Reactive energy accuracy | Class 2 (EN IEC 62053-23) |
| Current accuracy | +/-0.5% of reading from 2 to 65 A |
| Voltage accuracy (L-L and L-N) | +/-0.5% of reading |
| Frequency accuracy | +/-0.1% of reading, 45 to 65 Hz |
| MID option PFA | Easy connection; total imported kWh+ is the MID-certified counter |
| Energy resolution | 0.001 kWh / kvarh / kVAh |
| Harmonic measurement | THD of current and voltages up to 15th harmonic |
| Display | Backlit LCD, 500 ms refresh; LED pulse 0.001 kWh per pulse |
| Digital input | 1, free contact: remote status, tariff, partial meter start/pause and reset |
| Communication | RS485 Modbus RTU, up to 247 devices, 100 ms or less refresh, 9.6 to 115.2 kbps |
| Operating temperature | -25 to +55 C (X and PFx models) |
| Storage temperature | -25 to +70 C |
| Protection degree | Front IP40; terminals IP20 |
| Overvoltage category / pollution degree | III / 2 |
| Terminals | Phases 2.5 to 16 mm2, 2.5 Nm; neutral 0.06 to 2.5 mm2; signals 0.2 to 1.5 mm2 |
| Housing | PBT with polycarbonate transparent cover; DIN rail, 3 DIN modules |
| Weight | 370 g (packaging included) |
| Directives and approvals listed | MID 2014/32/EU, LVD 2014/35/EU, EMC 2014/30/EU, RoHS; cULus (UL 61010) |
Reading the order code
EM540 DIN AV2 3X is the base type; the next field selects the communication or output module (O1 digital output, S1 RS485 Modbus, M1 M-Bus); the last field selects non-MID (X) or one of the MID versions PFA to PFE. PFA uses easy connection, in which power always counts as positive imported energy. Models PFB and PFC certify only the positive totaliser, while PFD and PFE certify both imported and exported energy. A separate PFx70 family extends the operating limit to +70 C.
Typical applications
The analyzer fits any low-voltage switchboard with rated current up to 65 A. It is used to split energy costs between tenants or machines, to monitor a single machine and correlate consumption with operating hours, or as a measurement point feeding a gateway. Seal the sliding terminal covers where the MID certification is used for billing, and wire the current through the 16 mm2 power terminals with the tightening torque given in the datasheet.
Documents and quotation
The attached Carlo Gavazzi datasheet covers the EM540 with measurement tables, accuracy data, communication details and the order code. For a quotation on EM540DINAV23XS1PFA, send the quantity, the system type, the maximum current, the communication needs and the metering regulations that apply on site. Related items are listed under Automation Accessories.
Datasheets & Documents
- Datasheet Carlo Gavazzi EM540 datasheet (EN) Download
Reviews (0)
About brand
Carlo Gavazzi is an international group that designs, manufactures and markets electronic control components for building and industrial automation. The company was founded in Milan in 1931, and the publicly quoted holding company is headquartered in Steinhausen, Switzerland. Seven Star LLC, an independent supplier in Muscat, lists Carlo Gavazzi sensors, solid state contactors, energy meters and monitoring relays for panels and machines.
Carlo Gavazzi product families
The portfolio published by the group covers sensors, solid state relays, energy meters and analyzers, monitoring relays, soft starters, timers, power supplies and safety devices. Each family has a datasheet with ordering keys, ratings and dimensions, so an exact part number can be checked before ordering.
Ordering Carlo Gavazzi products: what we need
Send the complete part number, the quantity, the supply or load voltage and current, the mounting style and any approvals needed. For energy meters add the system type and communication port, and for solid state relays add the load type and the ambient temperature at the panel.
Related products
Frequently Asked Questions
What does the EM540DINAV23XS1PFA measure?
Three-phase energy, voltages, currents, power, power factor, frequency, demand and THD up to the 15th harmonic.
What current can it connect directly?
Up to 65 A, with a 5 A base current and a 0.25 A minimum.
What does the PFA option mean?
MID certification with easy connection, where the total imported active energy counter is the certified one.
Which communication port is fitted?
An RS485 Modbus RTU port for up to 247 devices on one bus.
What is the operating temperature?
-25 to +55 C for this version; PFx70 models extend the limit to +70 C.
