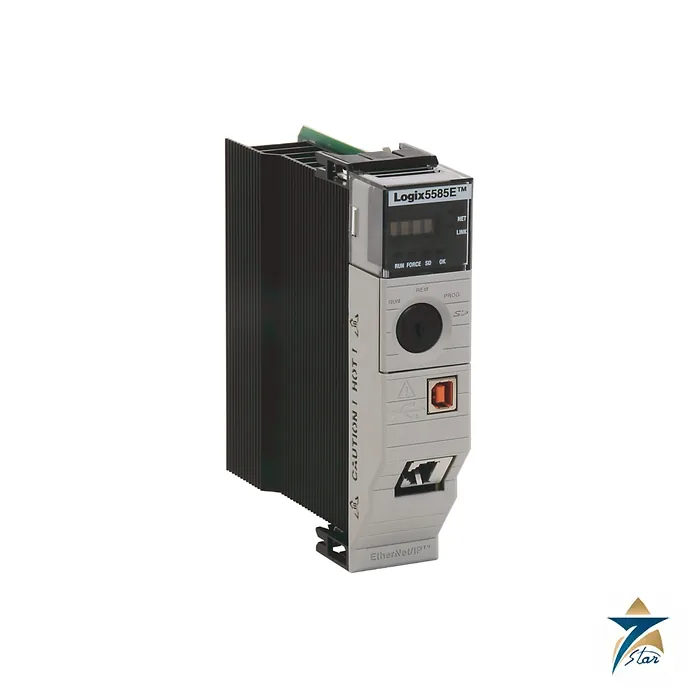

Allen-Bradley 1756-L85E ControlLogix 5580 Programmable Automation Controller

Overview

The Allen-Bradley 1756-L85E is the top-of-range controller in Rockwell Automation’s ControlLogix 5580 family, offering 40MB of user memory and support for up to 128,000 I/O points across a single Logix control system. As the flagship member of the 1756-L8xE series (L81E through L85E), the 1756-L85E targets large, high-performance applications – big batch or continuous process units, large material handling systems, and multi-cell manufacturing lines – where the combination of program size, I/O count, and task execution speed exceeds what mid-range controllers can support.

In Oman and the GCC, Seven Star LLC supplies the Allen-Bradley 1756-L85E ControlLogix 5580 controller across Oman and the wider GCC, with locally available application engineering support for new automation projects and legacy ControlLogix migrations.

Operating Principle

The Allen-Bradley 1756-L85E executes user logic – ladder diagram, structured text, function block, and sequential function chart – inside a single unified Logix control engine shared across up to 32 configurable tasks, combining one continuous task with multiple periodic and event tasks and up to 1000 programs per task. Rather than scanning I/O and logic as separate sequential steps, the ControlLogix 5580 platform runs a real-time, deterministic operating system that services I/O updates, motion control, safety instructions (on the GuardLogix variant), and communication in parallel, so the controller can hold tight scan-time consistency even as the application grows toward its 40MB memory ceiling.

Onboard dual-port EtherNet/IP, together with the controller’s integral Common Industrial Protocol (CIP) stack, lets the 1756-L85E communicate directly with I/O modules, drives, HMIs, and other controllers over the same network used for plant-wide data collection, removing the need for separate communication modules in many architectures. This tight integration of logic execution, motion, safety, and networking in one controller is what allows the 1756-L85E to manage very large I/O counts without a proportional increase in system complexity.

Engineering Design of the Allen-Bradley 1756-L85E

The Allen-Bradley 1756-L85E is housed in the standard ControlLogix 1756 chassis form factor and physically shares its enclosure, connector, and mounting footprint with every other 1756-L8xE controller, so upgrading from a smaller L81E/L82E/L83E to the L85E for memory or I/O headroom does not require chassis or panel rework. The controller occupies a single chassis slot, drawing backplane power from any compatible 1756 power supply (such as the 1756-PA72 or 1756-PB72), and features a color LCD status display, USB programming port, and dual RJ45 EtherNet/IP ports on the front face.

Non-volatile memory retains the user program and tags without a battery on standard variants, and an SD card slot supports project backup, firmware updates, and data logging. The controller is programmed exclusively through Rockwell’s Studio 5000 Logix Designer environment, which provides a single engineering environment shared with GuardLogix safety controllers and CompactLogix platforms – simplifying standardization across a plant that runs a mix of controller sizes.

Key Features

The Allen-Bradley 1756-L85E is built for the largest and most demanding Logix control applications:

• 40MB of user memory, the largest in the ControlLogix 5580 lineup, supporting up to 128,000 digital and 4,000 analog I/O points.
• Dual onboard EtherNet/IP ports with embedded switch technology for linear, star, or ring network topologies without an external switch.
• Single unified Logix engine supports ladder, structured text, function block, and sequential function chart in one project.
• 32 configurable tasks (continuous, periodic, event) with up to 1000 programs per task for large, modular application architectures.
• Shares chassis footprint and backplane compatibility with the entire 1756-L8xE and legacy 1756 controller lineup for straightforward hardware upgrades.
• Integrated motion control and CIP Motion support reduce the need for separate motion controllers on large coordinated-axis applications.
• SD card slot enables project backup, firmware updates, and onboard data logging without a separate PC connection.
• Programmed through Studio 5000 Logix Designer, the same environment used across CompactLogix and GuardLogix platforms.

Industrial Applications

The Allen-Bradley 1756-L85E is specified for large-scale process and manufacturing control across Oman’s industrial base, including refinery and petrochemical process units, large district cooling plants managing dozens of chillers and pumps, and material handling and batching systems in cement and mining operations where I/O counts and program complexity exceed what mid-range CompactLogix or smaller ControlLogix controllers can support. Its high memory ceiling also suits multi-cell manufacturing lines and water/wastewater treatment plants requiring extensive historian and diagnostic data logging alongside real-time control.

In Oman and the GCC, Seven Star LLC supplies the 1756-L85E to EPC contractors, systems integrators, and plant automation teams across the Sohar and Salalah economic zones and the wider GCC, supporting both greenfield automation projects and the migration of legacy ControlLogix (1756-L6x/L7x) systems to the current 5580 platform.

Technical Specifications

The Allen-Bradley 1756-L85E key specifications, alongside its sibling models in the same ControlLogix 5580 series, are summarized below:

Sibling controllers in the 1756-L8xE series, sharing the same chassis and Studio 5000 environment:

Request a Quote for Allen-Bradley 1756-L85E

Seven Star LLC invites systems integrators, EPC contractors, and plant automation engineers across Oman and the GCC to submit a formal RFQ for the Allen-Bradley 1756-L85E ControlLogix 5580 programmable automation controller. In Oman and the GCC, Seven Star LLC confirms availability and lead time at quotation, provides the full 1756-L85E technical datasheet on request, and connects customers directly with the automation division for architecture sizing and legacy ControlLogix migration support.
