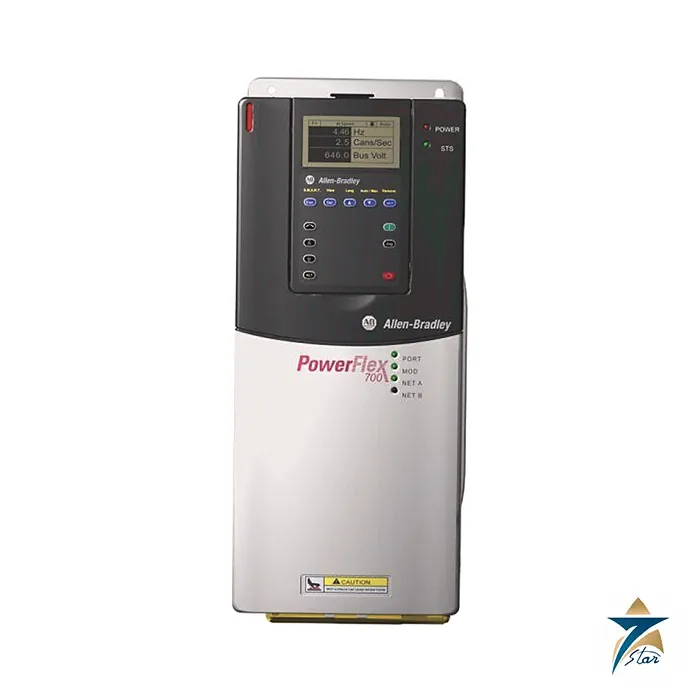

Allen-Bradley 20BD014A3AYNANC0 PowerFlex 700 7.5 kW Drive
Description
Frame 1 PowerFlex 700 rated 10 Hp on 480V AC three-phase
The Allen-Bradley 20BD014A3AYNANC0 is a PowerFlex 700 AC drive in frame 1, with 480V AC three-phase three-phase input. A 10 Hp, 480V rating is typical for North-American-rated machinery and skids; vector control suits applications with high dynamic torque demands.
The 16 characters carry the options: series 20B, voltage class D (480V), rating 014, then A3AYNANC0 for the Type 1 enclosure, LCD keypad, brake IGBT, CE filter and vector control.
Technical specifications
| Parameter | Specification |
|---|---|
| Catalog number | 20BD014A3AYNANC0 |
| Family | Allen-Bradley PowerFlex 700 AC drive, bulletin 20B |
| Supply | 480V AC three-phase |
| Frame | 1 |
| ND rating | 7.5 kW / 10 Hp |
| HD rating | 5.5 kW / 7.5 Hp |
| Output current | 14 A continuous; 16.5 A 60 s; 22 A 3 s |
| Input rating | 12.5 A, 10.4 kVA |
| Enclosure | IP20, NEMA/UL Type 1 with conformal coat |
| Operator interface | LCD display, full numeric keypad |
| Brake / filter | Brake IGBT; CE filter with CM choke |
| Control | Vector control option (position 15 = C) |
| Overload | 110% for 60 s, 150% for 3 s |
| Ambient, Type 1 | 0 to 40 C; storage -40 to +70 C |
| Altitude / humidity | 1000 m without derating / 5 to 95% non-condensing |
Ratings and overload data from 20B-TD001
The 20B-TD001 rating tables give 14 A continuous output, 16.5 A for 60 seconds and 22 A for 3 seconds (110% for one minute and 150% for three seconds). Input is 12.5 A at 10.4 kVA. On the 480V ladder it follows 20BD011 (7.5 Hp, 11 A, frame 0) and precedes 20BD022 (15 Hp, 22 A, frame 1).
Frame 1 is the first size above the frame 0 group. In the datasheet, regulation is 0.5% over 80:1 for sensorless vector, 0.1% over 120:1 for full vector without feedback and 0.001% with an encoder, while torque regulation without feedback is plus or minus 5%.
Installation, environment and protection
Environment: 0 to 40 C in the Type 1 enclosure, up to 50 C as an open-type drive, storage from -40 to +70 C, altitude to 1000 m and humidity between 5 and 95% without condensation. Contaminated air at pollution degree 3 or 4 calls for IP54 / Type 12.
Protection: 140M-C2E-C16, 140M-D8E-C16 and 140M-F8E-C16 motor protection breakers among the listed options. The vector option brings class 10 overload and motor over-temperature protection per NEC 430.126(A)(2).
Ordering and documents
When requesting a quotation give the whole number 20BD014A3AYNANC0. Option boards for I/O, feedback and networks are not included. The linked file is the 20B-TD001 technical data publication.
Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.
A short checklist helps when asking about 20BD014A3AYNANC0: motor power and current, supply voltage, required enclosure, expected ambient temperature, control wiring or network (digital inputs, analog reference or fieldbus) and any braking requirement. We can then compare your needs with the listed ratings (PowerFlex 700 10 Hp (7.5 kW heavy duty) 480V AC drive, 14 A, frame 1) and tell you what is still missing.
How we work: Seven Star LLC is an independent supplier based in Muscat. We answer each request by email or phone, confirm the exact catalog number against the manufacturer documents, and tell you openly when a value must be verified with the manufacturer before ordering.
Browse more items in AC Drives on our site, or send us the part number for a quotation.
