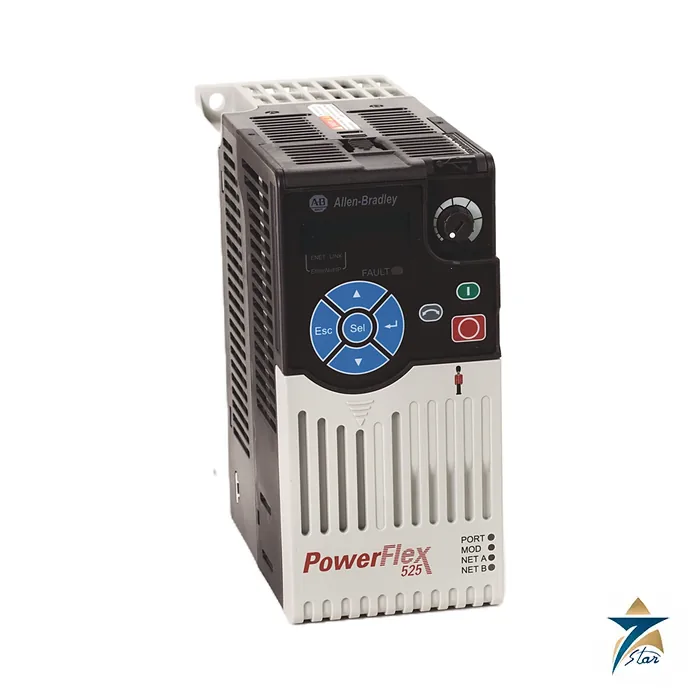

Allen-Bradley 25B-D2P3N104 PowerFlex 525 0.75 kW (1 Hp) AC Drive

A 0.75 kW PowerFlex 525 drive for small three-phase motors

The Allen-Bradley 25B-D2P3N104 is a PowerFlex 525 AC drive rated 1 Hp (0.75 kW) at 380 to 480V AC, three-phase, with 2.3 A of output current. The technical data gives the same 1 Hp (0.75 kW) figure for normal duty and heavy duty, so one catalog number covers both duty descriptions.

The PowerFlex 525 adds an embedded EtherNet/IP port and Safe Torque Off to the basic 523 platform. This version has no integral EMC filter, which suits panels that already use a line filter or machines where emission class is handled elsewhere.

Technical specifications

Reading the catalog number 25B-D2P3N104

Each position in 25B-D2P3N104 has a meaning. 25B is the PowerFlex 525 family, D is a 480V AC three-phase supply, 2P3 is the 2.3 A output rating, and N is the IP20 NEMA / Open Type enclosure. The following 1 selects the standard interface module, the 0 means no EMC filter, and the final 4 is the standard braking option.

Changing the 0 to a 1 gives 25B-D2P3N114, the same 2.3 A frame A drive with the integral filter; the two are separate orderable products with slightly different loss figures.

Control wiring is flexible for a drive this small. The technical data lists six programmable digital inputs plus a dedicated stop input, two analog inputs, two relay outputs and two optocoupler outputs, and an encoder input with a 12V, 250 mA supply for closed loop velocity vector control. A vertical, open-type mounting is rated to 50 °C without derating.

Protection, sizing and installation

For UL 61800-5-1 applications the technical data recommends Class CC, J or T fuses of 10 A, a 100-C09 or 100-E09 contactor and a 140MT-C3E-B40 circuit breaker. Under IEC rules the fuse range is 6 A minimum to 10 A maximum. The input rating is 2.9 kVA and 3.2 A at the top of the voltage range.

Frame A measures 72 mm wide, 152 mm high and 172 mm deep and weighs 1.1 kg, with DIN rail or screw mounting. Total losses are 37 W, so heat in the cabinet is modest.

Installing the 25B-D2P3N104 in a control panel

Mount the frame A drive vertically on a DIN rail or back plate, with clear space above and below so that air can move through the heat sink. Group it with other low-power devices rather than directly above a larger drive or transformer whose warm exhaust would raise the inlet temperature. Because this catalog number has no integral EMC filter, plan the earthing and cable routing with care: use a shielded motor cable, bond the shield at both ends with suitable clamps, keep the motor leads separated from control and network cables, and fit an external line filter where the installation standard for the site calls for one.

Connect the protective earth before any other terminal, size the supply cable and protection according to the recommendations already listed above, and tighten terminals to the torque given in the Rockwell installation instructions. If the drive will use Safe Torque Off, wire the safety inputs to the safety relay or controller as described in the user manual and remove the factory jumper only when that circuit is in place.

First start-up and parameter setup

On first power-up, enter the motor nameplate data before anything else: rated voltage, current, frequency, speed and power. Choose the control method that suits the load, set the acceleration and deceleration times, and define the start source and speed reference, whether from terminals, the keypad or EtherNet/IP. Run an autotune where the control mode needs it, with the motor uncoupled if the procedure requires that. Check the direction of rotation at low speed before coupling the machine, and save a copy of the final parameter set with Connected Components Workbench or a similar tool so that a replacement drive can be loaded quickly.

Operating conditions in Oman and the GCC

Control panels in Omani and Gulf plants frequently sit in hot plant rooms or outdoors under the sun, and the IP20 open-type drive depends entirely on the enclosure for protection. Size the panel cooling for the summer peak, not for an average day, and include the heat from every device in the panel together with the losses of this drive. Filtered fans need their filters changed often in sandy locations, otherwise airflow drops and the drive temperature rises. Where an air conditioner is used, watch for condensation when cold air meets humid coastal conditions, and keep the drive away from the conditioner outlet.

Maintenance and fault prevention

During planned shutdowns, isolate the supply, wait for the DC bus to discharge as described in the manual, and then inspect the drive. Remove dust from the heat sink and fan path with a vacuum or dry, clean air, retighten power terminals, and look for discoloured insulation that would indicate a loose joint. Review the fault log in the drive; repeated overcurrent or overvoltage trips usually point to the application, such as a ramp time that is too short or a load that regenerates energy, rather than to the drive itself.

Quotation checklist

Send the full 25B-D2P3N104 reference, the motor nameplate, the supply voltage and whether a keypad, conduit box or external filter is needed. Confirm the exact catalog number, firmware series and lead time before ordering. Related drive products are shown in AC Drives and PowerFlex 525 AC drive.
