Brand: Advantech

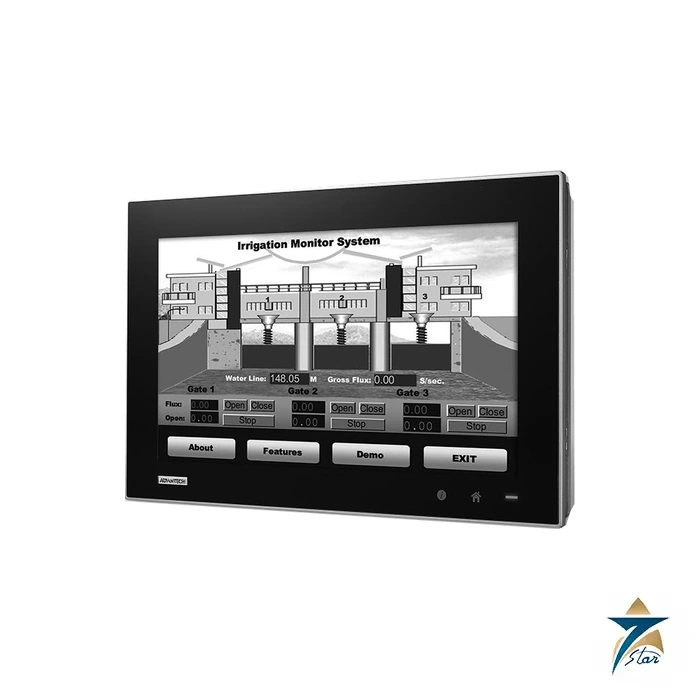

Advantech TPC-1551WP-E3AE Panel PC
Description
A 15.6-inch operator interface with an Atom processor
The Advantech TPC-1551WP-E3AE is a fanless industrial panel computer with a 15.6-inch WXGA TFT display and projected-capacitive multi-touch. The E3AE configuration combines an Intel Atom E3827 processor at 1.75 GHz with 4 GB DDR3L memory pre-installed.
Its 1366 × 768 display provides a larger operator screen for an industrial application or thin-client interface. The true-flat front, aluminium-alloy bezel and front-side IP66 protection suit a panel-mounted arrangement when the cabinet and mounting meet the installation requirements.
Technical specifications
| Parameter | Specification |
|---|---|
| Exact ordering reference | TPC-1551WP-E3AE |
| Processor | Intel Atom E3827, 1.75 GHz |
| Installed memory | 4 GB DDR3L 1600 MHz SODIMM |
| Display / resolution | 15.6-inch WXGA TFT LED LCD / 1366 × 768 |
| Touch technology | Projected capacitive, multi-touch |
| Cooling | Fanless |
| Ethernet | 2 × 10/100/1000BASE-T |
| Serial / USB | 1 × RS232; 1 × RS232/RS422/RS485; 1 × USB 3.0; 1 × USB 2.0 |
| Power input / typical consumption | 24 V DC ±20% / 48 W typical |
| Operating ambient | 0 to +55 °C |
| Front-panel protection | IP66 |
| Overall dimensions | 419.7 × 269 × 61.9 mm |
| Panel cutout | 412.4 × 261.7 mm |
| Net mass | 5 kg |
Communication and configuration choices
The computer provides two Gigabit Ethernet connections, an RS232 port, a configurable RS232/RS422/RS485 port, USB 3.0 and USB 2.0. A full-size mini PCIe slot supports expansion arrangements; optional iDoor modules require the associated extension equipment.
The CFast slot and optional SATA SSD arrangement should be specified with the required storage media. The external power adapter, mounting kits and extension kit are separately listed accessories. Software images and application licences also need a defined scope; a historical operating-system list does not establish the software supplied with a particular enquiry.
Mounting dimensions and quotation
Overall dimensions are 419.7 × 269 × 61.9 mm. The manufacturer drawing gives a 412.4 × 261.7 mm panel cutout, so a replacement assessment should include both the cabinet opening and clearance behind the panel. Front IP66 does not establish protection for the exposed rear housing.
Send the TPC-1551WP-E3AE reference, quantity, cabinet cutout, required storage, operating system and HMI software, together with any power or mounting accessories. The attached manufacturer datasheet includes the exact E3AE ordering entry and mounting drawing. Browse Industrial Computers for related equipment.
Datasheets & Documents
- Datasheet Advantech TPC-1551WP Datasheet — 27 July 2016 Download
Reviews (0)
About brand
ADAM modules are how many instrument and SCADA engineers first come across Advantech. The Taiwanese company, founded in 1983 and based in Taipei, makes industrial computers, remote I/O and communication hardware. Seven Star LLC supplies Advantech automation products to system integrators and plant teams in Oman, and this page lists three typical items: an ADAM-6000 Ethernet I/O module, an ADAM-4000 serial converter and an IPC rackmount chassis.
Advantech ADAM and IPC products listed here
The ADAM-6017 is an 8-channel analog input module from the ADAM-6000 Ethernet I/O family. It brings voltage and current signals onto a network and is read by SCADA or PLC software over Modbus TCP. The ADAM-4520 belongs to the ADAM-4000 serial family and converts RS-232 to isolated RS-422 or RS-485, a common fix for linking a PC or panel to field devices. The IPC-623 is a 4U, 20-slot rackmount chassis that houses a backplane, CPU card and expansion cards for control room computers.
Ordering Advantech hardware: what we need
Send the full part number with its suffix. Advantech adds letters after the model, as in ADAM-6017-D, to mark the hardware revision, and existing configurations sometimes depend on it. For an IPC chassis, state the backplane, power supply and drive bay arrangement, since these are ordered as specific versions. We supply across the GCC and check part numbers against Advantech documentation.
Browse Advantech products by category: Industrial Computer, PLC & I/O Cards, Industrial Communications.
Related products
Frequently Asked Questions
What screen resolution does this model use?
The 15.6-inch display has a maximum resolution of 1366 × 768 pixels.
What memory is specified for E3AE?
The exact ordering entry specifies 4 GB DDR3L pre-installed.
What supply does it require?
The published input is 24 V DC ±20%, with 48 W typical consumption. An external power adapter is a separately listed option.
What panel cutout is specified?
The manufacturer drawing gives 412.4 × 261.7 mm. Also check overall dimensions and rear clearance.
Does the base reference include iDoor modules and software licences?
Those requirements must be specified separately. Optional iDoor modules need the corresponding extension equipment, and the required software scope should be included in the enquiry.
