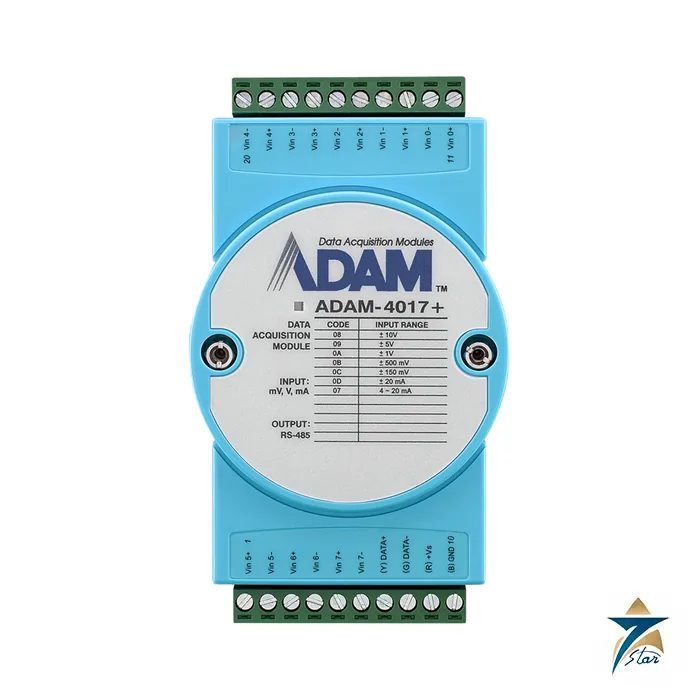

Advantech ADAM-4017+ 8-Channel Analog Input Module RS-485
Description
An 8-channel analog input module for RS-485 Modbus networks
The Advantech ADAM-4017+ is an 8-channel differential analog input module from the ADAM-4000 RS-485 remote I/O family. It reads millivolt, volt and milliamp signals and returns them over RS-485 using either the ADAM ASCII command set or Modbus/RTU, so a PLC, SCADA gateway or PC can poll field signals such as 4-20 mA transmitters from one two-wire bus. Each channel can be configured independently, and a system and communication watchdog recovers the module if it hangs.
Technical specifications
| Parameter | Specification |
|---|---|
| Channels | 8 differential, channel-independent configuration |
| Input type | mV, V, mA |
| Input range | 0 to 150 mV, 0 to 500 mV, 0 to 1 V, 0 to 5 V, 0 to 10 V; plus or minus 150 mV, 500 mV, 1 V, 5 V, 10 V; plus or minus 20 mA, 0 to 20 mA, 4 to 20 mA |
| Input impedance | Voltage 20 megaohm; current 120 ohm |
| Resolution | 16-bit |
| Sampling rate | 10 samples per second (total) |
| Accuracy | Voltage mode plus or minus 0.1 percent or better; current mode plus or minus 0.2 percent or better |
| Isolation voltage | 3,000 VDC |
| Overvoltage protection | Plus or minus 35 VDC |
| CMR / NMR at 50/60 Hz | 120 dB / 100 dB |
| Span drift | Plus or minus 25 ppm per degC (typical) |
| Zero drift | Plus or minus 6 microvolt per degC |
| Built-in protection | TVS/ESD |
| Interface and protocols | RS-485; ASCII command and Modbus/RTU |
| Watchdog timer | System (1.6 second) and communication |
| Power input | Unregulated 10 to 30 VDC |
| Power consumption | 1.2 W at 24 VDC |
| Connectors | 2 x 10-pin plug-in screw terminal blocks (14 to 22 AWG) |
| Operating temperature | -10 to 70 degC |
| Storage temperature | -25 to 85 degC |
| Operating humidity | 5 to 95 percent RH |
Using the ADAM-4017+ on a field bus
Set the input range for each channel to match the sensor: a 4-20 mA loop uses the current range with the module input impedance of 120 ohm, while 0 to 10 V transmitters use a voltage range. Burnout detection applies to 4 to 20 mA inputs per the datasheet. Because the module shares a datasheet with the ADAM-4018+ (thermocouple) and ADAM-4019+ (universal) variants, check the model code when ordering: the ADAM-4017+ is the voltage and current version and has no thermocouple input. The ordering information lists the part as ADAM-4017+-F. For Ethernet-based I/O see the Advantech ADAM-6017; more modules are listed under PLC and I/O cards.
Documents and quotation
The attached Advantech datasheet (last updated 22 September 2023) covers the ADAM-4017+, ADAM-4018+ and ADAM-4019+. Confirm the number of channels, input ranges, the network protocol and the supply voltage with your design before ordering, then send the quantity for a quotation.
