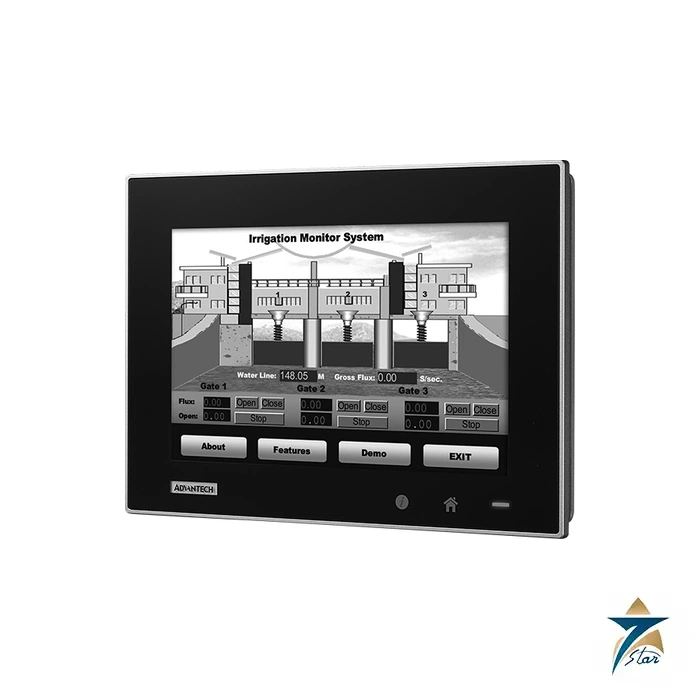

Advantech TPC-1051WP-E3AE Panel PC
Description
Fanless computing behind a 10.1-inch touch interface
The Advantech TPC-1051WP-E3AE combines a 10.1-inch projected-capacitive touch display with an Intel Atom E3827 dual-core processor running at 1.75 GHz. The exact E3AE ordering entry specifies 4 GB DDR3L memory pre-installed. Its compact, fanless construction is intended for an industrial operator interface or thin-client installation.
The true-flat front has IP66 protection and a die-cast aluminium-alloy bezel. The rear housing and the mounting arrangement require their own installation assessment; front-panel protection is not a whole-computer ingress rating.
Technical specifications
| Parameter | Specification |
|---|---|
| Exact ordering reference | TPC-1051WP-E3AE |
| Processor | Intel Atom E3827, dual core, 1.75 GHz |
| Installed memory | 4 GB DDR3L 1600 MHz SODIMM |
| Display / resolution | 10.1-inch WXGA TFT LED LCD / 1280 × 800 |
| Touch technology | Projected capacitive, multi-touch |
| Cooling | Fanless |
| Ethernet | 2 × 10/100/1000BASE-T |
| Serial / USB | 1 × RS232; 1 × RS232/422/485; 1 × USB 3.0; 1 × USB 2.0 |
| Power input / typical consumption | 24 V DC ±20% / 36 W typical |
| Operating ambient | −20 to +55 °C |
| Front-panel protection | IP66 |
| Overall dimensions | 283.1 × 202.3 × 61.4 mm |
| Panel cutout | 274.6 × 193.8 mm |
| Net mass | 2.56 kg |
Connections, storage and expansion
Two Gigabit Ethernet connections, two serial ports and USB 3.0/2.0 provide interfaces for the computer installation. One serial port is RS232, while the other supports RS232/RS422/RS485. Select the software and controller connection for the actual application rather than assuming that a hardware port includes an HMI runtime licence.
A CFast slot and an optional 2.5-inch SATA SSD arrangement provide storage choices. The 8 GB memory option, storage media, external power supply and iDoor extension equipment are separately identified options. Advantech lists the 32 GB CFast and HMI-runtime package under a distinct bundle reference, so that package should not be assumed from E3AE alone.
Panel mounting and replacement enquiries
The published overall dimensions are 283.1 × 202.3 × 61.4 mm, while the panel cutout is 274.6 × 193.8 mm. These are different measurements: compare the cutout, rear clearance and mounting drawing before replacing an installed terminal.
For a quotation, provide TPC-1051WP-E3AE, quantity, storage and operating-system requirements, software licence needs and the current cabinet opening. Include the existing unit label and required power or mounting accessories. Browse Industrial Computers for related equipment.
Datasheets & Documents
- Datasheet Advantech TPC-1051WP Datasheet — 8 May 2024 Download
Reviews (0)
About brand
ADAM modules are how many instrument and SCADA engineers first come across Advantech. The Taiwanese company, founded in 1983 and based in Taipei, makes industrial computers, remote I/O and communication hardware. Seven Star LLC supplies Advantech automation products to system integrators and plant teams in Oman, and this page lists three typical items: an ADAM-6000 Ethernet I/O module, an ADAM-4000 serial converter and an IPC rackmount chassis.
Advantech ADAM and IPC products listed here
The ADAM-6017 is an 8-channel analog input module from the ADAM-6000 Ethernet I/O family. It brings voltage and current signals onto a network and is read by SCADA or PLC software over Modbus TCP. The ADAM-4520 belongs to the ADAM-4000 serial family and converts RS-232 to isolated RS-422 or RS-485, a common fix for linking a PC or panel to field devices. The IPC-623 is a 4U, 20-slot rackmount chassis that houses a backplane, CPU card and expansion cards for control room computers.
Ordering Advantech hardware: what we need
Send the full part number with its suffix. Advantech adds letters after the model, as in ADAM-6017-D, to mark the hardware revision, and existing configurations sometimes depend on it. For an IPC chassis, state the backplane, power supply and drive bay arrangement, since these are ordered as specific versions. We supply across the GCC and check part numbers against Advantech documentation.
Browse Advantech products by category: Industrial Computer, PLC & I/O Cards, Industrial Communications.
Related products
Frequently Asked Questions
What memory is installed in E3AE?
The ordering entry specifies 4 GB DDR3L pre-installed. The 8 GB memory option is separate.
Is the touchscreen resistive?
No. The TPC-1051WP uses projected-capacitive multi-touch technology.
Are an SSD and external power adapter automatically included?
They are separately identified options. Specify the required storage media and power accessories in the enquiry.
What cabinet opening is specified?
The manufacturer drawing lists a 274.6 × 193.8 mm panel cutout. Overall dimensions are larger and should not be used as the cutout.
Does IP66 apply to the rear housing?
The datasheet states front-panel IP66 protection. Assess the rear enclosure and mounting separately.
