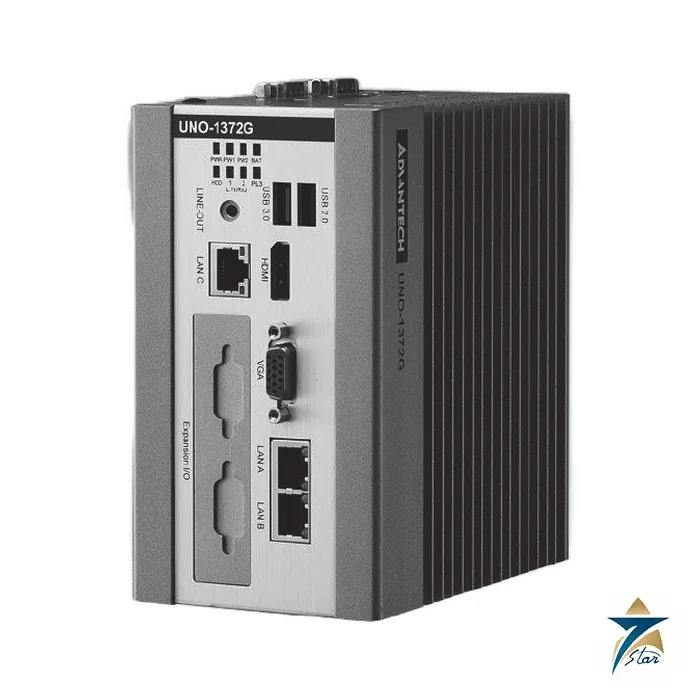

Advantech UNO-1372G Atom Quad-Core DIN-Rail Control PC with 3 x GbE and 8 DI/O
Description
A compact DIN-rail PC for control cabinets with isolated digital I/O
The Advantech UNO-1372G is a small-size control cabinet PC built around the Intel Atom E3845 quad-core processor at 1.91 GHz. It mounts on a DIN rail or a wall, runs without a fan and combines three Gigabit Ethernet ports, two serial ports, three USB ports, VGA and HDMI outputs and four isolated digital inputs and four isolated digital outputs in one aluminium housing.
Two features set it apart from a plain mini PC. First, the 4-pin terminal block accepts two power inputs, so a failure of one supply does not stop the computer. Second, the iDoor slot takes small modules that turn the unit into a protocol gateway, for example PROFINET or PROFIBUS, or a communication gateway with cellular, GPS or Wi-Fi cards. LAN redundancy (teaming) is listed as a feature.
The datasheet is dated May 2023 and describes an Atom platform, so the operating system list still includes Windows 7, Windows 8, WES7 and AdvLinux alongside Windows 10.
Technical specifications
| Parameter | Specification |
|---|---|
| Processor | Intel Atom E3845 1.91 GHz, 2 MB L2 cache (integrated SoC) |
| Memory | Built-in 4 GB DDR3L 1333 MHz, up to 8 GB |
| Graphics | Intel HD Graphics; 1 x VGA and 1 x HDMI 1.4a, each up to 1920 x 1080 at 60 Hz |
| Ethernet | LAN A and B Intel i210-IT GbE (802.1Qav, 802.1AS, 802.3az); LAN C Realtek RTL8111E GbE |
| Serial ports | 1 x RS-232 (DB9) and 1 x RS-422/485 (DB9, auto flow control), 50 bps to 115.2 kbps |
| USB / audio | 2 x USB 2.0, 1 x USB 3.0; line-out |
| Isolated digital I/O | 4 digital inputs and 4 digital outputs, 2500 VDC isolation |
| Storage / expansion | 1 x mSATA, one 2.5 inch SATA bay (9.5 mm drive), 2 x full-size mPCIe, iDoor slot |
| Power input | 9 to 36 VDC (12 or 24 VDC recommended), dual input on a 4-pin terminal block |
| Power consumption | 24 W typical, 50 W maximum |
| Dimensions (W x D x H) | 85 x 139 x 152 mm |
| Weight | 1.6 kg |
| Operating temperature | -20 to 60 degrees C at 5 to 85% RH with 0.7 m/s airflow (industrial SSD); storage -40 to 85 degrees C |
| Shock / vibration | 50 G half sine 11 ms; 5 Grms random 5 to 500 Hz |
| Ingress protection | IP40 |
| Certification | CE, FCC, UL, CCC, BSMI |
| Operating systems | Windows 7, 8 and 10, WES7, AdvLinux |
Ordering code, iDoor modules and accessories
The datasheet gives one ordering code, UNO-1372G-E3AE: Atom quad-core 1.91 GHz, 4 GB memory, three LAN ports and two mPCIe slots. Optional embedded images are listed for Windows 10 LTSC (Entry), AdvLinux, Windows Embedded Standard 7 (x86 and x64) and Windows Embedded Compact 7.
iDoor and mPCIe modules named in the sheet include a CFast slot card (PCM-23C1CF-BE), 2-port Gigabit Ethernet (PCM-24R2GL-AE), 2-port USB 3.0 (PCM-24U2U3-BE), 2-port isolated RS-422/485 (PCM-24D2R4-BE), 4-port RS-422/485 (PCM-24D4R4-BE), a Wi-Fi card (PCM-24S2WF-BE) and Hilscher netX fieldbus cards for PROFINET IO-controller or device (PCM-26R2PN-MAE and SAE) and PROFIBUS master or slave (PCM-26D1DB-MAE and SAE). A 60 W, 24 V, 2.5 A supply (PWR-247-DE) and regional power cords are the listed accessories.
What to confirm before ordering
Check the processor generation against your software, because this is an older low-power platform. Specify the operating system image, the iDoor module and the supply voltage. Advantech notes that optional modules can add certification requirements, so ask for compliance details if a radio or fieldbus card is fitted.
How the Advantech UNO-1372G works
The PC runs an operating system on the Atom quad-core processor and has no fan. Its aluminium housing carries the heat away. Field signals come in through the isolated digital inputs and go out through the outputs. The serial and Ethernet ports link it to the machines and to the network.
Where the UNO-1372G is used
- Control cabinets
- Protocol gateways with iDoor modules
- Edge data collection
- Machine monitoring
- Small automation controllers
Selection checklist for the UNO-1372G
- Memory and storage size
- Operating system
- Number of network ports
- Serial ports needed
- Isolated I/O count
- iDoor module for a gateway
- Power source of 9 to 36 V DC
- Cabinet temperature
Installation, commissioning and maintenance notes for the UNO-1372G
Clip the PC onto a DIN rail or fix it to a wall. Leave air space around the housing. Wire both power inputs for backup. Connect the network, the serial and the I/O cables. Install the operating system and the drivers, then test the I/O.
Requesting a quotation for the Advantech UNO-1372G
Please send the memory, the storage, the operating system and the iDoor modules. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
UNO-1372G processor
The processor is an Intel Atom E3845 at 1.91 GHz.
UNO-1372G memory
It has 4 GB of DDR3L built in, expandable to 8 GB.
UNO-1372G network ports
It has three Gigabit Ethernet ports.
UNO-1372G serial ports
One RS-232 and one RS-422/485 port are fitted.
UNO-1372G digital I/O
Four isolated inputs and four isolated outputs have 2500 VDC isolation.
UNO-1372G display outputs
VGA and HDMI outputs run up to 1920 x 1080.
UNO-1372G power input
The dual power input is 9 to 36 VDC, and the power use is 24 W typical.
UNO-1372G dimensions
The size is 85 x 139 x 152 mm and the weight is 1.6 kg.
UNO-1372G operating temperature
The range is minus 20 to plus 60 degrees C with airflow.
PC records for the UNO-1372G
Record the serial number, the operating system version and the date of each backup.
Choosing the right UNO-1372G iDoor module
Choose a PROFINET or PROFIBUS iDoor for a protocol gateway, and a cellular or Wi-Fi card for remote links.
Documents and quotation
The attached datasheet is the two-page Advantech UNO-1372G sheet of May 2023. Send the part number, image and module list to Seven Star LLC, and browse similar machines in Industrial Computers. Availability is confirmed at quotation.
