Axiomtek eBOX710A Fanless Embedded System

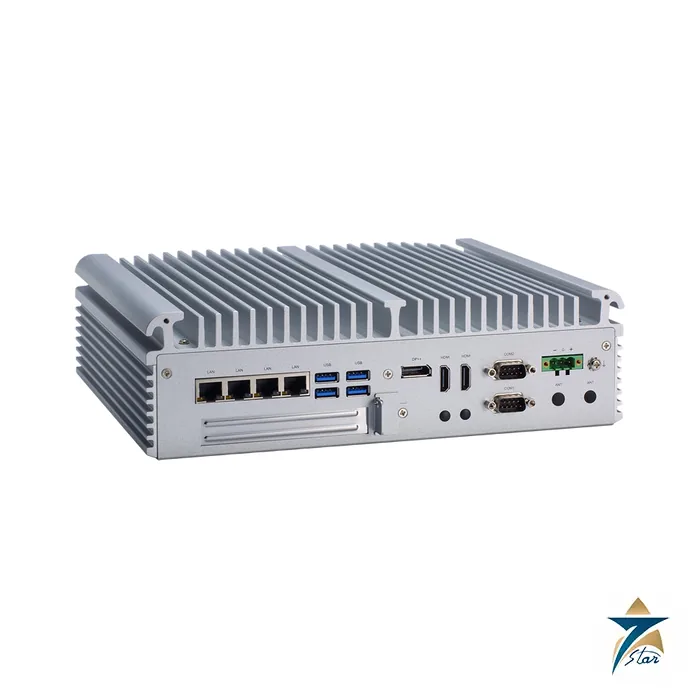

A fanless LGA1200 system with a PCIe x4 slot and four GbE ports

The Axiomtek eBOX710A is a fanless embedded system with an LGA1200 socket for 11th and 10th Generation Intel Core i9, i7, i5, i3 and Celeron processors (Comet Lake-S) up to 65 W on the Intel H420E chipset. A single PCIe x4 slot is its main difference from the smaller eBOX units: it can hold an I/O or acquisition card without moving to a full industrial PC.

Four Gigabit LAN ports, four serial ports, two HDMI outputs and a DisplayPort, with dual-view support, are all on the case, which measures 280 x 210 x 80.5 mm. Input power is 9 to 48 VDC and the unit is specified from -40 C.

Technical specifications

Using the PCIe x4 slot and Mini PCIe options

The PCIe x4 slot allows a half-height card such as a frame grabber, serial expansion or fieldbus card, subject to mechanical and power limits that should be checked against the manual. For smaller additions the manufacturer lists Mini PCIe modules: COM (AX92906), CAN bus (AX92903), LAN (AX92902) and dual LAN (AX92918), plus a DIO cable.

The temperature rating depends on CPU power, so choose a 35 W processor if the cabinet gets close to +70 C.

Items to specify when requesting a quote

List the processor, memory and storage, the PCIe card (if any), the wireless module and the mounting kit; wall-mount and DIN-rail kits and a 24 V 120 W adapter are listed. Confirm the operating system: the datasheet lists Windows 11 IoT and Linux.

How the Axiomtek eBOX710A works

The eBOX710A is a complete computer in a sealed aluminium case without a fan. The processor, chipset and memory sit inside, and the heat is carried to the finned case, which gives it off to the air. With no fan, there is no moving part to wear out and no dust is drawn in. The system runs from a wide DC supply of 9 to 48 VDC and has four Gigabit LAN ports, four serial ports and several display outputs. A PCIe x4 slot takes an expansion card, so the system can be extended without moving to a larger industrial PC.

Where the eBOX710A is used

• Machine vision with a frame grabber card in the PCIe slot
• Factory automation and data collection
• Edge computing and gateways with several LAN ports
• Transport and infrastructure cabinets
• Digital signage with two HDMI outputs and a DisplayPort
• Serial device servers with the RS-232, RS-422 and RS-485 ports

Selection checklist for the eBOX710A

• Processor class, 10th or 11th generation Core or Celeron, in 35 W or 65 W
• Memory up to 64 GB of DDR4-2933 in two SO-DIMM slots
• Storage, two 2.5 inch SATA drives and two mSATA
• Expansion card for the PCIe x4 slot and its size and power
• Wireless module in the M.2 Key B slot with the SIM slot
• Cabinet temperature, up to 70 degrees C with a 35 W processor or 60 degrees C with 65 W
• Supply voltage of 9 to 48 VDC
• Mounting space of 280 x 210 x 80.5 mm

Installation, commissioning and maintenance notes

Mount the system where air can reach the case, and keep to the airflow stated for the temperature rating. Fit wide-temperature memory and storage when the unit runs in a hot cabinet. Connect the DC supply with the correct polarity and fuse it. Install the operating system and the drivers, and set the serial ports to RS-232, RS-422 or RS-485 as needed. Check the BIOS settings and keep a copy. Inspect the connectors for tightness after commissioning.

Requesting a quotation for the Axiomtek eBOX710A

Please send the processor, the memory, the storage, the expansion card and the supply voltage. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

eBOX710A network ports

The four Gigabit ports use three Intel I210-IT controllers and one Intel I219-LM controller.

eBOX710A shock and vibration

The system is tested to 50 G of shock under IEC 60068-2-27 and 3 Grms of vibration under IEC 60068-2-64. It also follows MIL-STD-810G method 514.6C-II.

eBOX710A Mini PCIe options

Mini PCIe modules include COM (AX92906), CAN bus (AX92903), LAN (AX92902) and dual LAN (AX92918). A DIO cable is also listed.

eBOX710A security

The system has a TPM 2.0 module for secure storage of keys.

System records for eBOX710A

Keep the serial number, the memory and storage fitted, and the BIOS settings with the project file.

Documents and quotation

The manufacturer datasheet for the eBOX710A is attached to this page as a PDF (document type: datasheet) so the figures above can be checked against the source. For a quotation, send the full model or ordering code, quantity, any options such as modules or accessories, and the delivery location through the RFQ form. Seven Star LLC is an independent supplier in Muscat; availability and lead time are confirmed per request. More Axiomtek equipment is listed under this category, and the Axiomtek brand page shows the rest of the range on this site.
