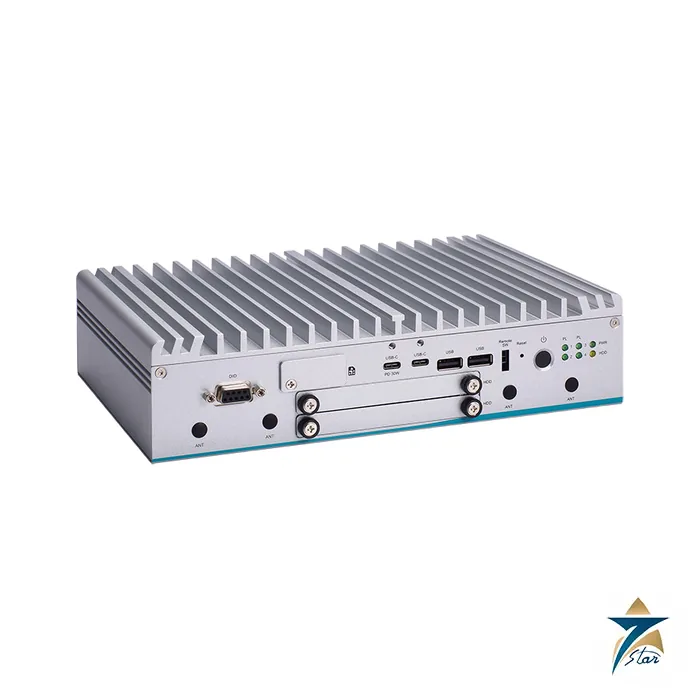

Axiomtek eBOX630B Fanless Embedded AI System

Core Ultra processing with an NPU in a fanless 60 mm case

The Axiomtek eBOX630B is a fanless embedded AI system built on Intel Core Ultra 7 and 5 processors, covering both Series 1 (155H, 125H) and Series 2 (255H, 225H). Each processor combines CPU cores, Intel Arc graphics on H SKUs and an Intel AI Boost NPU, and the datasheet states support for the OpenVINO toolkit, which makes the box a candidate for edge inference such as inspection, counting and monitoring.

It keeps the same 250 x 170 x 60 mm footprint as the eBOX630A but moves to DDR5-5600 memory up to 96 GB, adds two USB Type-C ports that carry DisplayPort (one with 30 W power delivery), and accepts a supply from 9 up to 60 VDC. Quad display output is possible using HDMI, DisplayPort and the two Type-C ports.

Technical specifications

Selecting between the four processor codes

The order codes pair the Core Ultra level with a generation: U5 or U7 in the middle of the code, then the processor number. Series 1 parts are 125H and 155H, Series 2 parts are 225H and 255H. All are 28 W, so thermal design is the same, but compute and graphics grow from U5 to U7. Memory (8 to 48 GB modules), drives and the wireless module are optional items, along with wall-mount and DIN-rail kits and a 24 V 120 W adapter.

Questions to settle before ordering

Define the AI workload and its software stack, because the datasheet names OpenVINO and Windows 11 IoT or Linux only. Confirm the display count, the DC supply (up to 60 V is accepted, which suits some battery and rail systems) and the airflow, since the temperature rating is given at 0.7 m/s. Wide-temperature DRAM and SSD must be requested through the manufacturer.

How the Axiomtek eBOX630B works

The box has no fan. The processor heat moves through the metal case to the outside air, so no dust is pulled in and no fan wears out. The Intel Core Ultra processor runs the software, and its AI Boost NPU handles neural network work for tasks such as inspection and counting. The OpenVINO toolkit helps put trained models onto the box.

Where the eBOX630B is used

• Edge inference for inspection
• Counting and monitoring
• Machine vision cells
• Industrial gateways
• Cabinets with wide temperature swings

Selection checklist for the eBOX630B

• Processor code, 125H, 155H, 225H or 255H
• Memory size up to 96 GB
• Storage bays and M.2 slot
• Network ports
• Serial ports
• Display outputs
• Power input from 9 to 60 VDC
• Operating temperature and airflow

Installation, commissioning and maintenance notes for the eBOX630B

Fit the memory and the drives before mounting the box. Connect the DC supply with the right polarity and the network and display cables. Install the operating system and the drivers. Keep the airflow of 0.7 m/s in mind at the top of the temperature range. Back up the drives on a schedule.

Requesting a quotation for the Axiomtek eBOX630B

Please send the order code, the memory, the storage and the quantity. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

eBOX630B order codes

The codes are eBOX630B-U5-125H, eBOX630B-U7-155H, eBOX630B-U5-225H and eBOX630B-U7-255H.

eBOX630B processors

The processors are Core Ultra 7 and 5 in Series 1 and Series 2, all at 28 W TDP.

eBOX630B memory

It takes two DDR5-5600 non-ECC SO-DIMM modules, up to 96 GB.

eBOX630B network ports

The rear panel has three 2.5GbE ports and one GbE port.

eBOX630B storage

The box has two swappable 2.5 inch bays with RAID 0 and 1, and one M.2 Key M 2280 slot.

eBOX630B power

The input is 9 to 60 VDC, and the maximum use is 55.3 W at 48 VDC.

eBOX630B temperature range

It works from minus 40 to plus 60 degrees C with 0.7 m/s airflow.

eBOX630B size and weight

The case measures 250 by 170 by 60 mm and weighs 2.4 kg.

Box records for the eBOX630B

Record the order code, the serial number and the software image used.

Choosing the right eBOX630B processor

All four codes share the same thermal design, so choose by the compute and graphics that the job needs.

Documents and quotation

The manufacturer datasheet for the eBOX630B is attached to this page as a PDF (document type: datasheet) so the figures above can be checked against the source. For a quotation, send the full model or ordering code, quantity, any options such as modules or accessories, and the delivery location through the RFQ form. Seven Star LLC is an independent supplier in Muscat; availability and lead time are confirmed per request. More Axiomtek equipment is listed under this category, and the Axiomtek brand page shows the rest of the range on this site.
