Advantech EKI-5710E 10-Port Managed Industrial Ethernet Switch with SFP Option

A compact managed switch with X-Ring Pro redundancy and a security pack

The Advantech EKI-5710E series is a slim managed industrial Ethernet switch with up to ten Fast Ethernet ports and two SFP positions. In the datasheet it is offered as a 10-port RJ45 model and as an 8 x RJ45 plus 2 x 100/1000 SFP model, and the wide-temperature codes work from -40 to 75 degrees C.

The main features are X-Ring Pro ring redundancy with recovery in under 20 ms, RSTP/STP (802.1w/1D), MSTP and ERPS (G.8032); the IXM function for faster deployment; and a security pack covering 802.1X, ACL, RADIUS, TACACS+, MAB authentication, SNMPv3, HTTPS, SSH and SFTP. Management is by SNMP v1/v2c/v3, web, Telnet and standard and private MIBs, and the unit supports a network management system for remote monitoring. It lists conformity to IEC 62443-4-2 Security Level 2.

The datasheet carries a note that the document is a preliminary version and has not been finalized, so values can change without notification. Confirm figures with Advantech before ordering.

Technical specifications

Ordering codes and choosing the variant

The ordering table lists EKI-5710E-I-A, the 10FE port managed switch for wide temperature, and EKI-5710E-2FI-A, the 8FE plus two SFP port managed switch for wide temperature. Choose the SFP version when a fibre or Gigabit uplink is needed; the datasheet recommends specific SFP modules for 100BASE fibre use. For an SFP copper module the switch supports only its highest transmit rate.

The two switches have dual power inputs and a relay output for alarm signalling, so they can be wired to a PLC input to report a power or link fault. Port LEDs show link, speed and activity, and system LEDs show power, ring master and alarm.

What to confirm before ordering

Ask for the final released datasheet because the current file is marked preliminary. Confirm the exact code (-I or -2FI), the SFP modules and fibre type, the supply voltage and the redundancy protocol used by the rest of the ring.

How the Advantech EKI-5710E works

The switch learns the address of each device on its ports and forwards frames only to the right port. In a ring, X-Ring Pro keeps one link in reserve. If a cable breaks, the switch opens the reserve link and traffic resumes in under 20 ms. The switch is set up through the web page, SSH or SNMP.

Where the EKI-5710E is used

• Factory automation networks
• Ring networks around a plant
• Control panels with limited space
• Networks that need port security
• Sites with fibre uplinks through SFP

Selection checklist for the EKI-5710E

• 10 RJ45 ports or 8 RJ45 plus 2 SFP
• Temperature range of the model code
• SFP module for the fibre link
• Ring redundancy method
• VLAN and QoS needs
• Security functions
• 12 to 48 V DC power source
• DIN rail or wall mounting

Installation, commissioning and maintenance notes for the EKI-5710E

Clip the switch on a DIN rail or fix it to the wall. Wire both power inputs, so one can back up the other. Connect the relay to the alarm circuit if needed. Set the IP address through the console or the web page. Confirm the ring recovery by unplugging a link. Keep a copy of the configuration.

Requesting a quotation for the Advantech EKI-5710E

Please send the port count, the SFP modules, the temperature range and the quantity. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

EKI-5710E ports

The standard model has ten 10/100 RJ45 ports.

EKI-5710E SFP model

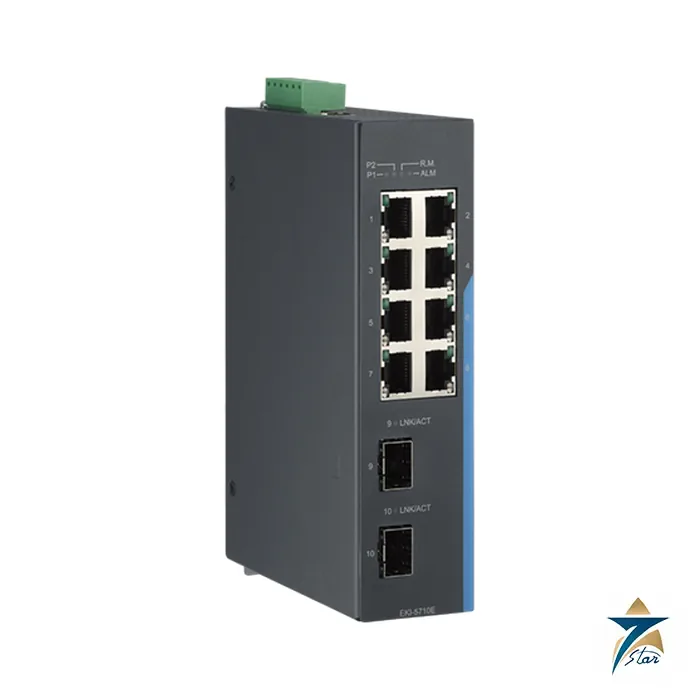

The EKI-5710E-2FI has 8 RJ45 ports and 2 SFP ports.

EKI-5710E switching capacity

The switch capacity is 5.6 Gbps and the packet rate is 4.17 Mpps.

EKI-5710E redundancy

The ring recovery time of X-Ring Pro is under 20 ms.

EKI-5710E VLAN support

The switch supports 256 VLAN groups with VLAN IDs from 1 to 4094.

EKI-5710E quality of service

Four priority queues are available, with 802.1p, TOS and DSCP.

EKI-5710E power input

The dual redundant input is 12 to 48 V DC and the power use is 6 W at 24 V DC.

EKI-5710E enclosure

The metal shell is rated IP30 and measures 40 x 152 x 105 mm.

EKI-5710E temperature range

The wide-temperature models work from minus 40 to plus 75 degrees C.

Switch records for the EKI-5710E

Record the IP address, the firmware version and a copy of the configuration file.

Choosing the right EKI-5710E model

Choose the SFP model where one or two links run over fibre, and the all-copper model where they do not.

Documents and quotation

The attached file is the Advantech EKI-5710E datasheet dated June 2026 (preliminary version). Send the quantity, port type and SFP requirement to Seven Star LLC for a quotation. Other switches and gateways are listed under Industrial Communications.
