Brand: Advantech

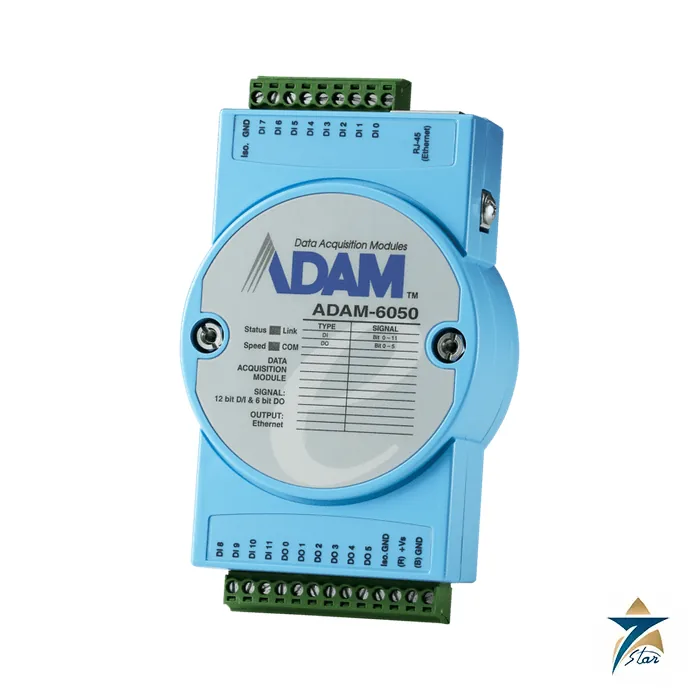

Advantech ADAM-6050 12DI/6DO Ethernet Digital I/O Module
Description
A 12-input, 6-output Ethernet I/O module for remote monitoring and control
The Advantech ADAM-6050 is an 18-channel isolated digital I/O module for Ethernet networks, with 12 digital inputs and 6 digital outputs in one DIN-rail housing. It speaks Modbus/TCP, and the D version adds MQTT and SNMP, so panel signals such as pump run status, valve limit switches, alarms and start commands can be read by a PLC, SCADA system or cloud service over a standard network. Built-in peer-to-peer mapping and Graphic Condition Logic (GCL) let the module move I/O status between modules and run simple logic rules without a separate controller.
Technical specifications
| Parameter | Specification |
|---|---|
| Channels | 12 digital inputs and 6 digital outputs, isolated |
| Digital input, dry contact | Logic level 0: closed to GND; logic level 1: open |
| Digital input, wet contact | Logic level 0: 0 to 3 VDC; logic level 1: 10 to 30 VDC or floating |
| Counter and frequency input | 3 kHz counter input (32-bit plus 1-bit overflow); frequency input; keep or discard counter value at power-off; inverted DI status |
| Digital output | 6 channels, sink type (open collector) to 30 V, 100 mA maximum per channel |
| Output functions | 5 kHz pulse output; high-to-low and low-to-high delay output |
| LAN | 1 port 10/100Base-T(X), RJ-45 |
| Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, RESTful; MQTT and SNMP on the D version |
| Logic functions | Peer-to-Peer and Graphic Condition Logic (GCL); user-defined Modbus addresses |
| Watchdog timer | System (1.6 second) and communication (programmable) |
| Isolation protection | 2,000 VDC |
| Power input | 10 to 30 VDC; power reversal protection |
| Power consumption | 2 W at 24 VDC |
| Connectors | 1 x RJ-45; plug-in screw terminal blocks for I/O and power |
| Operating temperature | -20 to 70 degC; D version -40 to 70 degC |
| Storage temperature | -30 to 80 degC; D version -40 to 85 degC |
| Operating humidity | 20 to 95 percent RH, non-condensing |
| Certifications listed | FCC, CE, UL; the datasheet footnote refers to Class I, Division 2, Groups A, B, C and D hazardous locations |
ADAM-6050 compared with its siblings
The datasheet groups three digital I/O modules. The ADAM-6050 offers 12 inputs and 6 sink outputs. The ADAM-6051 has 12 inputs, 2 counter inputs and 2 outputs. The ADAM-6052 has 8 inputs and 8 source-type outputs rated 1 A per channel with over-current protection. Choose the ADAM-6050 when you need the most inputs with moderate output current; choose the ADAM-6052 for PNP-type loads. For analog signals over Ethernet see the Advantech ADAM-6017, or browse PLC and I/O cards.
What to confirm before ordering
State whether you need the standard or D version (for MQTT, SNMP and the wider temperature range), the input wiring (dry or wet contact) and the output load. Outputs are sink type, so confirm they suit your relays or coils. Send the part number and quantity for a quotation.
Documents and quotation
The attached Advantech Ethernet I/O datasheet (last updated 9 March 2026) covers the ADAM-6000, 6200 and 6300 series; the ADAM-6050 specification is on its own page of the document.
Datasheets & Documents
- Datasheet Advantech ADAM-6000/6200/6300 Ethernet I/O datasheet (EN) Download
Reviews (0)
About brand
ADAM modules are how many instrument and SCADA engineers first come across Advantech. The Taiwanese company, founded in 1983 and based in Taipei, makes industrial computers, remote I/O and communication hardware. Seven Star LLC supplies Advantech automation products to system integrators and plant teams in Oman, and this page lists items such as an ADAM-6000 Ethernet I/O module, an ADAM-4000 serial converter and an IPC rackmount chassis.
Advantech ADAM and IPC products listed here
The ADAM-6017 is an 8-channel analog input module from the ADAM-6000 Ethernet I/O family. It brings voltage and current signals onto a network and is read by SCADA or PLC software over Modbus TCP. The ADAM-4520 belongs to the ADAM-4000 serial family and converts RS-232 to isolated RS-422 or RS-485, a common fix for linking a PC or panel to field devices. The IPC-623 is a 4U, 20-slot rackmount chassis that houses a backplane, CPU card and expansion cards for control room computers.
Ordering Advantech hardware: what we need
Send the full part number with its suffix. Advantech adds letters after the model, as in ADAM-6017-D, to mark the hardware revision, and existing configurations sometimes depend on it. For an IPC chassis, state the backplane, power supply and drive bay arrangement, since these are ordered as specific versions. We supply across the GCC and check part numbers against Advantech documentation.
Browse Advantech products by category: Industrial Computer, PLC & I/O Cards, Industrial Communications.
Related products
Frequently Asked Questions
How many I/O channels does the ADAM-6050 have?
12 isolated digital inputs and 6 isolated sink-type digital outputs.
Which protocols does it support?
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP and RESTful; the D version adds MQTT and SNMP.
Can it count pulses?
Yes, with a 3 kHz counter input of 32-bit plus 1-bit overflow and a frequency input.
What is the output rating?
Sink type, up to 30 V and 100 mA maximum per channel.
What power supply does it need?
10 to 30 VDC, drawing 2 W at 24 VDC.
