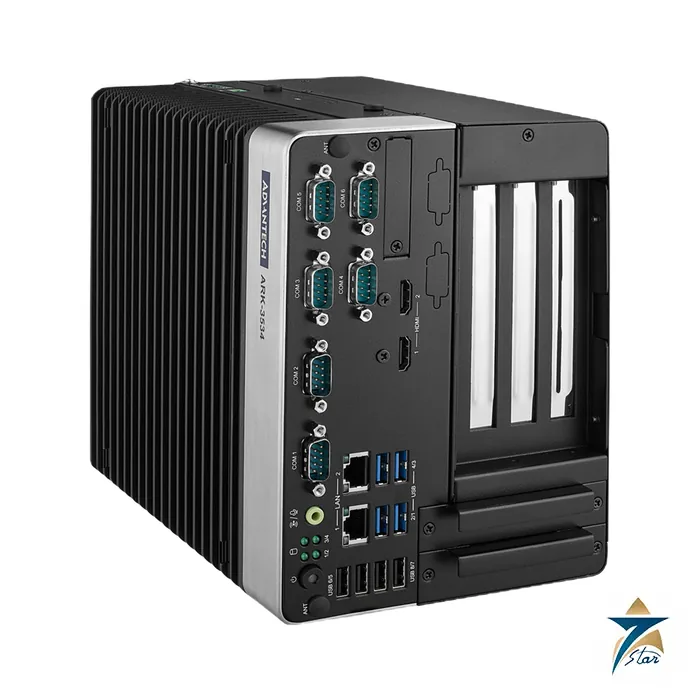

Advantech ARK-3534B LGA1700 Expansion Fanless Box PC with PCIe Slots
Description
A fanless box PC that accepts a full-size PCIe add-on card
The Advantech ARK-3534B is a fanless embedded box PC for Intel LGA1700 processors, from 12th to 14th Generation Core i3, i5, i7 and i9 parts. What distinguishes it from the smaller ARK models is expansion: one PCIe x16 slot and one PCIe x4 slot for add-on cards such as frame grabbers, motion cards or accelerators, in a housing that still has no fan and runs from a 9 to 36 VDC supply.
The datasheet lists triple independent display output (two HDMI plus an optional DVI-D, DisplayPort or HDMI module), DDR5 SO-DIMM memory up to 64 GB, up to three 2.5 inch drive bays, up to four GbE ports, eight USB ports, up to eight COM ports and two CANBus ports through optional cables, a 16-bit DIO and TPM 2.0. Advantech states IEC 62443-4-2 conformity at Security Level 2, which it says supports readiness for the EU Cyber Resilience Act.
Software support includes the SUSI API, WISE-DeviceOn, Trellix and Acronis bundles and Windows 11 IoT Enterprise LTSC.
Technical specifications
| Parameter | Specification |
|---|---|
| Processors, 14th Gen | i9-14900, i7-14700, i5-14500, i5-14400 (65 W) and i3-14100 (60 W) |
| Processors, 12th/13th Gen | i9/i7/i5/i3-13xxxE, i9/i7/i5/i3-12xxxE and G6900E; TDP 46 to 65 W |
| Chipset / BIOS | H610E (R680E by project); AMI EFI 256 Mbit |
| Memory | 2 x 262-pin DDR5-4800 SO-DIMM, up to 64 GB |
| Graphics | Intel UHD Graphics 770; 2 x HDMI 2.0 (4096 x 2160 at 60 Hz) plus optional third display module |
| Ethernet | LAN1 Intel I219-LM 1 GbE; LAN2 Intel i225-V 2.5 GbE (LAN3 and 4 by project with R680E) |
| Serial ports | 4 x RS-232/422/485 with auto flow control and 2 x RS-232; COM7 and COM8 (2 x RS-232) by optional cable |
| USB | 4 x USB 3.2 (2 Gen2, 2 Gen1) and 4 x USB 2.0; 1 internal USB 2.0 optional |
| DIO / CANBus | 16-bit DIO and 2 CANBus ports by optional cables |
| Expansion | 1 x M.2 2230 E key, 1 x M.2 2280 B key with SIM holder, 1 x PCIe x4 and 1 x PCIe x16 (up to dual slot); card up to 110 mm high and 180 mm long; x16 slot supports up to 120 W cards |
| Storage | 2 x 2.5 inch SATA III 15 mm bays (up to 3); NVMe 1 x PCIe x2 shared with the M.2 2280 B key |
| Power input | 9 to 36 VDC, AT/ATX; optional 230 W AC to DC adapter |
| Power consumption | 56.1 W typical, 92.4 W maximum (CPU and memory only) |
| Dimensions / weight | 156 x 204 x 230 mm (W x H x D); 5.705 kg; desk mounting |
| Operating temperature | -20 to 60 degrees C with 0.7 m/s airflow for up to 65 W CPUs with extended-temperature peripherals; 0 to 40 degrees C with HDD; storage -40 to 85 degrees C |
| Shock / vibration | With SSD: 30 G half sine 11 ms; 3 Grms random 5 to 500 Hz |
| EMC / safety | CE and FCC Class B, CCC, BSMI; CB, UL, CCC, BSMI |
Ordering codes and add-on options
Two part numbers are listed: ARK-3534B-00A1 (made in China) and ARK-3534B-00A1U (made in Taiwan). Both ship as the same barebone configuration with 2 x GbE, 2 x HDMI, one display module position, up to 4 x RS-232/422/485 and 8 USB ports. CPU, memory, storage and operating system are bundled by request.
For add-on cards that draw more than 30 W, the datasheet calls for the AMO-3508 fan kit (AMO-3508A for an Nvidia A2 Tensor card) and the XARK-DPS-150AB-15 extra power kit. Optional display modules are AMO-D001E (DVI-D), AMO-D002E (DP) and AMO-D003E (HDMI), the TPM module is AMO-I029A and a SATA cable kit adds the third drive. Cables for COM7 and 8, CANBus, DIO and an internal USB port are separate part numbers.
What to confirm before ordering
Confirm the processor model and TDP, the memory and storage plan, the add-on card power and the thermal limits. The 60 degree C rating depends on airflow, on a 65 W or lower CPU and on SSD storage, while HDD operation is rated only to 40 degrees C.
How the Advantech ARK-3534B works
The processor, memory and storage sit in a sealed aluminium housing that spreads heat to the outside. There is no fan, so no moving part wears. Add-on cards in the PCIe slots extend what the computer can do.
Where the ARK-3534B is used
- Machine vision
- Motion control
- Edge computing
- Control cabinets
- Data collection gateways
Selection checklist for the ARK-3534B
- Processor class
- Memory size
- Add-on card type
- Storage drives
- Network ports
- Serial ports
- Display outputs
- Power input
Installation, commissioning and maintenance notes for the ARK-3534B
Mount the box with space around it for heat to leave. Fit the memory, the drives and the add-on card before the first start. Check the cables and the dust on the housing at regular intervals.
Requesting a quotation for the Advantech ARK-3534B
Please send the processor, the memory, the storage and the add-on card needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
ARK-3534B computer type
It is a fanless embedded box PC.
ARK-3534B maker
It is made by Advantech.
ARK-3534B processor socket
It takes Intel LGA1700 processors.
ARK-3534B processor generations
It supports the 12th to 14th Generation Core i3, i5, i7 and i9.
ARK-3534B expansion slots
It has one PCIe x16 slot and one PCIe x4 slot.
ARK-3534B card use
The slots take frame grabbers, motion cards or accelerators.
ARK-3534B card size
A card can be up to 110 mm high and 180 mm long.
ARK-3534B card power
The x16 slot supports cards of up to 120 W.
ARK-3534B memory
It takes DDR5 SO-DIMM memory up to 64 GB.
ARK-3534B graphics
Graphics are Intel UHD Graphics 770.
ARK-3534B displays
It has triple independent display output.
ARK-3534B HDMI outputs
Two HDMI 2.0 outputs are fitted.
ARK-3534B third display
A third display module can be DVI-D, DisplayPort or HDMI.
ARK-3534B storage bays
It has up to three 2.5 inch drive bays.
ARK-3534B Ethernet
It has up to four GbE ports.
ARK-3534B first LAN port
LAN1 is an Intel 1 GbE port.
ARK-3534B second LAN port
LAN2 is an Intel 2.5 GbE port.
ARK-3534B USB ports
It has eight USB ports.
ARK-3534B serial ports
It has up to eight COM ports.
ARK-3534B CANBus
Two CANBus ports are available through optional cables.
ARK-3534B digital I/O
A 16-bit DIO is included.
ARK-3534B security chip
It has TPM 2.0.
ARK-3534B M.2 slots
It has an M.2 2230 E key slot and an M.2 2280 B key slot with a SIM holder.
ARK-3534B power input
The supply is 9 to 36 VDC.
ARK-3534B power use
Typical power use is 56.1 W with CPU and memory only.
ARK-3534B software
Software includes the SUSI API and WISE-DeviceOn.
ARK-3534B operating system
Windows 11 IoT Enterprise LTSC is supported.
Computer records for the ARK-3534B
Record the build, the BIOS version and the date of each service.
Choosing the right ARK-3534B build
Choose the processor and the add-on card from the workload.
Documents and quotation
The attached Advantech sheet is the three-page ARK-3534B datasheet of December 2025. For a quotation send the CPU, memory, storage, cables and expansion cards you need to Seven Star LLC; other models are listed under Industrial Computers.
