Brand: Siemens

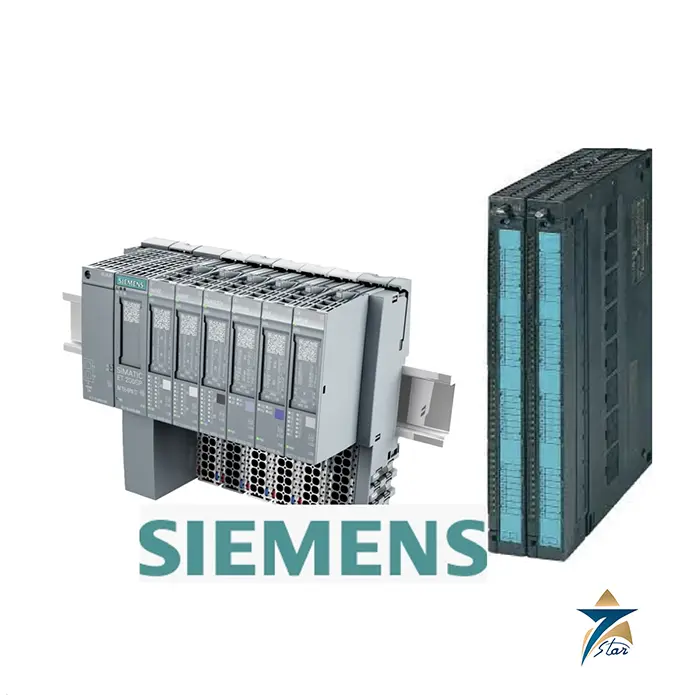

Siemens SIMATIC S7-400 Power Supply PS407 6ES7407-0DA02-0AA0
Description
Overview
The Siemens SIMATIC PS407 (6ES7407-0DA02-0AA0) is a 4 A PS407 power supply module for SIMATIC S7-400 racks. It has a wide-range UC input for 120/230 V AC or DC. The module converts the supply into the 5 V DC and 24 V DC voltages for the S7-400 backplane bus, which power the CPU, interface modules and signal modules in the rack.
The PS407 takes one slot in the rack. It provides 20 ms mains buffering in line with the NAMUR recommendation and short-circuit protection on its outputs. An optional lithium backup battery keeps the contents of the CPU memory during supply failures. The PS407 4 A is used as the rack supply in S7-400 process and factory automation systems where the total 5 V load of the rack is within 4 A.
Key Features
- Wide-range input: 120/230 V AC (85–264 V) or 120/230 V DC (88–300 V)
- Backplane outputs of 5 V DC / 4 A and 24 V DC / 0.5 A
- 20 ms mains buffering according to NAMUR recommendation
- Short-circuit protection; no base load required on the 5 V output
- Optional lithium backup battery, 3.6 V / 2.2 Ah
- FM approval, Ta 0 to 70 °C, T4
Technical Specifications
| Parameter | Value |
|---|---|
| Order code | 6ES7407-0DA02-0AA0 |
| Product type | PS 407, 4 A, wide range, UC 120/230 V |
| Input voltage (AC) | 120/230 V AC, permissible 85–264 V, 47–63 Hz |
| Input voltage (DC) | 120/230 V DC, permissible 88–300 V |
| Input current | 0.42 A at 120 V AC; 0.22 A at 230 V AC; 350 mA at 110/120 V DC; 190 mA at 230 V DC |
| Inrush current | Max. 8.25 A, half-value width 5 ms |
| Mains buffering | 20 ms |
| Output, 5 V DC backplane | Max. 4 A, no base load required |
| Output, 24 V DC backplane | Max. 0.5 A, no-load proof |
| Power input / power loss | 52 W typ. / 20 W typ. |
| Backup battery | Optional, 1 × lithium AA, 3.6 V / 2.2 Ah |
| Slots required | 1 |
| Protection class | Class I, with protective conductor |
| Operating temperature | 0 to 60 °C |
| Approvals | FM, Ta 0 to 70 °C, T4; line harmonics per IEC 61000-3-2 / -3-3 |
| Supply connection | 3 × 1.5 mm², cable outer diameter 3–9 mm |
| Dimensions (W × H × D) | 25 × 290 × 217 mm |
| Weight | Approx. 760 g |
| Leakage current | Max. 3.5 mA |
| Galvanic isolation primary/secondary | Yes |
| Overvoltage category | II |
| Supply conductor type | Solid wire, or stranded wire with ferrule (3 × 1.5 mm²) |
| Buffering | 20 ms hold-up |
Applications
- Rack power supply for S7-400 central and expansion racks
- Process control systems in oil & gas, petrochemical, power and water plants
- Replacement spare for installed S7-400 systems during maintenance or rack extension
Siemens PS407 6ES7407-0DA02-0AA0 Selection Notes
The Siemens data sheet defines this module by two backplane currents: up to 4 A on the 5 V DC rail and up to 0.5 A on the 24 V DC rail. Both figures have to cover the sum of the current drawn by the CPU and every module in the rack, so the 5 V and 24 V demand of the rack should be added up before this 4 A version is chosen. The 5 V output needs no minimum load, and both outputs are short-circuit protected.
The same unit runs from AC or DC supply at 120 V or 230 V nominal, so no variant selection is needed between AC and DC plant supplies within those ranges. Typical active power input is 52 W, of which about 20 W is dissipated in the module; that loss should be included in the cabinet heat calculation. The module takes one rack slot (25 mm wide).
Siemens PS407 6ES7407-0DA02-0AA0 Installation and Wiring Notes
The module is a protection class I device, so a protective earth conductor must be connected with the supply. The data sheet specifies a three-core connection of 1.5 mm² conductors, either solid or stranded with ferrules. Leakage current is up to 3.5 mA, which is relevant when several supplies share one residual-current device. One lithium AA cell (3.6 V) can be fitted as an optional backup battery. The module bridges supply interruptions of up to 20 ms.
Why Seven Star LLC
Seven Star LLC supplies Siemens SIMATIC S7-400 spare parts, including the PS407 power supply, to industrial customers across Oman and the GCC. Before we quote, we check the order code, supply voltage and the 5 V current demand of your rack.
Also available: Siemens SIMATIC S7-400 Interface Module IF963-RS232 – 6ES7963-1AA10-0AA0
Request a Quote for Siemens SIMATIC S7-400 Power Supply PS407 6ES7407-0DA02-0AA0
Submit a formal inquiry through our RFQ page with order code 6ES7407-0DA02-0AA0, the quantity, your supply voltage and the list of modules in the rack. Our team will confirm the correct PS407 supply and provide a detailed quotation.
