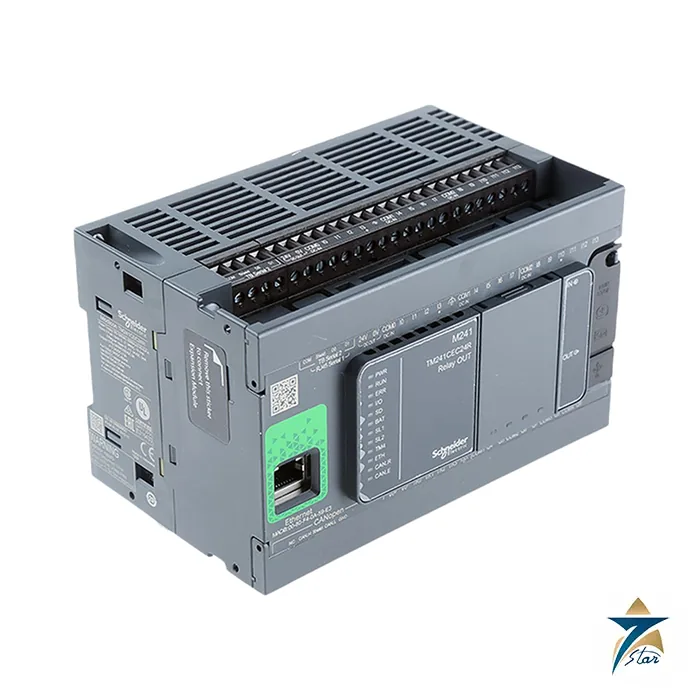

Schneider Electric Modicon M241 Logic Controller

Overview

The Schneider Electric Modicon M241 is a mid-range logic controller built for machine builders who need more processing power, motion control capability, and I/O flexibility than entry-level PLC can offer. It targets standalone machines and small production lines that require coordinated axis control, higher-speed communication, and modular expansion, positioning it a step above compact controllers in the Modicon range.

With engineering support in Muscat, Seven Star LLC supplies the Schneider Electric Modicon M241 across the Sultanate of Oman and the wider GCC. Every unit is supplied with manufacturer documentation and local technical backing, giving procurement teams in Muscat, Sohar, and Salalah a formal quotation and support with selection. Seven Star LLC has a dedicated instrumentation and controls division that provides technical support with selection and specification for the Schneider Electric Modicon M241 and the wider Schneider Electric portfolio.

Operating Principle

The Modicon M241 runs a deterministic real-time scan cycle that processes ladder, function block, structured text, and sequential function chart logic while simultaneously handling embedded motion control for up to several coordinated axes. This combined logic-and-motion execution model removes the need for a separate motion controller on many machine designs, simplifying the control architecture and cabling.

Communication and motion command exchange occur over an integrated CANopen or SERCOS-style motion bus alongside standard Ethernet Modbus TCP for supervisory traffic, so drives, HMIs, and remote I/O can be networked from the same controller. Programming and commissioning are carried out in EcoStruxure Machine Expert, which provides live variable monitoring and axis diagnostics during machine start-up.

Engineering Design of the Schneider Electric Modicon M241

The Schneider Electric Modicon M241 is built around a modular base unit that accepts TM3-series expansion I/O modules, allowing panel builders to scale digital, analog, and specialty I/O to match the exact machine requirement without over-provisioning. The controller mounts on a standard DIN rail and uses keyed connectors that prevent incorrect module insertion.

Multiple communication ports, including Ethernet and a dedicated motion network connector, are arranged on the front face alongside a USB programming port and diagnostic LEDs, giving commissioning engineers fast access without opening the back of the panel. The controller’s firmware supports OPC UA and web-server diagnostics for remote monitoring from a central engineering office.

Key Features

The Schneider Electric Modicon M241 is engineered to deliver dependable performance in demanding industrial and commercial environments. Key features include:

• Combined logic and motion control on a single controller for coordinated multi-axis machines.
• Modular TM3 expansion I/O for precise scaling of digital, analog, and specialty channels.
• Integrated motion network alongside Ethernet Modbus TCP for drives, HMIs, and remote I/O.
• EcoStruxure Machine Expert programming environment with live diagnostics and axis tuning tools.
• Embedded web server for remote status monitoring without dedicated SCADA software.
• High-speed deterministic scan cycle suited to packaging and material handling machines.
• DIN-rail modular construction that simplifies panel layout and future expansion.
• Password-protected application memory to protect OEM machine intellectual property.

Applications

The Schneider Electric Modicon M241 is commonly specified on packaging lines, palletizers, textile machinery, and material handling equipment that require synchronized multi-axis motion alongside standard sequencing logic. Its modular I/O scaling also suits process skids and utility panels across industrial estates in Oman and the wider GCC.

Backed by manufacturer datasheet documentation, Seven Star LLC distributes the Schneider Electric Modicon M241 to system integrators, panel builders, and EPC contractors throughout Oman and the GCC, supporting district cooling plants, desalination facilities, oil and gas installations, commercial towers, hospitality developments, and the Sohar and Salalah economic zones. Local availability shortens lead times against direct import, and Seven Star LLC’s engineering team assists with product selection, coordination with the wider Schneider Electric ecosystem, and post-installation support so operators in the region are never left waiting on a factory response from overseas.

Technical Specifications

The table below summarizes the key technical specifications of the Schneider Electric Modicon M241 for engineering reference and system design.

Why Choose Seven Star LLC

Seven Star LLC supplies the Schneider Electric Modicon M241 and the broader Schneider Electric catalogue to industrial, commercial and utility customers across Oman and the GCC.Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation.

Get a Quote

To request a formal quotation for the Schneider Electric Modicon M241, contact the Seven Star LLC instrumentation and controls division directly. Seven Star LLC supplies on request across Oman and the GCC, provides technical datasheets on request for engineering review, and offers pre-sales application support for panel builders and end users alike. Working closely with plant engineers in the region, Seven Star LLC supplies the Schneider Electric Modicon M241 with technical documentation and responsive local support – reach out today to confirm availability, lead time, and pricing for your project.
