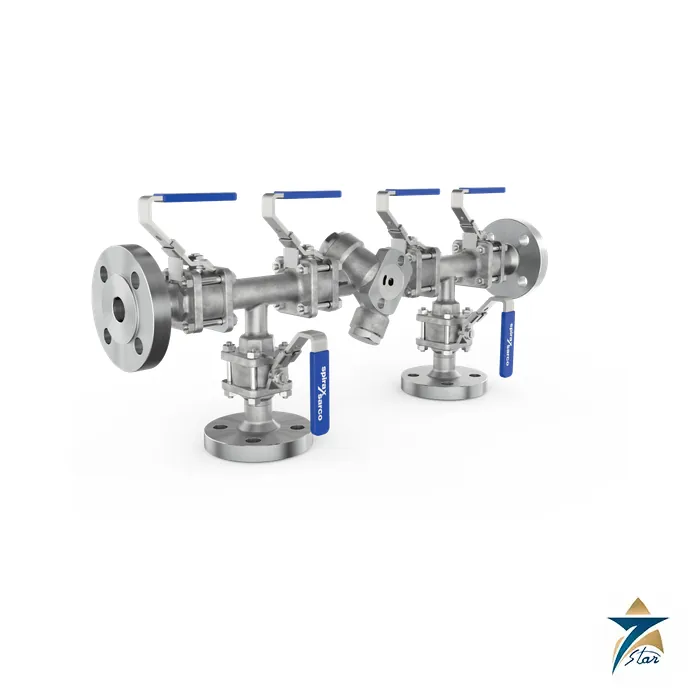

Spirax Sarco STS17.2 Steam-Trapping Station
Overview
The Spirax Sarco STS17.2 steam-trapping station is a compact, all stainless-steel in-line unit engineered to make thermostatic steam trap maintenance faster, safer, and more consistent across an entire plant. Instead of the multiple screwed valves, fittings, and adapters found in a conventional trap installation, the STS17.2 combines upstream and downstream isolation, an integral strainer, and a quick-fit two-bolt trap connector into a single pre-assembled body with no screwed process joints. For tracer line networks – where hundreds of individual steam traps are distributed across a site – this design radically cuts the number of leak paths and reduces the time needed to remove or replace a trap from hours of pipe-fitting work to a matter of minutes.
With engineering support in Muscat, Seven Star LLC supplies the Spirax Sarco STS17.2 steam-trapping station to process plants, refineries, and utility operators across Oman and the wider GCC. Facilities in Muscat, Sohar, and Salalah specify the STS17.2 for tracer line steam trapping and general condensate drainage duty, relying on Seven Star LLC for Spirax Sarco stations with manufacturer documentation, EN 10204 3.1 material traceability where specified, and replacement traps and strainer elements supplied on request.
Operating Principle
The Spirax Sarco STS17.2 station itself is a trap-holder rather than a trap: it houses whichever thermostatic, balanced-pressure, or other quick-fit steam trap element is appropriate for the duty, while the station body provides isolation, filtration, and a standardised mechanical connection. On thermostatic steam trapping duty for tracer lines, the fitted trap element opens and closes in response to the temperature of the fluid at the trap body – discharging condensate and non-condensable gases once they have cooled below saturation temperature, and closing again as live steam approaches the element, giving tight, near-continuous condensate removal with minimal live steam loss.
Because the STS17.2 body incorporates upstream and downstream isolation valves and an integral strainer ahead of the trap element, an engineer can isolate the station, blow down the strainer, and unbolt the trap element via the quick-fit two-bolt connector without dismantling any pipework, flanges, or screwed unions. The practical result is a maintenance sequence measured in minutes rather than hours, with no need to break the line, no risk of thread damage on repeated maintenance cycles, and a documented, repeatable isolation procedure every time a trap is inspected or exchanged.
Engineering Design of the Spirax Sarco STS17.2
The Spirax Sarco STS17.2 is constructed entirely in stainless steel for corrosion resistance and long service life in exposed tracer line and outdoor piperack environments. The station body is a compact, preassembled in-line unit with no screwed process joints, incorporating built-in upstream and downstream isolation valves fitted with lockable handles as standard, an integral strainer, and a check-valve blanking plug. The trap element itself connects via a quick-fit two-bolt connector, compatible with the full range of Spirax Sarco quick-fit trap types, allowing the same station body to be standardised across a site while the trap technology is matched to each specific duty.
Optional double block and bleed configurations are available for applications requiring secure isolation and safe drainage during trap maintenance, along with a simple connection point for steam trap monitoring sensors and an optional blowdown valve for strainer cleaning. All internal valve and strainer components are replaceable, extending the working life of the station body well beyond that of a single trap element, and the design is compliant with the European Pressure Equipment Directive (PED) 2014/68/EU, with EN 10204 3.1 material certification available on request.
Key Features
The Spirax Sarco STS17.2 brings together everything engineers need for efficient thermostatic steam trapping and maintenance, and the following features summarise why it is specified for tracer line networks across the region.
- The Spirax Sarco STS17.2 quick-fit two-bolt trap connector allows traps to be swapped in minutes, compared with conventional multi-component steam trap installations requiring dismantled pipe joints, flanges, or valves.
- Built-in upstream and downstream isolation valves with lockable handles as standard provide safe, auditable isolation before any trap maintenance begins.
- An integral strainer and check-valve blanking plug protect the trap element from pipeline debris while reducing the overall leak-path count of the installation.
- Optional double block and bleed configuration allows secure isolation and safe drainage, helping protect engineers during trap element removal.
- Compact, all stainless-steel construction resists corrosion in exposed tracer line, piperack, and outdoor plant environments over long service life.
- A pre-assembled, in-line design with no screwed process joints reduces installation time and eliminates a major source of steam leaks.
- Compatibility with the full range of Spirax Sarco quick-fit traps lets engineers standardise the station body across a site while matching trap technology to each duty.
- Replaceable internal valve and strainer components, plus optional sensor and blowdown connections, extend service life and support ongoing steam trap monitoring programmes.
Industrial Applications
The Spirax Sarco STS17.2 is widely specified for thermostatic steam trapping on tracer lines, where large numbers of individual trap points must be maintained efficiently across sprawling pipe networks in refineries, petrochemical plants, and oil and gas processing facilities. It is equally suited to food and beverage, pharmaceutical, life sciences, chemical and process industries, and power and utilities plants, wherever condensate must be drained reliably from steam mains, unit heaters, or process tracing without excessive live steam loss or repeated pipe-fitting labour during maintenance.
Backed by genuine manufacturer documentation, Seven Star LLC distributes the STS17.2 steam-trapping station to EPC contractors, industrial plants, and utility operators across the Sultanate of Oman, Muscat, and the Sohar and Salalah economic zones, as well as neighbouring GCC markets. Maintenance teams across the region value the combination of genuine Spirax Sarco manufacturing quality, PED and EN 10204 3.1 documentation, and locally available technical support that only a trusted regional supplier can provide, particularly on tracer line networks where hundreds of trap stations must be serviced on a routine schedule.
Technical Specifications
The table below summarises the core specifications of the Spirax Sarco STS17.2 steam-trapping station; consult Spirax Sarco for the complete technical and installation documentation.
| Parameter | Specification |
|---|---|
| Model | Spirax Sarco STS17.2 steam-trapping station |
| Application | Thermostatic steam trapping for tracer lines and general condensate drainage |
| Body material | Stainless steel, all-welded pre-assembled construction |
| Trap connection | Quick-fit two-bolt connector, compatible with Spirax Sarco quick-fit trap range |
| Isolation | Built-in upstream and downstream isolation valves, lockable handles as standard |
| Filtration | Integral strainer with check-valve blanking plug |
| Optional configuration | Double block and bleed isolation with safe drainage |
| Monitoring | Simple connection for steam trap monitoring sensors; optional blowdown valve |
| Serviceable parts | Replaceable internal valve and strainer components |
| Compliance | European Pressure Equipment Directive (PED) 2014/68/EU |
| Certification | EN 10204 3.1 material certification available |
Request a Quote for Spirax Sarco STS17.2 Steam-Trapping Station
Facilities across Oman and the GCC standardising thermostatic steam trapping on tracer lines can request a formal RFQ for the Spirax Sarco STS17.2 from Seven Star LLC. Configurations are supplied on request with lead time confirmed at quotation, and the full Spirax Sarco technical datasheet and installation guide are available on request from our instrumentation and valves division. Working closely with plant engineers in the region, Seven Star LLC backs every Spirax Sarco STS17.2 supplied with genuine manufacturer certification, EN 10204 3.1 traceability, and local technical support – contact our team today to specify the right trap element and isolation configuration for your tracer line network.
