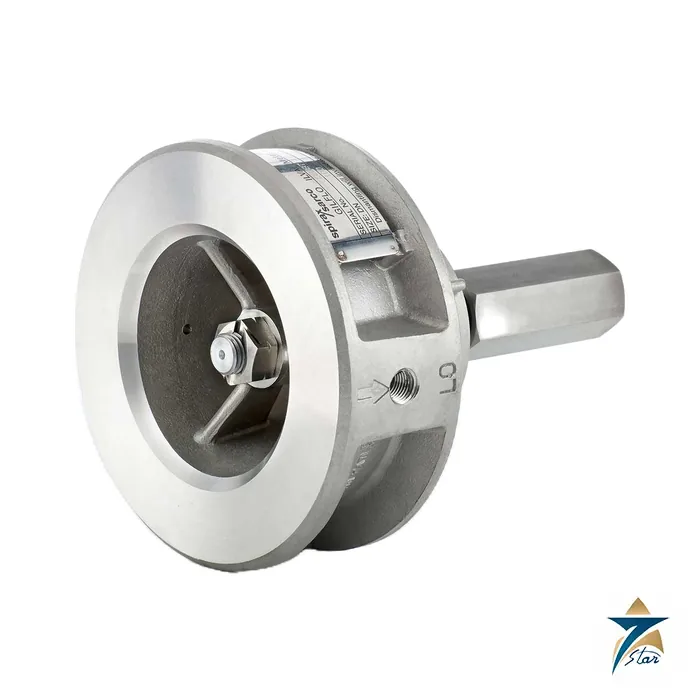

Spirax Sarco ILVA Self-Acting Variable Area Flowmeter
Overview
The Spirax Sarco ILVA is a self-acting, spring-loaded variable area flowmeter built on the proven Gilflo measurement principle, designed to deliver accurate, repeatable flow measurement of steam, condensate, liquids, and gases without external power. Unlike orifice-plate or fixed-area devices that lose accuracy at low flow, the ILVA’s variable annular measurement area automatically compensates as flowrate changes, giving it an unrivalled 100:1 turndown ratio and typical accuracy of ±1% of reading across the full measurement range. This makes the Spirax Sarco ILVA a first-choice flowmeter wherever plant loads swing widely between minimum and peak demand, a common condition in steam and condensate networks serving process heating, utilities, and district energy systems.
As the official authorized partner and exclusive regional representative for Spirax Sarco, Seven Star LLC proudly supplies the ILVA flowmeter to utilities, process, and energy-management teams across Oman and the wider GCC. Facility engineers in Muscat, Sohar, and Salalah source genuine Spirax Sarco ILVA units through Seven Star LLC to guarantee manufacturer warranty coverage, calibration traceability, and local technical support, eliminating the risks associated with unauthorized resellers of critical metering equipment.
Measurement Principle
The Spirax Sarco ILVA operates on the spring-loaded variable area principle. As process fluid flows through the meter body, it acts on a spring-loaded piston, deflecting it against a calibrated spring so that the annular flow area increases in direct proportion to the flowrate. This deflection produces a differential pressure signal across the piston that is directly and predictably related to flow, without needing a separate orifice plate, venturi, or external power source to generate the measurement signal. Because the flow area itself changes with load, the ILVA maintains a strong, stable differential pressure signal at both very low and very high flows, which is the fundamental reason it achieves 100:1 turndown where fixed-geometry meters typically manage only 3:1 or 4:1.
The differential pressure signal generated by the ILVA can be read locally or transmitted via a mass flow transmitter such as the Spirax Sarco MVT10 for integration into a plant control system, enabling both saturated and superheated steam mass flow calculation, totalization, and remote monitoring. Because the meter has no orifice restriction to foul or wear unevenly, and no moving electronic components in the primary measurement path, it delivers consistent accuracy over long service intervals with minimal maintenance, and its self-acting mechanical design means it continues to provide a usable reading even in the event of a loss of instrument power to any connected transmitter.
Engineering Design of the Spirax Sarco ILVA
The Spirax Sarco ILVA is available in flanged, in-line configurations from DN100 up to DN300, constructed from robust stainless steel and carbon steel body materials rated for operating pressures up to 1450 psi and temperatures from -29°C to 400°C (-20°F to 752°F), covering saturated and superheated steam duties as well as general liquid and gas metering. The piston and spring assembly is fully removable for inspection or recalibration without disturbing the pipeline flanges, and the meter body accepts a range of local indicators, differential pressure transmitters, and mass flow computers depending on whether the application requires a simple visual rate indication or a fully integrated 4-20 mA / digital output for the plant SCADA system.
Installation follows standard flanged in-line practice with defined upstream and downstream straight-pipe requirements, and the ILVA20 variant is commonly paired with the Spirax Sarco MVT10 differential pressure and mass flow transmitter for saturated and superheated steam service, giving a fully engineered flow measurement package rather than a bare mechanical sensor. The compact stem design available on the larger DN250 and DN300 sizes reduces overall installed footprint in constrained plant rooms, a frequent constraint in retrofit projects across older GCC process facilities.
Key Features
The Spirax Sarco ILVA combines mechanical simplicity with wide-range accuracy, and the following Spirax Sarco ILVA features explain why it remains a preferred flowmeter for steam and process utilities across Oman and the GCC:
- Self-acting, spring-loaded variable area design requires no external power to generate a flow signal.
- Unrivalled 100:1 turndown ratio, far exceeding the typical 3:1 to 4:1 range of fixed-geometry meters.
- Typical accuracy of ±1% of reading maintained across the full flow range.
- Suitable for steam, liquids, and gases, including saturated and superheated steam service.
- Available in flanged in-line sizes from DN100 to DN300 for a wide range of pipeline diameters.
- Operating range from -29°C to 400°C and pressures up to 1450 psi covers demanding process duties.
- Compatible with the Spirax Sarco MVT10 mass flow transmitter for full digital integration.
- Removable piston and spring assembly simplifies inspection and recalibration without pipeline disruption.
Industrial Applications
The Spirax Sarco ILVA is widely deployed on steam and condensate distribution mains where load varies significantly between shifts or seasons, including central utility plants, process heating headers, and boiler house steam metering for energy accounting and cost allocation between departments or tenants. District cooling plants, RO desalination pre-treatment steam systems, and hospitality and hospital complexes across the region use the ILVA to track steam consumption accurately at both base-load and peak-demand conditions, supporting energy audits and utility cost recovery programs.
As the officially authorized partner for Spirax Sarco, Seven Star LLC distributes the ILVA flowmeter to utility, process, and facilities management teams throughout the Sultanate of Oman and the GCC, including the Sohar and Salalah industrial and free zones where large steam-consuming industries continue to require accurate, wide-turndown flow measurement for both operational and regulatory reporting purposes. Engineers in Muscat and across the region rely on Seven Star LLC for genuine ILVA units, sizing support, and integration guidance with mass flow transmitters and plant control systems.
Technical Specifications
The table below summarizes the key technical specifications of the Spirax Sarco ILVA self-acting variable area flowmeter.
| Parameter | Specification |
|---|---|
| Model | Spirax Sarco ILVA (Gilflo ILVA) |
| Measurement Principle | Self-acting, spring-loaded variable area |
| Turndown Ratio | 100:1 |
| Accuracy | ±1% of reading |
| Available Sizes | DN100, DN150, DN200, DN250, DN300 |
| End Connections | In-line flanged |
| Operating Temperature Range | -29°C to 400°C (-20°F to 752°F) |
| Maximum Operating Pressure | Up to 1450 psi (1021 m H²O) |
| Process Media | Steam (saturated and superheated), liquids, gases |
| Compatible Transmitter | Spirax Sarco MVT10 mass flow transmitter |
| Body Materials | Stainless steel / carbon steel construction |
Request a Quote for Spirax Sarco ILVA Self-Acting Variable Area Flowmeter
Utility and process engineering teams evaluating wide-turndown steam and flow metering are invited to submit a formal RFQ for the Spirax Sarco ILVA through Seven Star LLC. As the authorized partner for Spirax Sarco in Oman and the GCC, Seven Star LLC maintains regional warehouse stock, provides full technical datasheets on request, and connects buyers directly with the instrumentation division for sizing, MVT10 transmitter pairing, and installation guidance. Contact Seven Star LLC today to secure a genuine, warrantied Spirax Sarco ILVA flowmeter for your Muscat, Sohar, or Salalah facility.
