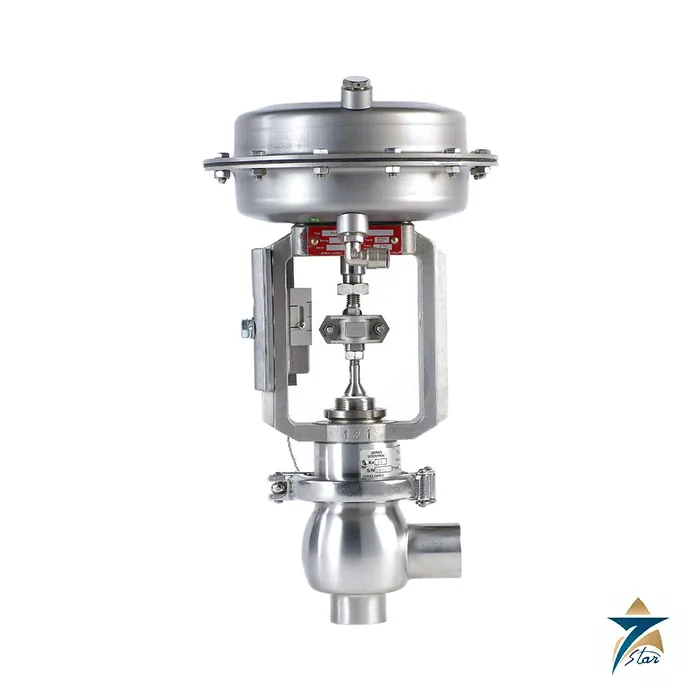

Spirax Sarco STERI-TROL Clean Service Control Valve
Overview
Spirax Sarco STERI-TROL is a pneumatically actuated, two-port angle pattern clean service control valve manufactured entirely from 316L stainless steel and purpose-built for modulating control of clean steam, pure steam, and process fluids in the pharmaceutical and biotechnology sectors. The self-draining, crevice-free design incorporates high-performance FDA approved seals together with a quick-release body and bonnet, so the valve can be opened for inspection or maintenance without disturbing the surrounding pipework, and the 3-A and EHEDG-compliant design is available with all industry standard hygienic connections.
Working closely with plant engineers in the region, Seven Star LLC proudly supplies the Spirax Sarco STERI-TROL to pharmaceutical manufacturers, hospitals, and biotechnology plants across the Sultanate of Oman and the wider GCC. Facilities in Muscat, Sohar, and Salalah sourcing sterilisation control valves can obtain Spirax Sarco hardware with manufacturer documentation, including EN10204 3.1 and surface finish certification where specified, and locally based technical support.
Operating Principle of the Spirax Sarco STERI-TROL
The STERI-TROL is a two-port control valve driven by a pneumatic actuator – PNS3000, PNS4000, PN9000E, or PN9000R series – and can be interfaced with any Spirax Sarco positioner for precise modulating control. The parabolic plug design is offered in equal percentage (E) characteristic, suited to most modulating process control applications with good control at low flowrates, or linear (L) characteristic, which is primarily used where the differential pressure across the valve remains constant. Rangeability reaches 50:1 for equal percentage trims and 30:1 for linear trims, and a micro-flow trim option is available for sizes up to DN25 for fine control at very low Kv.
Seating is available as metal-to-metal as standard, giving leakage rates as low as 0.01% of Kv, or with a soft Viton seal option meeting IEC 534-4 Class VI shut-off for applications demanding bubble-tight isolation. Because the valve body, plug, stem, and bonnet are all 316L stainless steel with an internal surface finish below 0.375 μm, and the SB variant adds an aseptic steam-sanitized bonnet as standard, the practical consequence is a control valve that can be steam-sanitized in place between batches while maintaining precise, repeatable modulating control – without the contamination pathways that plague valves not designed for aseptic service.
Engineering Design of the Spirax Sarco STERI-TROL
Two body variants are offered: the SB, a two-port angle pattern design with an aseptic steam-sanitized bonnet as standard, and the SA, a two-port angle pattern design intended for chemical-free steam applications. Both use a quick-release body and bonnet clamp arrangement, allowing maintenance teams to service the plug, stem, and seal set without cutting into the surrounding pipe run – a significant advantage in a validated aseptic suite where pipework disturbance triggers requalification.
The Spirax Sarco STERI-TROL is available across DN15 to DN100 (½” to 4″) with butt weld, tube weld, screwed, flanged, and sanitary clamp connections, including ASME BPE tri-clamp, DIN 32676, DIN 11850, and DIN 11864 aseptic thread options. Travel is 20 mm on DN15 to DN50 sizes and 30 mm on DN65 to DN100, and the valve is fully compliant to ASME BPE SF4 2019 with FDA and USP 26 Class VI approved sealing materials, EN10204 3.1 certificates, and surface finish certificates supplied as standard on every unit.
Key Features
The Spirax Sarco STERI-TROL is engineered for validated aseptic and clean steam service, and facility engineers specifying a Spirax Sarco STERI-TROL for a new sterilisation line benefit from the following core capabilities:
- All-316L stainless steel construction across body, plug, stem, and bonnet resists corrosion in clean steam and pure steam duty.
- Self-draining, crevice-free aseptic body eliminates product hold-up points that compromise sterility assurance.
- Quick-release body and bonnet clamp allows maintenance without disturbing validated pipework connections.
- Equal percentage (50:1) and linear (30:1) flow characteristics with optional micro-flow trim for precise low-flow modulation.
- Metal-to-metal or soft Viton seating options deliver leakage as low as 0.01% of Kv or Class VI bubble-tight shut-off.
- Sizes from DN15 to DN100 (½” to 4″) with butt weld, screwed, flanged, and sanitary clamp connection options.
- Compliant to ASME BPE SF4 2019 with FDA and USP 26 Class VI approved sealing materials as standard.
- EN10204 3.1 and surface finish certification supplied as standard, supporting GMP and validation documentation packages.
Industrial Applications
The Spirax Sarco STERI-TROL is specified for modulating control of clean steam, pure steam, and process fluids feeding autoclaves, sterilisers, bioreactors, and clean-in-place systems across pharmaceutical manufacturing and hospital sterile processing departments. Its aseptic steam-sanitized bonnet and FDA-approved sealing materials make it well suited to validated GMP environments where sterilisation control valves must withstand repeated steam-in-place cycles without loss of seat integrity or accuracy.
With fast quotation turnaround and technical support, Seven Star LLC distributes the STERI-TROL to hospital groups, pharmaceutical manufacturers, and biotechnology plants across Muscat, Sohar, and the Salalah free zone, as well as wider GCC markets investing in sterile processing and central sterile supply department upgrades. Engineering teams commissioning a new autoclave feed or retrofitting an ageing sterilisation control valve can rely on Seven Star LLC for genuine Spirax Sarco hardware, full documentation, and regional technical support throughout project delivery.
Technical Specifications
The table below summarizes the core specifications of the Spirax Sarco STERI-TROL clean service control valve, including sizes, materials, and pressure ratings.
| Parameter | Specification |
|---|---|
| Model | Spirax Sarco STERI-TROL ‘S’ series (SB / SA) |
| Body material | 316L stainless steel (ASTM A479-316L) |
| Design | Two-port angle pattern pneumatic control valve, aseptic steam-sanitized bonnet (SB) or chemical-free steam (SA) |
| Sizes | DN15 to DN100 (½” to 4″) |
| Connections | Butt weld, tube weld, screwed, flanged, sanitary clamp (ASME BPE, DIN 32676, DIN 11850, DIN 11864) |
| Flow characteristic | Equal percentage (50:1 rangeability) or linear (30:1 rangeability) |
| Travel | 20 mm (DN15–DN50) / 30 mm (DN65–DN100) |
| Seating | Metal-to-metal (0.01% of Kv leakage) or soft Viton seal (IEC 534-4 Class VI) |
| Maximum design pressure | 16 bar g @ 120°C (PN16) |
| Maximum design temperature | 200°C @ 14 bar g |
| Internal surface finish | < 0.375 μm mechanical or electro polished |
| Actuators | PNS3000, PNS4000, PN9000E, PN9000R pneumatic series |
| Certification | ASME BPE SF4 2019, FDA, USP 26 Class VI, EN10204 3.1 as standard |
| Media | Clean steam, pure steam, process fluids |
Request a Quote for Spirax Sarco STERI-TROL Clean Service Control Valve
Seven Star LLC is ready to support your sterilisation control valve specification with genuine Spirax Sarco STERI-TROL valves quoted and delivered from our regional warehouse. Submit a formal RFQ for pricing and lead times, request the full technical datasheet for validation and qualification documentation, or contact our instrumentation division directly to size a valve for your autoclave, steriliser, or clean steam distribution project. With engineering support in Muscat, Seven Star LLC provides manufacturer documentation and dedicated local technical support for every clean steam control project.
