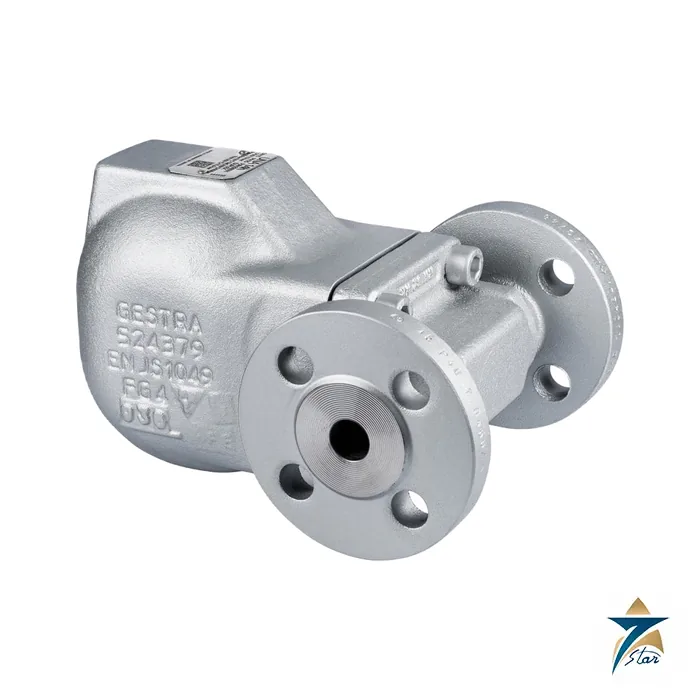

GESTRA UNA 16 Ball Float Steam Trap PN 40 DN 15-25
Description
A ball float steam trap for large condensate flows
The GESTRA UNA 16 is a carbon steel ball float steam trap in DN 15, 20 and 25 (NPS 1/2, 3/4 and 1 inch). It discharges condensate from steam, other gases and gaseous mixtures through a float-operated control unit with a rolling ball seal, and the manufacturer states that its operation is unaffected by backpressure. The same data sheet covers the cast-iron-cover UNA 14 (PN 25) and the stainless steel UNA 16A, so one page serves the whole compact UNA range. Typical duties are heat exchangers, process heaters, tracing headers and any steam user that needs continuous condensate removal with tight shut-off.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | UNA 16, carbon steel, PN 40 / Class 150 (sibling models: UNA 14 PN 25; UNA 16A stainless steel PN 40 / Class 150) |
| Nominal size | DN 15, 20, 25 (NPS 1/2, 3/4, 1 inch) |
| End connections, UNA 16 | Flange EN 1092-1 B1 PN 40; flange ASME B16.5 Class 150 RF; screwed socket ISO 228-1 G; screwed socket ASME B16.11 NPT; socket-weld end DIN EN 12760; socket-weld end ASME B16.11 Class 3000; butt-weld end EN 12627 |
| Body / cover material | Body 1.0460 (SA105); cover 1.0619 (SA216-WCB); body gasket graphite/CrNi |
| Control units | Duplex (float plus 5N2 membrane regulator capsule for automatic venting), Simplex (float only), Simplex R (float plus continuous venting through an internal tube) |
| Orifices and max. differential pressure | O 4 = 4 bar; O 13 = 13 bar; O 22 = 22 bar |
| Pressure rating, flange PN 40 | 40 bar g at -10 to 50 °C, falling to 22.8 bar g at 400 °C |
| Pressure rating, flange Class 150 | 19.6 bar g at -29 to 38 °C, falling to 5.5 bar g at 425 °C |
| Face-to-face length, flanged | 150 mm (DN 15 and 20), 160 mm (DN 25) |
| Weight, UNA 16 flanged PN 40 | 7.0 kg (DN 15), 7.5 kg (DN 20), 8.1 kg (DN 25) |
| Fluid group (PED) | UNA 16: Group 2; UNA 16A: Groups 1 and 2 |
| Optional extras | Float lifting lever and vent hole; manual vent valve and sealing plug; Perbunan rolling ball; EN 10204 inspection certificate on request |
Control unit, flow direction and sibling models
The body can be turned to suit the pipework: the data sheet shows a horizontal pipe version with flow to the left (hl), an optional version with flow to the right (hr) and a vertical version with downward flow (v), and an installed trap can later be converted between the horizontal and vertical positions by rotating the cover and the control unit. The Duplex unit is intended for saturated steam systems, where the temperature-dependent capsule vents air on start-up. Simplex is the choice for cold condensate and distillate, and Simplex R for draining rotating cylinders. The additional cold-water start-up capacity of the Duplex capsule is listed from about 180 kg/h at 1 bar to about 840 kg/h at 22 bar differential.
| Model | Rating | Design | Size |
|---|---|---|---|
| UNA 14 | PN 25 | Ductile iron cover, orifices 4 and 13 bar | DN 15 to 25 |
| UNA 16 | PN 40 / Class 150 | Carbon steel, orifices 4, 13 and 22 bar | DN 15 to 25 |
| UNA 16A | PN 40 / Class 150 | Stainless steel 1.4404 body, orifices 4, 13 and 22 bar | DN 15 to 25 |
Selection and installation notes
Choose the orifice from the real differential pressure across the trap, which is the inlet pressure minus the outlet pressure and falls by roughly 1 bar for every 7 m of lift in the condensate line. The capacity chart in the data sheet gives hot condensate capacity per orifice, and cold water capacity is obtained with a correction factor. For potentially explosive atmospheres the sheet states that the trap has no ignition source of its own, but surface temperature from the fluid and static charge on the installed equipment remain the responsibility of the plant owner. Compare it with the Spirax Sarco FTS14 ball float trap on this site, or browse all steam trap and clean steam products.
Documents and quotation
The attached six-page GESTRA data sheet 810827 contains the pressure-temperature curves, dimensions and capacity chart. To quote the correct trap, send the steam pressure, back pressure, condensate load, end connection standard, control unit type and whether stainless steel or an inspection certificate is required. Confirm the final configuration against the current manufacturer documents before ordering.
