GESTRA MPA 46 Rapid-Action Boiler Blowdown Valve PN 40

Name: GESTRA MPA 46 Boiler Blowdown Valve PN 40
Brand: GESTRA
SKU: MPA 46

Description

A rapid-action blowdown valve for automatic sludge discharge from steam boilers

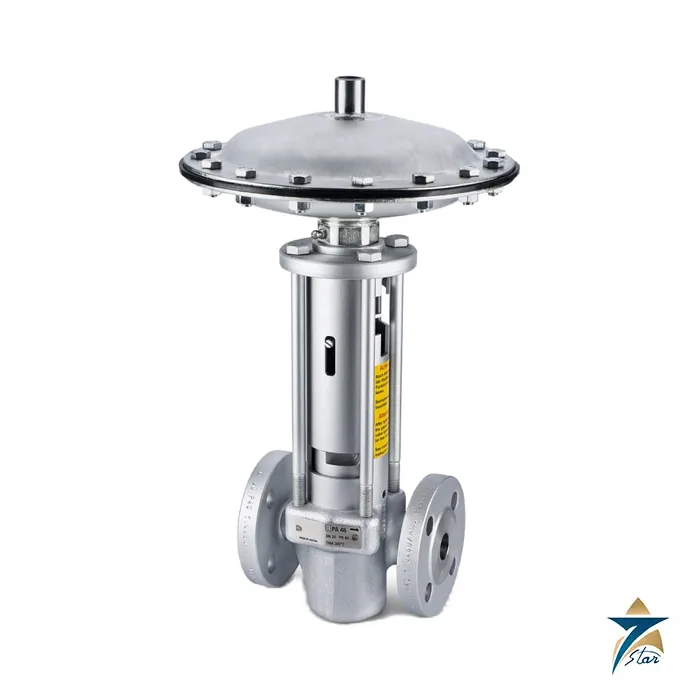

The GESTRA MPA 46 is a rapid-action intermittent (bottom) blowdown valve with a diaphragm actuator for automatic operation. It is installed in the blowdown pipe of a steam boiler to discharge boiler water carrying non-metallic solids. When it opens, the large cross-section of the orifice creates a suction effect that discharges the precipitated sludge, and when it closes the spring-loaded valve cone is forced back into the seat rapidly. The diaphragm actuator is driven by compressed air or pressurised water as control fluid and performs a brief, repeatable blowdown.

The data sheet covers manual PA valves and automatic MPA valves in three pressure classes: 46 (PN 40, Class 150 and 300, DN 20 to 50), 47 (PN 63, Class 400, DN 25, 40, 50) and 48 (PN 100, Class 600, DN 25, 40, 50). A PA valve is opened by hand with its lever for two to three seconds.

Technical specifications

Parameter	Specification
Types	MPA 46 / MPA 47 / MPA 48 (automatic); PA 46 / PA 47 / PA 48 (manual)
MPA 46 sizes; rating	DN 20, 25, 32, 40, 50 (3/4 to 2 inch); PN 40, Class 150 and Class 300
MPA 47 / MPA 48	DN 25, 40, 50; PN 63 / Class 400 and PN 100 / Class 600
MPA 46, PN 40 flanged (EN 1092-1)	40.0 barg at 20 C, 37.1 barg at 100 C, 33.3 barg at 200 C, 27.6 barg at 300 C; operating data: max. 31 bar at boiling temperature 237.5 C
MPA 46, Class 150 / Class 300	19.6 to 10.2 barg (38 to 300 C) / 51.1 to 39.8 barg (38 to 300 C); Class 300 operating data: max. 41.5 bar at 254 C
Fluids	Group 2 fluids under the Pressure Equipment Directive
Control fluid and pressure	Compressed air or pressurised water; control pressure must not exceed 8 bar; minimum pressure from a diagram against differential pressure
Materials	Body, union nut 1.0460 / SA 105; sealing plug 1.7225 / SA 193 B7; gasket 1.4301 (2.4068 for 48); seat 1.4034 and cone 1.4122 hardened; PTFE yarn packing; EPDM control diaphragm; galvanised steel actuator (1.0334)
Connections, 46	Flange EN 1092-1 B1 PN 40; ASME B16.5 Class 150 RF/RFS, Class 300 RF; socket-weld DIN EN 12760 / ASME B16.11 Class 3000; butt-weld EN 12627 or ASME B16.25
Dimensions	Actuator diameter 235 mm; H2 55 mm (DN 20-32) or 80 mm (DN 40/50); H3 350 mm (DN 20-32) or 360 mm (DN 40/50); H4 350 mm; min. 150 mm free space for actuator removal
PN 40 flanged, H1 / L	DN 20: 105 / 150 mm; DN 25: 115 / 160; DN 32: 140 / 180; DN 40: 150 / 200; DN 50: 165 / 230
Classification	Ex II 2G Ex h IIA T6…T1 Gb; II 2D Ex h IIIA T20 C…T374 C Db for (M)PA 46/47/48

Opening can be triggered by the GESTRA TA program controller, by a continuous blowdown controller such as LRR 1-40, LRR 1-52, LRR 1-53 or LRR 1-60, or by SPECTORcontrol with CAN bus. Optional extras include proximity switch retrofit kits and an emergency lever.

Sizing and installation notes

Select the pressure class from the boiler design pressure and take the control pressure from the diagram for your differential pressure; DN 20 to 32 and DN 40 to 50 have different curves. A PA valve needs an actuating force on the lever of 300 N (DN 20-32) or 490 N (DN 40/50) for PN 40 butt-weld versions, rising with pressure class, so the automatic MPA is the practical choice for frequent blowdown. If exhaust air from a pneumatic actuator can swirl dust in a hazardous area, the plant owner must account for it in zoning, and static charge between valve and pipework is the plant operator responsibility.

For continuous (top) blowdown control see the GESTRA LRGT 16-1 conductivity transmitter and the controller range under control valves and regulators.

Documents and quotation

The attached GESTRA data sheet 818424 lists ratings, materials, dimensions and actuating forces for PA and MPA 46, 47 and 48. Send the boiler design pressure, nominal size, connection standard, control fluid and trigger method for a quotation, and confirm the exact model and certificates before ordering.
