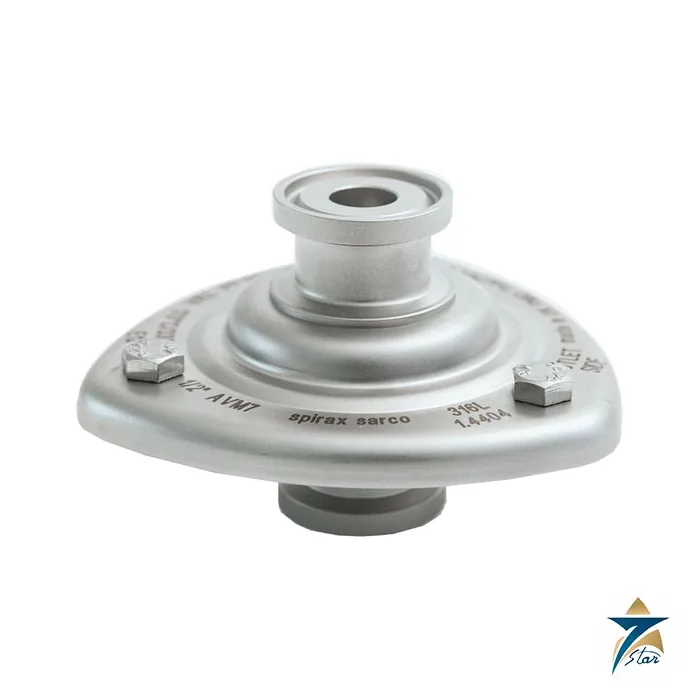

Spirax Sarco AVM7 Stainless Steel Thermostatic Air Vent
Overview
The Spirax Sarco AVM7 is a maintainable, all-316L stainless steel thermostatic air vent engineered specifically for clean steam and pure steam systems where air and non-condensable gases must be continuously purged without compromising sterility. Air trapped inside a clean steam system reduces the partial pressure of steam at the point of use, lowering the effective sterilization temperature and creating a direct risk to process validation in pharmaceutical, healthcare, and food-grade applications. The AVM7’s balanced-pressure thermostatic element automatically discharges air and non-condensable gases at start-up and during normal running, closing tightly once pure steam is present, so downstream equipment such as autoclaves, sterilizers, and CIP/SIP process vessels always receive steam at its true saturation temperature.
Backed by genuine manufacturer documentation, Seven Star LLC proudly supplies the AVM7 Stainless Steel Thermostatic Air Vent to hospitals, pharmaceutical manufacturers, and food and beverage processors throughout Oman and the wider GCC. Facility engineers and procurement teams in Muscat, Sohar, and Salalah can source Spirax Sarco clean steam ancillaries through Seven Star LLC with manufacturer documentation and responsive local technical support – critical in validated environments where substitute components are not an option.
Operating Principle
Inside the Spirax Sarco AVM7 air vent, a balanced-pressure thermostatic capsule element senses the temperature difference between saturated steam and the cooler mixture of air and condensate that collects at high points and dead legs in a clean steam distribution system. Because air-laden steam runs measurably cooler than pure saturated steam at the same pressure, the capsule contracts when air is present, lifting the valve off its seat and venting the trapped gases to atmosphere or to a suitable discharge point. As soon as pure, air-free steam reaches the element, the capsule expands and the valve closes drop-tight, preventing any live steam loss during normal operation.
This self-modulating thermal response means the Spirax Sarco AVM7 requires no external power, no electronic controls, and no manual intervention – it responds automatically to changing air loads during boiler warm-up, load swings, and shutdown-restart cycles. The practical consequence for a clean steam network is continuous air-free operation with no moving parts subject to wear beyond the capsule itself, no measurable pressure drop across the vent during normal running, and no risk of process fluid contamination since the wetted parts are fully 316L stainless steel with a crevice-minimized internal geometry designed to meet hygienic and pharmaceutical surface finish expectations.
Engineering Design of the Spirax Sarco AVM7
The Spirax Sarco AVM7 is constructed entirely from 316L stainless steel, chosen for its corrosion resistance against pure steam condensate and its acceptability in pharmaceutical, biotech, and food contact applications where material traceability and low leachability are mandatory. The body geometry is deliberately minimized in internal crevices and dead space, eliminating the microbial harborage points that non-hygienic vent designs introduce, and the compact low-profile shape allows the AVM7 to be mounted directly at high points, on process vessel headspaces, or in-line on clean steam distribution mains without requiring extensive pipework modification.
Serviceability is built into the design: the AVM7 is fully maintainable, with the internal thermostatic capsule and seat accessible for inspection and replacement without removing the body from the pipeline, minimizing downtime during scheduled maintenance in validated facilities. Standard connection sizes accommodate screwed and butt-weld end configurations common to clean steam installations, and the unit is rated for direct integration into the same pressure and temperature envelope as the rest of the Spirax Sarco clean steam product range, allowing it to be specified alongside compatible clean steam traps and separators for a fully coordinated system.
Key Features
Specifying the Spirax Sarco AVM7 gives clean steam system operators hygienic construction combined with proven thermostatic reliability. The Spirax Sarco AVM7 delivers the following advantages:
- Constructed entirely from 316L stainless steel for full compatibility with pharmaceutical, healthcare, and food-grade clean steam applications.
- Minimal-crevice body geometry reduces microbial harborage risk and supports hygienic system validation requirements.
- Balanced-pressure thermostatic capsule automatically vents air and non-condensable gases without external power or controls.
- Operates close to true steam saturation temperature, protecting sterilization and process integrity at the point of use.
- Drop-tight closure once pure steam is present, preventing unnecessary live steam loss during normal running.
- Fully maintainable design allows in-line servicing of the capsule and seat without major pipework disturbance.
- Compact, low-profile construction suits high-point venting on autoclaves, sterilizers, and clean steam mains.
- Compatible with the wider Spirax Sarco clean steam range for a coordinated, validated system specification.
Industrial Applications
The Spirax Sarco AVM7 is specified wherever clean or pure steam must reach the point of use without the sterilization losses that trapped air causes. In hospital sterile services departments and pharmaceutical manufacturing plants, air venting at autoclave and sterilizer headspaces ensures the full rated temperature is achieved throughout the load, supporting compliance with validation protocols and reducing failed sterilization cycles. Food and beverage processors use the AVM7 on CIP and SIP systems and on process vessel steam jackets, where trapped air pockets would otherwise create cold spots that compromise both product safety and thermal efficiency.
Working closely with plant engineers in the region, Seven Star LLC distributes the AVM7 to healthcare facilities, pharmaceutical manufacturers, and food processing plants across the Sultanate of Oman and the broader GCC, including projects in the Sohar and Salalah free zones where clean steam utilities support export-certified production. Engineering consultants and EPC contractors specifying clean steam ancillaries for hospital and pharma builds in Muscat routinely turn to Seven Star LLC for genuine AVM7 units with full documentation, ensuring commissioning teams can validate air-free steam delivery from day one.
Technical Specifications
Key technical parameters for the Spirax Sarco AVM7 Stainless Steel Thermostatic Air Vent are summarized below, confirming why the Spirax Sarco AVM7 is the preferred choice for validated clean steam networks.
| Parameter | Specification |
|---|---|
| Model | Spirax Sarco AVM7 |
| Product Type | Balanced-pressure thermostatic air vent |
| Body Material | 316L Stainless Steel (1.4404) |
| Application | Clean steam / pure steam systems |
| Element Type | Balanced-pressure thermostatic capsule |
| Connection Size | ½″ (DN15) standard, per manufacturer datasheet TI-P123-22 |
| Design Feature | Minimal-crevice, self-draining hygienic geometry |
| Maintainability | Fully maintainable – in-line capsule and seat service |
| Typical Industries | Pharmaceutical, healthcare, food & beverage, CIP/SIP systems |
| Related Range | AVM7 Food+ variant available for extended hygienic requirements |
Request a Quote for Spirax Sarco AVM7 Stainless Steel Thermostatic Air Vent
Seven Star LLC is ready to support your clean steam system specification with the Spirax Sarco AVM7 Stainless Steel Thermostatic Air Vent. Order the Spirax Sarco AVM7 directly from our instrumentation division. With fast quotation turnaround and technical support, we provide formal RFQ support, availability and lead time confirmed at quotation, full technical datasheets for validation documentation, and direct access to our instrumentation division for sizing and application guidance. Contact Seven Star LLC today to specify genuine AVM7 units for your pharmaceutical, healthcare, or food-grade clean steam project in Muscat or across the region.
Related Products
- Spirax Sarco STS17.2 Steam-Trapping Station
- Spirax Sarco M70i Sanitary Ball Valve
- Spirax Sarco SVL488 Clean Service Safety Valve
- Spirax Sarco STERI-TROL Clean Service Control Valve
- Spirax Sarco CS10 Stainless Steel Clean Steam Separator
- Spirax Sarco BTM7 Stainless Steel Thermostatic Clean Steam Trap
- Instruction Manual Spirax Sarco AVM7 Stainless Steel Thermostatic Air Vent Manual Download
Spirax Sarco products listed here
Three groups make up the listing:- Clean steam and hygienic equipment: the CSG-HS clean steam generator, STERI-TROL clean service control valve, SRV66 sanitary pressure reducing valve, SVL488 clean service safety valve and the BT6-B balanced pressure thermostatic steam trap
- Isolation valves: BSA and BSAT bellows sealed stop valves, the BSA3HP high pressure version, A3S and A3SS valves and the DBB3 double block and bleed valve
- Steam metering: ILVA variable area flowmeter and the TVA and TFA target flowmeters
Where Spirax Sarco steam equipment is used
Plant steam systems in refineries, chemical plants, laundries and food production use Spirax Sarco steam traps, stop valves and flowmeters for distribution and energy accounting. Clean steam products serve sterilizers, bioreactors, pharmaceutical water systems and food contact processes, where stainless steel wetted parts and documented surface finish are required. Requests from the GCC are often for a like-for-like trap or valve on an existing line.Ordering Spirax Sarco parts: what we need
Give the product type (for example BSA3T or BT6-B), nominal size, end connection and its standard (flanged PN or ASME class, screwed, butt weld or sanitary clamp), body material and the operating pressure and temperature. For steam traps add the condensate load and differential pressure. For Spirax Sarco flowmeters send line size, steam pressure and the flow range, plus the display or flow computer required. On clean steam items, state the surface finish and the material certificates you need. A nameplate photo helps where the type is not known.Browse Spirax Sarco products by category: Clean Steam, Globe Valve, Flowmeters.
