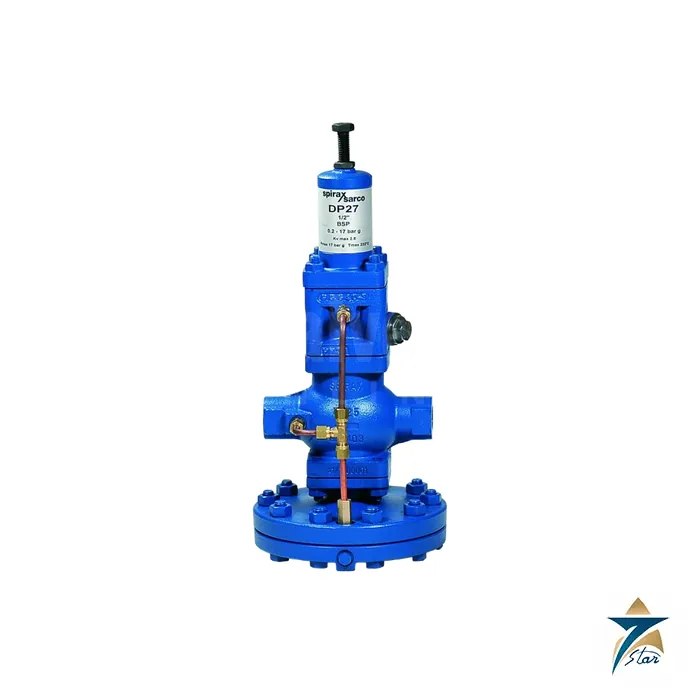

Spirax Sarco DP27 Pilot-Operated Pressure Reducing Valve

Overview

Spirax Sarco DP27 is a pilot-operated pressure reducing valve engineered to hold a stable, accurate downstream steam or compressed-air pressure across widely varying flow demand and inlet pressure conditions. Built around an SG (ductile) iron body with a diaphragm-actuated pilot valve assembly, the DP27 is one of Spirax Sarco’s most widely specified self-acting pressure reduction stations, used throughout process heating, sterilization, laundry, and general steam distribution systems where a single, reliable set-point valve must replace a more complex control loop.

As a regional supplier of Spirax Sarco products, Seven Star LLC supplies the DP27 pilot-operated pressure reducing valve to process plants, utilities contractors, and steam system operators across Oman, Muscat, and the wider GCC, supporting every unit with application sizing support and spares supplied on request.

Operating Principle

The Spirax Sarco DP27 uses a small pilot valve, loaded by an adjustable variable-rate conical spring, to sense the downstream pressure through a sensing line and modulate a pressure signal onto the diaphragm of the main valve. As downstream demand rises and pressure falls, the pilot opens further, increasing the loading pressure on the main diaphragm and driving the main valve plug open to admit more steam or air; as demand falls, the reverse happens, closing the main valve to hold set point. Because the pilot amplifies a small sensing signal into full main-valve travel, the DP27 achieves tight, stable control across a wide turndown range without an external power supply, actuator, or controller.

This self-acting, mechanically-amplified design means the valve has no electronic components to fail, no external air or power supply to lose, and no moving parts exposed to the process beyond the diaphragm and main valve trim – giving plant engineers a pressure reduction station with very high reliability and minimal maintenance overhead compared with an electronically actuated control valve performing the same duty.

Engineering Design of the Spirax Sarco DP27

The Spirax Sarco DP27 body is manufactured from SG (spheroidal graphite) ductile iron to DIN 1693 GGG-40.3 / BS EN 1563 EN-GJS-400-18-LT, rated PN25 (25 bar g at 120°C) with a cold hydraulic test pressure of 38 bar g, and is available in DN15 (including a low-capacity DN15LC trim), DN20, DN25, DN32, DN40, and DN50 sizes. Connections are offered as screwed BSP (Rp, ISO 7-1) or NPT on the smaller sizes, and as flanged EN 1092 PN16/PN25, BS10 Table H, or ASME 300 on larger sizes, giving specifying engineers flexibility to match existing pipework standards without adaptors.

Internally, the valve uses phosphor bronze diaphragms in the pilot and main valve assemblies together with stainless steel trim, and includes a built-in strainer screen ahead of the main valve seat to protect the seating surfaces from pipeline debris during commissioning and normal operation. The pilot spring housing sits directly above the main valve body and is field-adjustable, allowing the downstream set pressure to be tuned across the full 0.2–17 bar g range without removing the valve from the line, and the union/flanged construction on either side of the main valve allows the internals to be serviced without disturbing the pipe run.

Key Features

The Spirax Sarco DP27 combines proven pilot-operated design with practical serviceability, giving plant engineers a dependable pressure reduction station for steam and compressed air lines. Key features include:

• Pilot-operated diaphragm control giving accurate downstream pressure holding across a wide flow turndown.
• Downstream pressure adjustment range of 0.2 to 17 bar g via a field-adjustable variable-rate conical spring.
• SG ductile iron body rated PN25, suitable for saturated steam up to 232°C and compressed air service.
• Available in DN15 to DN50 with screwed BSP/NPT or flanged EN1092, ASME 300, and BS10 connection options.
• Integral strainer screen protects the main valve seat from pipeline debris.
• Phosphor bronze diaphragms and stainless steel trim for long service life in steam and compressed air duty.
• Metal-to-metal seating for tight shutoff and simplified spare parts stocking.
• Compliant with the European Pressure Equipment Directive 2014/68/EU for safe installation on classified pressure systems.

Industrial Applications

The Spirax Sarco DP27 is deployed wherever a plant needs to reduce a higher boiler or header pressure down to a safe, stable working pressure for process equipment, and Seven Star LLC sees strong demand for it across Oman’s hospitality, food processing, and light manufacturing sectors, including hotel and hospital laundry steam supplies, commercial kitchen steam kettles and sterilizers, and general process heating skids in the Sohar and Salalah economic zones. It is equally common on compressed air distribution headers feeding pneumatic tools and instrumentation where a stable secondary pressure must be maintained regardless of upstream compressor cycling.

As the trusted supplier for Spirax Sarco, Seven Star LLC supplies the DP27 to EPC contractors, utilities engineers, and maintenance teams across Oman and the GCC, supplying genuine valves with correct sizing calculations for the specific steam or air load, connection standard, and pressure reduction ratio required by the installation.

Technical Specifications

The table below summarizes the principal Spirax Sarco DP27 specifications for this pilot-operated pressure reducing valve.

Request a Quote for Spirax Sarco DP27

Seven Star LLC invites engineers, contractors, and procurement teams across Oman and the GCC to submit a formal RFQ for the Spirax Sarco DP27 pilot-operated pressure reducing valve. We supply on request with lead time confirmed at quotation, can supply the full manufacturer technical datasheet on request, and our instrumentation division is available to help size the correct Spirax Sarco DP27 valve trim and connection standard for your steam or compressed air system. In Oman and the GCC, Seven Star LLC provides the manufacturer datasheet and dependable local technical support for every DP27 supplied.
