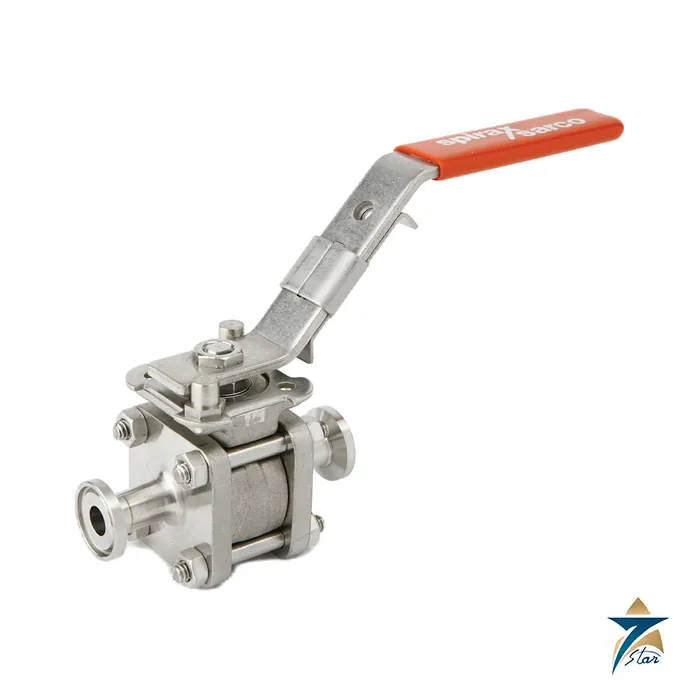

Spirax Sarco M70i Sanitary Ball Valve
Overview
The Spirax Sarco M70i is a 316L stainless steel sanitary ball valve designed and manufactured in accordance with ASME BPE, purpose-built for pharmaceutical, bio-processing and other high purity industries where bacteria growth and media deposits directly threaten product quality. Covering sizes from ½″ up to 2″, the M70i is complemented by the larger-bore M80i variant spanning 2½″ to 4″, giving specifying engineers a single hygienic ball valve platform across an entire clean utility or process pipeline. Both valves share the same ASME BPE-compliant internal geometry, low-crevice seat design and electropolished surface finish that make them the standard choice for isolation duty on WFI, pure steam and clean-in-place circuits.
With engineering support in Muscat, Seven Star LLC supplies the M70i Sanitary Ball Valve to pharmaceutical manufacturers, biotechnology facilities, food and beverage processors and hospital sterile services departments across the Sultanate of Oman and the wider GCC. Seven Star LLC supplies M70i and M80i valves on request with manufacturer documentation and local technical support for projects in Muscat, Sohar and Salalah.
Operating Principle of the Spirax Sarco M70i
The Spirax Sarco M70i uses a quarter-turn ball valve mechanism in which a precision-machined stainless steel ball, seated between two low-crevice elastomer or PTFE seats, rotates through 90° to move between fully open and fully closed positions. In the open position the ball’s bore aligns with the pipeline, presenting a full, unrestricted flow path with minimal pressure drop; in the closed position the ball rotates to block flow completely, giving tight, bubble-tight shutoff for isolation duty ahead of sterile process equipment. Because the ball and seat geometry is engineered specifically to ASME BPE tolerances, the valve avoids the dead-legs and stagnant crevices that conventional industrial ball valves can trap, which is critical where any pocket of retained fluid could harbor bacteria.
The valve’s actuation is direct and mechanically simple, transmitted through a stem seal that maintains hygienic integrity between the process fluid and the external operating mechanism, whether manually operated by lever or fitted with a pneumatic or electric actuator for automated CIP/SIP sequences. This straightforward quarter-turn action means the M70i and M80i deliver fast, repeatable cycling with predictable torque, low actuation forces, and consistent sealing performance over thousands of open-close cycles – a critical requirement for valves embedded in automated batch process skids where isolation timing directly affects cycle efficiency and product changeover speed.
Engineering Design of the Spirax Sarco M70i
The Spirax Sarco M70i and its larger-bore M80i counterpart are machined from solid 316L stainless steel bar and forgings, providing the corrosion resistance and mechanical strength required for repeated steam sterilization and aggressive CIP chemical cycles. Internal and external surfaces are electropolished to a hygienic finish that resists product adhesion and simplifies validation of cleaning procedures, while the valve body geometry is designed in strict accordance with ASME BPE dimensional standards to ensure compatibility with sanitary tri-clamp, weld-end or other hygienic connection types commonly specified across pharmaceutical and bio-processing piping networks.
Seat and seal materials are selected from FDA and USP Class VI compliant elastomers or PTFE compounds suited to steam sterilization temperatures and CIP chemical exposure, ensuring long service life without seat degradation or particulate shedding into the process stream. The M70i (½″ to 2″) and M80i (2½″ to 4″) size ranges are dimensionally compatible with one another, allowing a single valve family to be specified across an entire skid or distribution loop regardless of line size, simplifying spares holding and maintenance procedures for plant engineering teams across Oman.
Key Features
Specifying the Spirax Sarco M70i for a hygienic isolation point gives engineers a validated, ASME BPE compliant solution. The Spirax Sarco M70i Sanitary Ball Valve and its M80i counterpart bring a consistent set of hygienic design advantages to high purity isolation duty:
- 316L stainless steel construction throughout provides corrosion resistance against aggressive CIP chemicals and repeated steam sterilization cycles.
- ASME BPE-compliant design eliminates dead-legs and crevices where bacteria and media deposits could otherwise accumulate.
- Electropolished internal and external surfaces reduce product adhesion and simplify cleaning validation.
- Full-bore quarter-turn operation delivers unrestricted flow with minimal pressure drop when fully open.
- Bubble-tight shutoff isolates sensitive downstream equipment reliably between production and cleaning cycles.
- M70i covers ½″ to 2″ and M80i extends the range to 2½″ through 4″, giving one hygienic valve platform across an entire pipeline.
- Compatible with manual lever operation or pneumatic and electric actuation for automated CIP/SIP process sequences.
- FDA and USP Class VI compliant seat materials support pharmaceutical and food-grade regulatory documentation requirements.
Industrial Applications
The Spirax Sarco M70i remains the preferred choice wherever hygienic isolation is critical. This valve, the Spirax Sarco M70i, is specified for sanitary isolation duty across pharmaceutical bulk drug manufacturing, biotechnology fermentation and purification skids, vaccine production suites, and food and beverage processing lines where product quality depends on eliminating bacterial harborage points in the piping network. Typical duty includes isolating WFI (Water for Injection) generation and distribution loops, pure steam supply to sterilizers and autoclaves, clean-in-place and steam-in-place circuits on process vessels, and utility branch isolation on cleanroom and controlled environment systems. The larger M80i size range extends this same hygienic performance to main distribution headers and larger process vessel connections.
Backed by genuine manufacturer documentation, Seven Star LLC distributes the M70i and M80i Sanitary Ball Valve range to pharmaceutical manufacturers, food and beverage processors, hospital sterile services departments and biotechnology facilities throughout Muscat, the Sohar Freezone and the Salalah economic zone, as well as to EPC contractors executing high purity process projects across the GCC. Our technical division supports valve sizing, actuation selection and documentation packages so clients can meet stringent validation and regulatory requirements on schedule.
Technical Specifications
Ordering the Spirax Sarco M70i is straightforward once size and seat material are confirmed. Key technical data for the Spirax Sarco M70i Sanitary Ball Valve and the larger M80i variant are summarized below; consult manufacturer technical information sheets TI-P182-05 (M70i) and TI-P182-06 (M80i) for full dimensional and material certification data.
| Parameter | Specification |
|---|---|
| Model | Spirax Sarco M70i (M80i for larger bore) |
| Valve Type | Quarter-turn sanitary ball valve |
| Body Material | 316L stainless steel, ASME BPE compliant |
| Surface Finish | Electropolished, hygienic |
| M70i Size Range | ½″ to 2″ |
| M80i Size Range | 2½″ to 4″ |
| Seat Materials | FDA / USP Class VI compliant elastomer or PTFE |
| Actuation | Manual lever, pneumatic or electric actuator options |
| Typical Applications | WFI systems, pure steam supply, CIP/SIP circuits, pharmaceutical and food process isolation |
| Reference Documentation | TI-P182-05, TI-P182-06, SB-P182-08 |
Request a Quote for Spirax Sarco M70i Sanitary Ball Valve
Pharmaceutical, biotechnology and food-grade process engineers across Oman and the GCC can request a formal RFQ for the Spirax Sarco M70i Sanitary Ball Valve or its larger M80i counterpart directly from Seven Star LLC. Stock is held in our regional warehouse for fast dispatch, full technical datasheets and mill certificates are available on request, and our instrumentation and process division is on hand to advise on sizing, seat material selection and actuation packages. Working closely with plant engineers in the region, Seven Star LLC offers dependable local support – contact our team today to specify the right sanitary ball valve for your high purity pipeline.
Related Products
- Datasheet Spirax Sarco M70i Sanitary Ball Valve Datasheet Download
Spirax Sarco products listed here
Three groups make up the listing:- Clean steam and hygienic equipment: the CSG-HS clean steam generator, STERI-TROL clean service control valve, SRV66 sanitary pressure reducing valve, SVL488 clean service safety valve and the BT6-B balanced pressure thermostatic steam trap
- Isolation valves: BSA and BSAT bellows sealed stop valves, the BSA3HP high pressure version, A3S and A3SS valves and the DBB3 double block and bleed valve
- Steam metering: ILVA variable area flowmeter and the TVA and TFA target flowmeters
Where Spirax Sarco steam equipment is used
Plant steam systems in refineries, chemical plants, laundries and food production use Spirax Sarco steam traps, stop valves and flowmeters for distribution and energy accounting. Clean steam products serve sterilizers, bioreactors, pharmaceutical water systems and food contact processes, where stainless steel wetted parts and documented surface finish are required. Requests from the GCC are often for a like-for-like trap or valve on an existing line.Ordering Spirax Sarco parts: what we need
Give the product type (for example BSA3T or BT6-B), nominal size, end connection and its standard (flanged PN or ASME class, screwed, butt weld or sanitary clamp), body material and the operating pressure and temperature. For steam traps add the condensate load and differential pressure. For Spirax Sarco flowmeters send line size, steam pressure and the flow range, plus the display or flow computer required. On clean steam items, state the surface finish and the material certificates you need. A nameplate photo helps where the type is not known.Browse Spirax Sarco products by category: Clean Steam, Globe Valve, Flowmeters.
