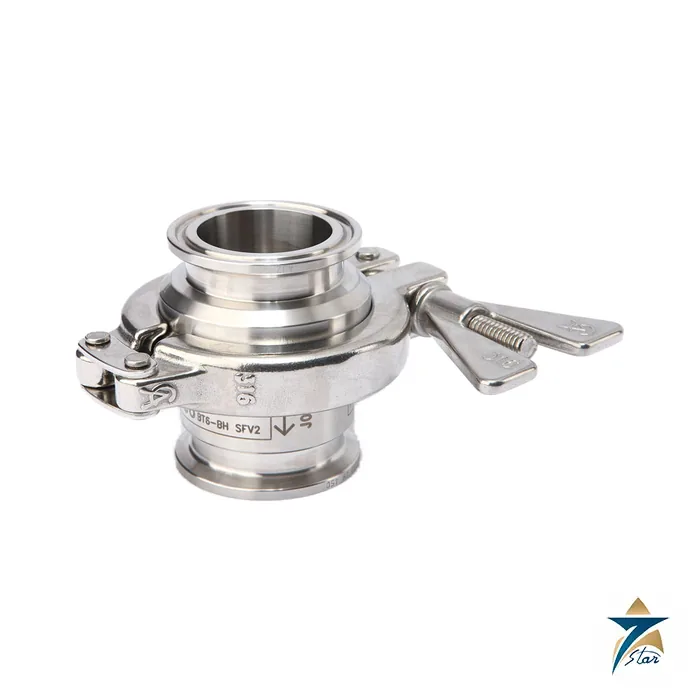

Spirax Sarco BT6-B Balanced Pressure Thermostatic Steam Trap
Overview
The Spirax Sarco BT6-B is a sanitary balanced pressure thermostatic steam trap purpose-built for hygienic clean steam systems where contamination control and reliable condensate removal are non-negotiable. Manufactured entirely in 316L stainless steel with a crevice-free, self-draining body incorporating a 15° angled seat, the BT6-B is designed to full ASME BPE philosophy and is finished to a surface roughness of up to 0.4 µm (16 micro-inch Ra), making it suitable for sterile barriers, clean-in-place (CIP) and steam-in-place (SIP) cycles, autoclave and sterilizer drainage, bioreactor sterilization trapping, and clean steam main drainage in pharmaceutical, biotechnology, food, and beverage processing plants.
With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the BT6-B to process heating, pharmaceutical, and food manufacturing facilities across Oman and the wider GCC. Buyers in Muscat, Sohar, and Salalah can source Spirax Sarco clean steam components through Seven Star LLC with technical support, the manufacturer datasheet, and lead time confirmed at quotation.
Operating Principle
The Spirax Sarco BT6-B uses a balanced pressure thermostatic capsule element filled with a liquid/vapour mixture that responds directly to the saturation temperature of the surrounding steam. As condensate collects and cools below saturation temperature, the pressure inside the capsule drops relative to the pressure of the surrounding steam space, causing the capsule to contract and open the valve. Once steam reaches the trap, the fill boils, the capsule pressure rises to balance against steam pressure, and the valve closes tightly against the seat, preventing live steam loss. This self-modulating response occurs at every pressure across the trap’s working range without any external adjustment.
Because the standard element is extremely sensitive to condensate temperature, the BT6-B discharges with minimal sub-cooling — typically within 2°C of steam saturation temperature at pressures below 2.5 bar g — meaning condensate is cleared almost as soon as it forms rather than being allowed to pool and cause water hammer or process contamination risk. The practical result is a trap with no moving parts subject to wear under normal operation, no measurable pressure drop across the open valve, and virtually no risk of steam-side contamination migrating into the clean steam network, which is precisely why it is specified wherever sterility and validated drainage performance are contractual requirements.
Engineering Design of the Spirax Sarco BT6-B
The Spirax Sarco BT6-B body and internals are machined entirely from 316L stainless steel, eliminating the crevices, threads, and dead-legs that can harbor bacteria or trap process fluid in conventional cast-iron or bronze traps. The angled 15° seat geometry ensures the body is fully self-draining in both horizontal and vertical orientations, with no low points where condensate or CIP/SIP fluid can stagnate between cycles. Connection is via a sanitary tri-clamp fitting, allowing rapid tool-free removal for inspection, capsule replacement, or orbital welding integration into new or existing hygienic pipework without introducing additional joints.
A high-capacity BT6-BH variant is available using the identical body platform for applications with elevated condensate loads or where CIP/SIP fluid volumes exceed the standard element’s discharge capacity, while a Food+ variant extends elastomer and finish options for food-contact compliance. Each trap ships individually packaged within a controlled clean environment, fitted with protective end caps and sealed in a protective bag to prevent particulate ingress prior to installation, and the design has been built in general accordance with ASME BPE and complies with the requirements of the Pressure Equipment Directive.
Key Features
The Spirax Sarco BT6-B combines hygienic construction with proven balanced pressure performance, and the following Spirax Sarco BT6-B features summarize why it is specified across validated clean steam systems in Oman and the GCC:
- Body and wetted parts manufactured entirely from 316L stainless steel for corrosion resistance and pharmaceutical-grade compliance.
- Crevice-free, self-draining design with a 15° angled seat that prevents condensate or CIP fluid retention between cycles.
- Surface finish of up to 0.4 µm (16 micro-inch Ra) available to meet demanding sterile process specifications.
- Balanced pressure thermostatic capsule discharges within approximately 2°C of saturation temperature for near-instant condensate removal.
- Sanitary tri-clamp connection enables rapid tool-free maintenance and simple integration into orbital-welded hygienic pipework.
- Rated for operating pressures up to 145 psi (10 bar g) and temperatures up to 351°F (177°C).
- Designed in general accordance with ASME BPE and compliant with the Pressure Equipment Directive.
- High-capacity BT6-BH variant available for elevated condensate loads and CIP/SIP fluid discharge duties.
Industrial Applications
The Spirax Sarco BT6-B is deployed wherever process heating systems demand validated, contamination-free condensate removal. In pharmaceutical and biotechnology manufacturing it is installed on sterile steam barriers, autoclaves, sterilizers, and bioreactor jacket drainage, where reliable trap performance is a documented part of the sterilization validation package. Food and beverage processors specify it on CIP/SIP skids, retort systems, and clean steam mains feeding product-contact equipment, while hospitals and institutional facilities across the region use it on central sterile supply department (CSSD) equipment and autoclave batteries that must meet strict infection-control standards.
With engineering support in Muscat, Seven Star LLC supplies the BT6-B to process heating, pharmaceutical, and district cooling-adjacent facilities throughout the Sultanate of Oman and the GCC, including the Sohar and Salalah industrial and free zones where pharmaceutical, food processing, and desalination-linked steam systems continue to expand. Facility engineers and procurement teams in Muscat and across the region turn to Seven Star LLC for genuine, warrantied BT6-B units supported by local technical guidance on trap selection, sizing, and CIP/SIP compatibility.
Technical Specifications
The table below summarizes the key technical specifications of the Spirax Sarco BT6-B balanced pressure thermostatic steam trap, confirming why the Spirax Sarco BT6-B remains the preferred choice for validated hygienic condensate removal.
| Parameter | Specification |
|---|---|
| Model | Spirax Sarco BT6-B |
| Trap Type | Balanced pressure thermostatic, sanitary |
| Body Material | 316L stainless steel, crevice-free design |
| Connection | Sanitary tri-clamp, 1/2 in. to 1.5 in. (38.1 mm) |
| Maximum Operating Pressure | 145 psi (10 bar g / 102 m H²O) |
| Maximum Operating Temperature | 351°F (177°C) |
| Surface Finish | Up to 0.4 µm (16 micro-inch Ra) |
| Discharge Characteristic | Sub-cooled, within approximately 2°C of saturation temperature |
| Variants | BT6-B standard, BT6-BH high capacity, BT6-B Food+ |
| Compliance | ASME BPE general accordance; Pressure Equipment Directive |
| Typical Applications | Sterile barriers, CIP/SIP, autoclaves, bioreactor jackets, clean steam mains |
Request a Quote for Spirax Sarco BT6-B Balanced Pressure Thermostatic Steam Trap
Facility engineers and procurement teams evaluating hygienic condensate removal for sterile process systems are invited to submit a formal RFQ for the Spirax Sarco BT6-B through Seven Star LLC. We supply Spirax Sarco products on request in Oman and the GCC, provide full technical datasheets on request, and connect buyers with our instrumentation division for sizing and CIP/SIP compatibility guidance. Contact us to source genuine, warrantied BT6-B steam traps for your Muscat, Sohar or Salalah facility.
Related Products
- Datasheet Spirax Sarco BT6-B Balanced Pressure Thermostatic Steam Trap Datasheet Download
Spirax Sarco products listed here
Three groups make up the listing:- Clean steam and hygienic equipment: the CSG-HS clean steam generator, STERI-TROL clean service control valve, SRV66 sanitary pressure reducing valve, SVL488 clean service safety valve and the BT6-B balanced pressure thermostatic steam trap
- Isolation valves: BSA and BSAT bellows sealed stop valves, the BSA3HP high pressure version, A3S and A3SS valves and the DBB3 double block and bleed valve
- Steam metering: ILVA variable area flowmeter and the TVA and TFA target flowmeters
Where Spirax Sarco steam equipment is used
Plant steam systems in refineries, chemical plants, laundries and food production use Spirax Sarco steam traps, stop valves and flowmeters for distribution and energy accounting. Clean steam products serve sterilizers, bioreactors, pharmaceutical water systems and food contact processes, where stainless steel wetted parts and documented surface finish are required. Requests from the GCC are often for a like-for-like trap or valve on an existing line.Ordering Spirax Sarco parts: what we need
Give the product type (for example BSA3T or BT6-B), nominal size, end connection and its standard (flanged PN or ASME class, screwed, butt weld or sanitary clamp), body material and the operating pressure and temperature. For steam traps add the condensate load and differential pressure. For Spirax Sarco flowmeters send line size, steam pressure and the flow range, plus the display or flow computer required. On clean steam items, state the surface finish and the material certificates you need. A nameplate photo helps where the type is not known.Browse Spirax Sarco products by category: Clean Steam, Globe Valve, Flowmeters.
