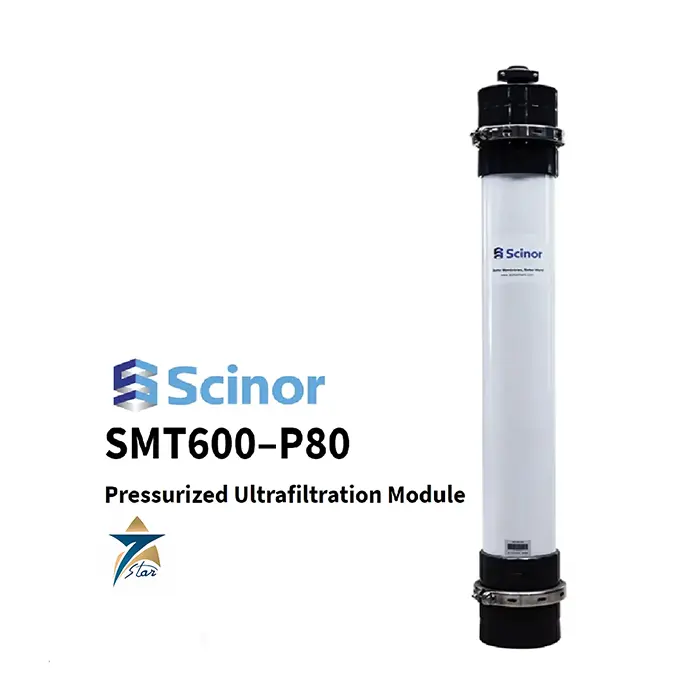

Scinor SMT600-P80 – Pressurized Ultrafiltration Module

Name: Scinor SMT600-P80 Pressurized Ultrafiltration Module
Brand: Scinor

Description

Overview

The Scinor SMT600-P80 is a pressurized hollow-fiber ultrafiltration module from the Scinor SMT600 series. It uses PVDF membranes produced by Thermally Induced Phase Separation (TIPS) and provides 80 m² of effective membrane area per module, which makes it suitable as a building block for large water treatment plants.

The module operates outside-in, in dead-end or cross-flow mode depending on the application, and is cleaned by backwash, air scour, maintenance clean and clean-in-place (CIP). Scinor states that the SMT600-P80 is available as a retrofit for installations built around other major membrane suppliers’ modules. It is used for potable water, wastewater reuse, desalination pretreatment and industrial water.

Key Features

TIPS PVDF hollow fibers with 0.1 µm nominal pore size
80 m² (861 ft²) effective area in one pressurized module
Outside-in flow configuration, dead-end or cross-flow operation
Sodium hypochlorite tolerance up to 5000 mg/L
Filtered water turbidity ≤0.1 NTU and SDI ≤3
Certified to NSF/ANSI 61 and NSF/ANSI 419

Technical Specifications

Parameter	Value
Part number	SMT600-P80
Fiber material	PVDF (TIPS), hollow fiber
Effective area	80 m² (861 ft²)
Nominal pore size	0.1 µm
Fiber ID / OD	0.7 mm / 1.3 mm
Dimensions	Ø225 mm x 2360 mm
Port size	DN50
Housing / head material	U-PVC / ABS
Potting material	Epoxy resin
Operating temperature	1–40 °C
pH range	1–11 continuous; 1–13 CIP
Max. NaClO	5000 mg/L
Backwash flux	50–120 L/m²h (30–70 gfd)
Air scour flow	5–12 Nm³/h per module
Max. feed pressure	0.4 MPa (60 psi)
Operating / max. TMP	0.02–0.15 MPa / 0.3 MPa
Max. backwash and air scour pressure	0.25 MPa (36 psi)
Filtered water quality	Turbidity ≤0.1 NTU; SDI ≤3; E. coli non-detect

Applications

Pretreatment ahead of seawater and brackish water reverse osmosis in desalination plants
Municipal drinking water treatment
Tertiary treatment and reuse of municipal and industrial wastewater
Process and utility water for oil & gas, power and petrochemical facilities
Replacement of modules in existing ultrafiltration trains

Why Seven Star LLC

Seven Star LLC supplies Scinor ultrafiltration modules to water treatment customers across Oman and the GCC. Before quoting a replacement, we confirm the module dimensions, port arrangement and operating conditions of your existing rack so that the supplied modules fit the installation.

Request a Quote for Scinor SMT600-P80 – Pressurized Ultrafiltration Module

Send your request through our inquiry form with the part number, number of modules, feed water type and whether the modules replace an existing brand in a current rack. Seven Star LLC will confirm the configuration and return a quotation for delivery in Oman and the GCC.

How the SMT600-P80 Ultrafiltration Module Works

In an outside-in pressurized module, feed water fills the shell side around thousands of hollow fibers. The applied pressure drives water through the fiber wall into the fiber lumen, while particles, colloids, bacteria and most suspended solids larger than the membrane pores are retained on the outer surface. Filtrate is collected from the fiber lumens at the module head. In dead-end mode all feed water passes through the membrane and the retained solids are removed periodically; in cross-flow mode part of the feed is circulated along the fiber surface to limit the build-up of solids, which suits feed water with a higher solids load.

Over each filtration cycle the solids layer increases the transmembrane pressure (TMP). The cycle ends with a backwash, in which filtrate is pushed back through the fibers from the inside, often combined with air scour on the shell side to shake loose deposits. Maintenance cleans with a low concentration of chemical, and full clean-in-place with acid and alkaline or oxidising solutions, restore permeability when backwashing alone is no longer enough. The wide pH and hypochlorite tolerance of TIPS PVDF fibers is what makes these chemical cleans possible without damaging the membrane.

SMT600-P80 Selection & Design Notes

Feed water quality: turbidity, suspended solids, organic load, oil and grease and temperature determine the design flux and cleaning frequency. Seawater intakes affected by algal blooms need a more conservative design.
Pre-screening: a fine strainer upstream of the rack protects the fibers from abrasive or sharp particles.
Number of modules: plant capacity divided by the design flux and the 80 m² area per module gives the active module count; add allowance for backwash downtime and for one train out of service during cleaning.
Retrofit: when replacing modules from another supplier, compare overall length, port positions and connection type with the existing rack before ordering.
Integrity: plan a regular pressure-decay or similar integrity test to detect broken fibers, especially where the filtrate feeds reverse osmosis or drinking water.

Installation & Maintenance

New modules are usually shipped wet with a preservation solution; flush them to drain before putting the filtrate into service, and keep the fibers wet at all times once they are installed. Avoid water hammer and pressure surges when starting pumps and opening valves, and keep feed, backwash and air pressures inside the limits in the specification table. Trend TMP, flux and filtrate turbidity: a steady rise in TMP after cleaning points to irreversible fouling or an undersized pretreatment step.

Typical Applications in Oman & the GCC

Ultrafiltration is widely used ahead of seawater reverse osmosis in the region, where it gives a more stable RO feed than conventional media filtration during periods of poor intake water. It is also used for treated sewage effluent reuse, produced water polishing and industrial process water. Seven Star LLC supplies the Scinor SMT600-P80 across Oman and the GCC; send your feed water analysis and rack drawing and our team can help confirm the module configuration.

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Scinor is a Chinese manufacturer of membrane filtration products, established in 2002 as Beijing Scinor Membrane Technology. It specialises in PVDF hollow fibre ultrafiltration membranes made by thermally induced phase separation (TIPS). Its SMT600 modules are used for drinking water, wastewater reuse and membrane bioreactors.

Seven Star LLC lists Scinor SMT600 ultrafiltration modules in both pressurized and submerged form and supplies them by exact module code to water treatment plants and industrial users in Oman and neighboring countries.

Scinor company profile

Founded	2002, Beijing, China
Technology	TIPS PVDF hollow fibre membranes
Pore size	About 0.1 µm (UF)
Applications	Drinking water, wastewater reuse, MBR
Product families	SMT600 pressurised UF modules, SMT600 submerged UF modules, SMT600 MBR modules

Scinor SMT600 modules listed here

Several module types are on this page, and three are described here. The SMT600-P40 and SMT600-P80 are pressurized ultrafiltration modules that sit in a rack and are fed by a pump. The SMT600-S60 is a submerged module that hangs in an open tank and works under suction. The letter after SMT600 tells you the configuration, so P and S modules are not interchangeable on the same skid.

Where Scinor membranes are used

The manufacturer serves industrial, desalination, municipal and wastewater treatment applications. Typical duties are pretreatment ahead of reverse osmosis, surface water clarification and wastewater reuse, which are common needs across the GCC.

Scinor products we list

Family	Examples
Filtration Elements	SMT600-BR30 Membrane Bioreactor (MBR) Mo…, SMT600-P40 Pressurized Ultrafiltration M…, SMT600-P80, SMT600-S60 Submerged Ultrafiltration Mod…

Ordering Scinor modules: what we need

Send the full module code from the label, the number of modules per rack or cassette, the feed water type and whether the request is a like-for-like replacement or a new train. A photo of the existing end caps and connections helps us confirm the fit.

Facts checked against company registry data and Scinor product listings, October 2026.

Browse Scinor products by category: Filtration Elements.

FAQ

Questions about the Scinor SMT600-P80

Answers from our engineering team on installation, compatibility and integration.

01What is a pressurized ultrafiltration module?

A pressurized ultrafiltration module is a membrane filter unit that uses pressure to drive water through a semi-permeable membrane, separating contaminants and suspended solids while producing high-quality filtrate.

02What makes Scinor’s PVDF membranes special?

Scinor uses Thermally Induced Phase Separation (TIPS) technology to fabricate PVDF hollow fiber membranes, resulting in high permeability, strong mechanical properties, and exceptional chemical resistance.

03Can SMT600-P80 operate with existing filtration systems?

Yes — SMT600 modules are designed to retrofit and replace major competitors’ membrane elements without extensive system changes, offering flexibility and cost savings.

04How often does the module need cleaning?

Cleaning frequency depends on feed water quality and operating conditions; common maintenance includes periodic backwashing, maintenance cleaning, and CIP for sustained performance.

05How do I request a quotation for Scinor SMT600-P80 – Pressurized Ultrafiltration Module?

Send the model number, required quantity and delivery location through the quote request form or by email to Seven Star LLC. The sales team replies with availability, lead time and commercial terms for your Oman or GCC project.
