Brand: Camfil
Camfil Basic-Flo ePM10 70% Economy Bag Filter 592x592x600-6
Description
An economy bag filter for comfort air conditioning and prefilter duties

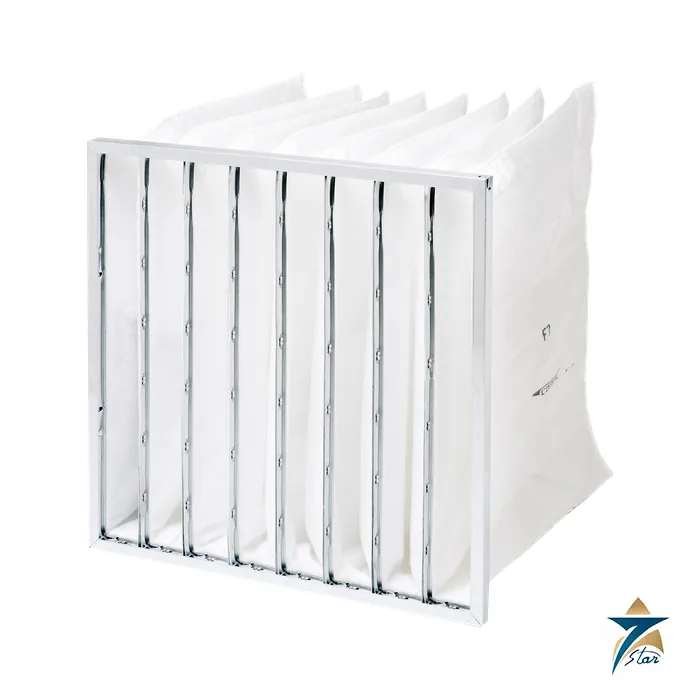

The Camfil Basic-Flo 1070 592x592x600-6 is the economy version of the Camfil pocket filter range: six conical synthetic bags in a galvanised steel header frame, 592 x 592 mm front and 600 mm deep. Classified M6 under EN 779 and ePM10 70% under ISO 16890, it is intended by Camfil for comfort air conditioning applications and as a prefilter.
For a facility manager the attraction is cost per airflow: the unit carries 3,400 m3/h at 60 Pa initial pressure drop using 4.5 m2 of media, while weighing 2.4 kg. It is a sensible first filter ahead of ePM1 bag or box filters in offices, retail and residential towers, where dust from sand and construction is the main load.
Advantages printed in the datasheet
- Media area optimised through conical filter bags.
- Resilient synthetic filter media.
- Robust metal header frame, galvanised steel.
- Positioned as the economy version of the bag filter range.
Technical specification
| Parameter | Value |
|---|---|
| Type code | 1070 592x592x600-6 |
| EN 779 class / ISO 16890 | M6 / ePM10 70% |
| Dimensions W x H x D | 592 x 592 x 600 mm (EN 15805 front dimensions) |
| Nominal airflow | 3,400 m3/h |
| Initial pressure drop | 60 Pa |
| Bags | 6 |
| Media area | 4.5 m2 |
| Weight | 2.4 kg |
| Energy | More than 1,300 kWh/year, class E |
| ePM1 / ePM1 min | 30% / 8% |
| ePM2.5 / ePM2.5 min | 40% / 18% |
| ePM10 | 71% |
| Frame / media | Galvanised steel / synthetic |
| Max airflow | 1.25 x nominal |
| Max temperature | 70 degC |
| Relative humidity | Max 90% |
| Recommended final pressure drop | Initial + 100 Pa or initial x 3 if lower (EN 13053) |
Reading the figures
The ePM1 min value of 8% against 30% initial shows that this class depends strongly on its charge: the minimum efficiency after conditioning is the number to design to if the filter must meet a particle target. Without that, ePM10 71% is the dependable figure. The recommended final pressure drop is 160 Pa (60 + 100, derived).
Humidity tolerance is lower than the Cam-Flo or Hi-Cap sheets: this filter is rated to 90 percent relative humidity, not 100 percent. In humid coastal sites keep it on the downstream side of any droplet separation.
Other sizes in the Basic-Flo 1070 class
| Type | Airflow | Initial pressure drop | Media area |
|---|---|---|---|
| 1070 592x592x600-6 | 3,400 m3/h | 60 Pa | 4.5 m2 |
| 1070 592x592x520-6 | 3,400 m3/h | 65 Pa | 3.7 m2 |
| 1070 592x592x370-6 | 3,400 m3/h | 85 Pa | 2.6 m2 |
| 1070 490x592x600-5 | 2,800 m3/h | 60 Pa | 3.6 m2 |
| 1070 287x592x600-3 | 1,700 m3/h | 60 Pa | 2.3 m2 |
| 1070 287x287x600-3 | 800 m3/h | 60 Pa | 1.1 m2 |
The same sheet also lists 1050 (M5, ePM10 50%) at 50 Pa and 2570 (F7, ePM2.5 70%) at 120 Pa in the 600 mm depth. Pick the 1070 for ePM10 70% with moderate resistance.
Installation
The datasheet states that front and side access housings and frames are available, and that front dimensions follow EN 15805. Measure the existing frame for depth before replacing a 520 or 370 mm filter with a 600 mm one. Compare the final pressure drop against the fan capacity of the AHU.
Comparing 1070 with the other classes on the sheet
Within the 600 mm depth the datasheet gives three classes at 3,400 m3/h: 1050 (M5, ePM10 50%) at 50 Pa and 929 kWh per year (class D), 1070 (M6, ePM10 70%) at 60 Pa and more than 1,300 kWh (class E), and 2570 (F7, ePM2.5 70%) at 120 Pa with 1,937 kWh (class D, 6 bags) or 110 Pa with 1,790 kWh (8 bags). The 1070 is therefore a mid-step: 10 Pa more than the 1050 for a 17 point gain in ePM10 efficiency (71% against 54%, as printed).
Order the exact type string 1070 592x592x600-6 and state the holding-frame arrangement. Energy figures follow Eurovent Guideline 4/21-2019 and class RS 4/C/001-2019. If your tender calls out an energy class, note that this 1070 is rated E and that the 2570 with 8 bags achieves D at the same footprint.
Specifying and receiving the filters
In tender documents, write the filter as Camfil Basic-Flo, type 1070, 592x592x600-6, ISO 16890 ePM10 70%. On delivery check the carton label against the type string and verify the pocket count and depth, since five- and six-bag versions of the same class share a name but differ in size.
Keep the filter dry: its relative humidity limit of 90 percent is below the 100 percent of other Camfil types. Mark the install date on the frame to track change-out intervals against the 160 Pa final pressure drop.
Typical use
Typical roles, in line with the printed application, are comfort air-conditioning AHUs and protection ahead of finer stages. The sheet does not list a hospital or cleanroom use for this type. See other filtration elements on the site.
Fitting and replacement notes
The Basic-Flo is an economy filter, so it is most useful as a prefilter ahead of finer stages or in comfort systems where a lower class is acceptable. Install it with the bags hanging vertically and a tight frame seal, monitor the pressure drop, and replace it on the pressure-drop limit given in the data sheet or the project maintenance plan rather than on appearance alone.
Information needed for a quotation
Send the full filter code, the quantity, the housing or frame type it must fit, the delivery location in Oman or the GCC and any prefilters or accessories, so that the complete filter set can be quoted together.
Documents and supply information
The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Filter class, airflow, pressure drop and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.
Frequently asked questions
What class is the Basic-Flo 1070? M6 under EN 779 and ePM10 70% under ISO 16890.
What is the airflow and pressure drop? 3,400 m3/h with 60 Pa initial pressure drop.
What humidity can it tolerate? Up to 90 percent relative humidity per the datasheet.
How heavy is it? 2.4 kg.
Is Seven Star LLC the manufacturer? No. Seven Star LLC is an independent supplier in Muscat; confirm the exact type, size and class with the datasheet before ordering.
