Brand: 3M

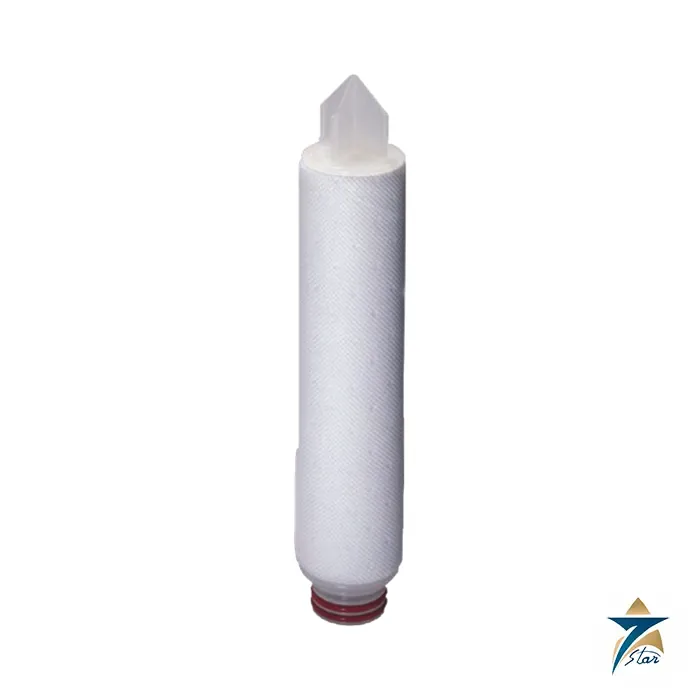

3M Betapure NT-T Series Depth Filter Cartridge
Description
Absolute-rated polypropylene depth filter with long service life
The 3M Betapure NT-T series is an all-polypropylene depth filter cartridge from 3M’s Separation and Purification Sciences Division. It is built from three media sections, each made of several layers of polypropylene filter media interleaved with fluid distribution netting. Flow channels in the outer and middle sections pass part of the fluid directly to deeper layers, so that contaminant is spread through the full depth of the cartridge instead of blinding the outer surface. The inner third has no flow channels and acts as the final qualifying section that sets the absolute rating.
3M states that this design gives up to three times the dirt holding capacity of competing filters and a consistent removal efficiency as differential pressure rises.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | 3M (Separation and Purification Sciences Division) |
| Product | Betapure NT-T Series depth filter cartridges and capsules |
| Construction | All polypropylene: media, distribution netting and core |
| Absolute ratings | 0.5, 1, 2, 3, 5, 10, 20, 30, 40, 50, 70 µm (grades T005 to T700) |
| Rating definition | Initial beta ratio 1000 (99.9 % efficiency), 3M test per ASTM STP 975 procedures |
| Cartridge lengths | 5, 9-3/4, 10, 19-1/2, 20, 29-1/4, 30, 39, 40 in. |
| End modifications | 222 or 226 O-ring with spear, 222 O-ring with flat cap, DOE, SOE with spring |
| Seal materials | Silicone, fluorocarbon, EPR, nitrile, PTFE-encapsulated fluorocarbon, polyethylene |
| Specific pressure drop per 10 in. | T005: 81.9 mbar/lpm/cP; T050: 5.9; T200: 1.2; T700: 0.45 mbar/lpm/cP |
| Capsules | 2-1/2 in. and 5 in. lengths, 1-1/2 in. sanitary flange, hose barb or 1/4 in. MNPT; not steam sterilisable |
| Compliance | Cartridges: FDA 21 CFR 174.5, EC 1935/2004; WQA certified to NSF/ANSI/CAN 61 for material requirements |
Sizing a housing with the pressure drop table
3M gives a specific clean pressure drop for each grade per 10 in. equivalent cartridge. The clean differential pressure equals total flow times viscosity in centipoise times the table value, divided by the number of 10 in. equivalent lengths in the housing. For example, 100 l/min of water through T050 grade in a housing holding three 30 in. cartridges (nine equivalents) gives roughly 100 x 1 x 5.9 / 9, about 66 mbar clean. Starting with a low clean pressure drop leaves more of the allowable differential for dirt loading, which extends change-out intervals.
Applications in oil, gas and process plants
3M lists chemical and hydrocarbon processing uses such as acids, sodium hypochlorite, polyolefin manufacture, amine sweetening and water flood, alongside pre-RO filtration, plating baths, coatings, process water and ground water remediation. The all-polypropylene build gives broad chemical compatibility; the gasket or O-ring material should still be checked against the fluid. Cartridges must be installed in a housing that matches the selected end modification.
Documents and quotation
The attached 3M data sheet includes the rating table, flow and pressure drop data, capsule dimensions and the full ordering guide. Not every combination is available, so send the full part number or the micron rating, length, end modification, seal material and housing type for a quotation. More elements are listed under Filtration Elements.
Datasheets & Documents
- Datasheet 3M Betapure NT-T Series filter cartridges and capsules data sheet (70020187202 REV 0221) Download
Reviews (0)
About brand
Few names turn up on as many maintenance requisitions as 3M: the tape in the electrician's pouch, the respirator at the paint booth, the earmuffs at the compressor house. Seven Star LLC supplies 3M industrial and safety products to buyers in Oman, and the items listed here cover Peltor hearing protection, 6000 series reusable respirators, Speedglas welding helmets, Scotch electrical tape and Liqui-Cel membrane contactors.
3M product lines listed here
The listing follows five separate 3M lines, each with its own part numbering. Peltor X Series earmuffs are graded by attenuation, and the X5A is the over-the-head model with an NRR of 31 dB. The 6000 series half facepiece comes in three sizes (6100 small, 6200 medium, 6300 large) and takes 3M bayonet cartridges and filters, which are ordered separately. Speedglas 9100 is the auto-darkening welding helmet family, supplied with different filter sizes and with or without side windows. Scotch Super 33+ is the vinyl electrical tape most specifications call for by name. Liqui-Cel membrane contactors, such as the EXF-4x13, add or remove dissolved gases in liquid streams.
Where 3M products are used
Hearing, respiratory and welding protection from 3M is specified by HSE departments in refineries, fabrication yards, power plants and construction sites across the GCC. Super 33+ tape is used for primary insulation and jacketing on low-voltage splices and for phase marking in panels. Liqui-Cel contactors sit in water treatment and process skids where oxygen or carbon dioxide has to be stripped from water, for example ahead of boilers or in ultrapure water loops.
Ordering 3M items: what we need
A 3M request is simple to process when the product number is complete. Please send:
- The 3M product number or model (for example X5A, 6200, Super 33+) and the quantity per pack or case
- For respirators: facepiece size and the cartridge or filter type for the contaminant
- For Speedglas: filter version, side windows or not, and any powered air unit it must fit
- For Liqui-Cel: full contactor code, membrane type, housing material and connections
We check the code against 3M documentation and provide the manufacturer's datasheet on request.
Browse 3M products by category: Filtration Systems.
Related products
Frequently Asked Questions
What micron ratings are available for 3M Betapure NT-T?
Grades T005 to T700 cover absolute ratings from 0.5 to 70 micron.
How does 3M define the absolute rating?
As the particle size at which the initial beta ratio is 1000, which equals 99.9 % removal efficiency, using a 3M test based on ASTM STP 975.
What is the cartridge made of?
It is an all-polypropylene depth filter with layered polypropylene media, fluid distribution netting and a rigid polypropylene core.
Which cartridge lengths can be ordered?
The ordering guide lists 5, 9-3/4, 10, 19-1/2, 20, 29-1/4, 30, 39 and 40 in. lengths.
Is Betapure NT-T suitable for food and beverage use?
3M states that the cartridges, but not the capsules, comply with FDA 21 CFR 174.5 and Regulation (EC) 1935/2004.
