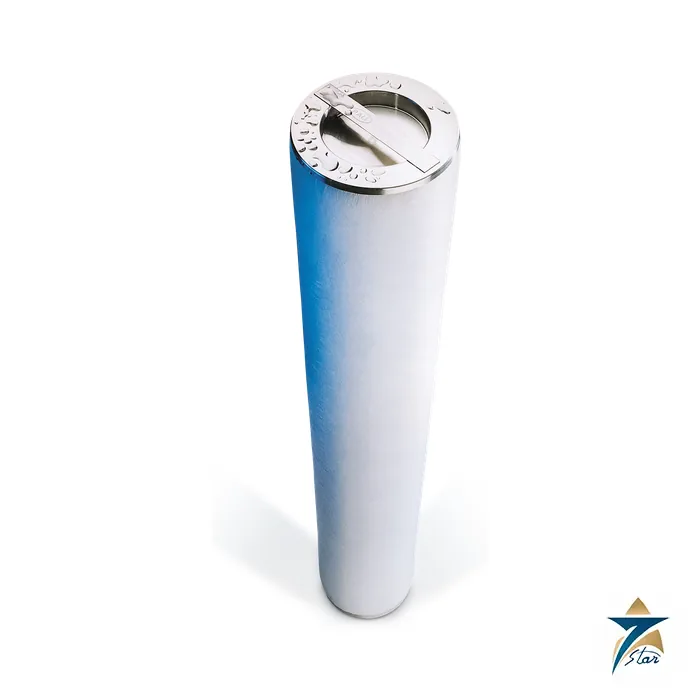

Pall SepraSol Plus CS604LGH Liquid/Gas Coalescer Cartridge

Name: Pall SepraSol Plus CS604LGH Coalescer – Datasheet & Quote
Brand: Pall
SKU: CS604LGH

Description

A high-capacity liquid/gas coalescer cartridge for wet gas streams

The Pall SepraSol Plus CS604LGH is a liquid/gas coalescer cartridge that removes liquids and solids from high-flow gas streams carrying high liquid loads. Pall states that the SepraSol Plus media can process several times more liquid per unit area than conventional media, which often removes the need for upstream bulk separation equipment such as mist eliminators and vane separators. The media is supplied in a large 6-inch (152.4 mm) diameter, 40-inch (1016 mm) long cartridge with 2.6 square metres of surface area.

Pall lists applications that match gas processing and power plants: protecting compressors and turbines, removing lube oil, water and compressor wear products from effluent gas, removing liquid aerosols upstream of amine sweetening and dehydration units to prevent foaming, protecting desiccant and catalyst beds, cleaning dirty fuel gas for low-NOx burners and fuel injection nozzles, and controlling injection well plugging during gas flooding.

Technical specifications

Parameter	Specification
Cartridge	SepraSol Plus liquid/gas coalescer, resin-bonded glass fibre media pack
Outer diameter	152.4 mm (6 in)
Length	1016 mm (40 in)
Surface area	2.6 m2 (28 sq ft)
Aerosol particulate removal rating	99.99 percent at 0.3 micron and above (DEHS efficiency, EN 779:2012 test)
Liquid removal ratings	0.01 ppm downstream liquids (LASE); 1 ppb downstream liquids (CAGI); 99.999 percent efficient at 0.3 micron (DOP)
Temperature rating	82 degC (180 degF); 65 degC (150 degF) with water
Clean and saturated pressure drop	Sized to the specification
Media treatment	Patented oleophobic/hydrophobic treatment for faster drainage, tolerance of liquid slugs and low saturated pressure drop
Construction	Resin-bonded glass fibre media in a pack, polymeric outer drainage layer, stainless steel metal support

Part numbers

Gasket	Single open end, standard	Single open end, amine/ammonia compatible	Double open end, standard	Double open end, amine/ammonia compatible
Nitrile gasket	CS604LGH13	CS604LGBH13	CS604LGDH13	CS604LGBDH13
Viton A gasket	CS604LGH	CS604LGBH	CS604LGDH	CS604LGBDH
PTFE encapsulated Viton gasket	CS604LGH1	CS604LGBH1	–	–

The page is listed under the Viton A gasket, single open end, standard part number CS604LGH. Other part numbers in the table above are the siblings shown in the same Pall datasheet.

Selecting and sizing the coalescer

Pall notes that coalescers often fail in the field because the liquid influent concentration is underestimated: the more liquid is charged to the coalescer, the more media area is needed, and overloading causes re-entrainment and downstream problems. Pall offers a proprietary sizing program for the inlet gas stream. Its comparison for natural gas with liquid condensate (4.25 MMSCMD, 51.7 barg) shows the treated SepraSol Plus pack needing far fewer cartridges and a smaller vessel than an untreated conventional pack as liquid loading rises from 50 to 2000 ppm by weight. Confirm gas flow, pressure, liquid loading, the vessel or housing, gasket compatibility and, for amine service, the amine-compatible versions. Related Pall elements on this site include the Ultipleat High Flow filter cartridge, and more are listed under filtration elements.

Documents and quotation

The attached Pall data sheet (FCSEPRASENd, March 2026) includes the part number table and performance data. Send the part number, quantity and the application conditions with your enquiry.

Datasheets & Documents

Datasheet Pall SepraSol Plus liquid/gas coalescers data sheet FCSEPRASENd (EN) Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Filtration and separation of process fluids is the whole of Pall's business. The company was founded in 1946, and in oil and gas, refining, chemical and power plants its elements sit ahead of compressors, contactors, burners and injection wells. Seven Star LLC lists Pall Ultipleat High Flow cartridges and housings, Profile Coreless gas filter elements and Medallion coalescer elements, and supplies them to plants in Oman and the GCC as an independent supplier.

Pall filter families listed here

Ultipleat High Flow is a large-diameter, coreless pleated cartridge built to carry a high flow per element, so a housing needs far fewer cartridges than a conventional design. The matching Ultipleat High Flow housings are the vessels these cartridges seal into. Profile Coreless elements are depth filters that slide over a reusable stainless steel core, which leaves only the filter media to dispose of at change-out. Medallion elements are liquid/liquid coalescers, cataloged by Pall as the Medallion Series Liquid/Liquid Coalescers: they merge a fine dispersion of one liquid in another, such as water in a hydrocarbon, into drops large enough to settle out. Pall's Medallion HP line is a separate family of liquid/gas coalescers.

Ordering Pall filter elements: what we need

Send the full Pall part number from the element end cap or the housing nameplate. If it cannot be read, give the housing model, element length and diameter, micron rating, seal material, the fluid and the operating temperature.
