MP Filtri FMP High Pressure In-Line Filter, 320 bar
Description
A high pressure filter to protect sensitive components
The MP Filtri FMP series is a range of in-line pressure filters for hydraulic circuits up to 32 MPa (320 bar) and flows up to 500 l/min. It is installed in the delivery line, directly after the pump or ahead of a servo valve, proportional valve or other component that cannot tolerate dirt, and it connects to the system through female threaded or flanged ports up to 1 1/2 inch. The housing has a phosphatized cast iron head and a phosphatized steel bowl, and MP Filtri states a test pressure of 48 MPa and a minimum burst pressure of 96 MPa.

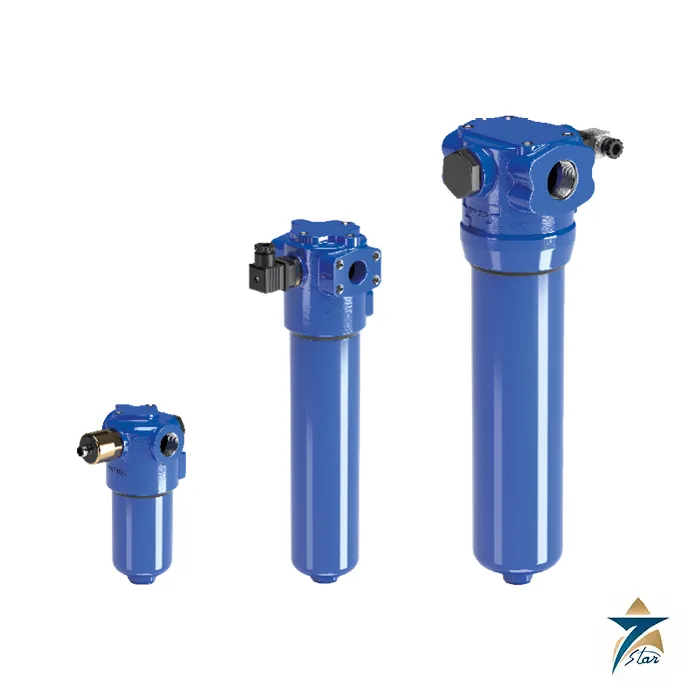

Three body sizes, FMP065, FMP135 and FMP320, cover the flow range. Optional features include a bypass valve, a check valve against reverse flow (FMP320), and visual, electrical or electronic differential clogging indicators.
Technical specifications
| Parameter | Specification |
|---|---|
| Series and sizes | FMP065, FMP135, FMP320; vertical mounting, in-line inlet and outlet |
| Maximum working pressure | 32 MPa (320 bar) |
| Flow rate | Up to 500 l/min (reference viscosity 30 mm2/s, density 0.86 kg/dm3, 1.5 bar housing drop) |
| Test and burst pressure | Test 48 MPa (480 bar); minimum burst 96 MPa (960 bar) |
| Pulse fatigue | 1 000 000 cycles from 0 to 32 MPa (320 bar) |
| Housing materials | Head phosphatized cast iron; bowl phosphatized steel; bypass valve brass; check valve steel; reverse-flow part steel (FMP320 only) |
| Temperature | -25 to +110 degC |
| Bypass valve | Opening pressure 0.6 MPa (6 bar) +/-10 percent; other settings on request |
| Seals | NBR (series A) standard; FPM (series V) optional |
| Connections | Female threaded up to 1 1/2 inch (G, NPT and related codes) and flanged up to 1 1/2 inch |
| Valve styles | S and E without bypass; B and C with 6 bar bypass; T with check valve, no bypass; D with check valve and bypass |
| Filter media | Inorganic microfiber A03, A06, A10, A16, A25 (3, 6, 10, 16, 25 micron); wire mesh M25 (25 micron) |
| Element design | N low collapse; H high collapse (210 bar); R and S with external support |
| Flow direction through element | From outside to inside |
| Clogging indicators | Visual, electrical, combined and electronic (IO-Link, DTA) differential pressure indicators |
Selecting a style and element
The ordering code is built as series and size, media, element design, seals, valve style and connection, for example FMP065 A3 S G1 T M25 P01 in the datasheet example. Choose the valve style first. A bypass (styles B, C and D) protects the element from a high pressure drop when it clogs, but unfiltered oil then passes; a filter without bypass (styles S, E and T) needs a high collapse element (H or S) so the element withstands the full differential, which suits servo and proportional protection where unfiltered oil is not acceptable.
Element rating follows the cleanliness your components need. Fine microfiber media (3 to 10 micron) serve servo valves; 16 and 25 micron serve general industrial circuits; the 25 micron wire mesh element is cleanable. MP Filtri recommends its selection software or a sales check for a given pressure drop or viscosity.
What to confirm before ordering
State the size and flow, working pressure, media and rating, bypass or check valve need, port type and size, seal material and the indicator you want. Mounting is vertical. Other housings in this group are listed under filter housings.
Documents and quotation
The attached MP Filtri FMP series catalogue chapter (high pressure filters, from the MP Filtri website) holds the dimensions, flow tables, pressure-drop curves, ordering codes, element data and indicator options. Send the size, media, style, connection and quantity for a quotation.
Datasheets & Documents
- Datasheet MP Filtri FMP series catalogue chapter, high pressure filters Download
Reviews (0)
About brand
MP Filtri is a family-owned Italian company, founded in 1964 and headquartered in Pessano con Bornago, in the Milan area, that designs hydraulic filters, contamination monitoring systems and power transmission components. Its filters protect pumps, valves and reservoirs in industrial and mobile hydraulic systems.
MP Filtri filter ranges
The catalogue covers high pressure in-line filters, low and medium pressure filters, return and suction filters, spin-on filters, stainless steel and ATEX versions, and high capacity duplex filters. Many housings use the MYclean element interface, which only accepts matching original elements, and clogging indicators, water-removal elements and tank accessories complete the range. Typical duties are pump protection, reservoir return lines, lubrication skids and off-line cleaning of large oil volumes.
Supply from Seven Star LLC
Seven Star LLC, an independent supplier in Muscat, sources MP Filtri housings and elements against the catalogue ordering code and provides the manufacturer documentation with each quotation. Send the model, media, micron rating, connection and indicator.
