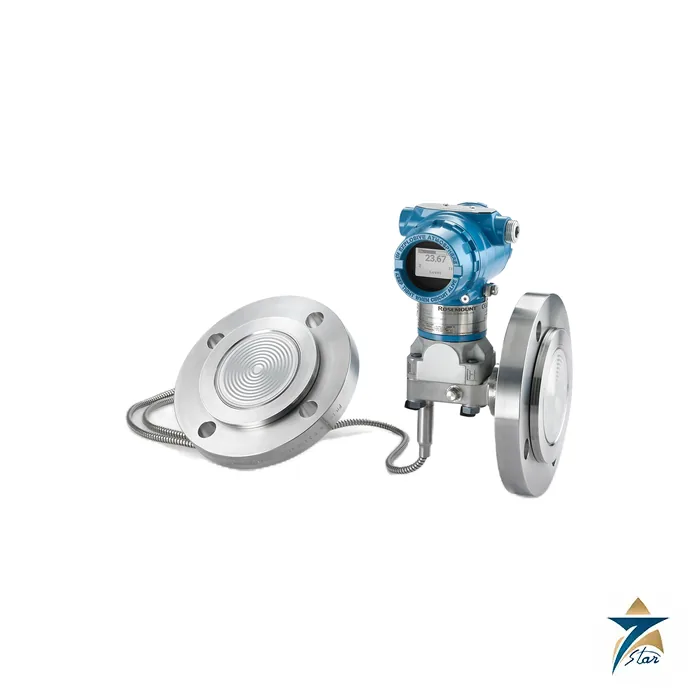

Rosemount 3051L Liquid Level Transmitter
Overview
The Rosemount 3051L is Emerson’s flanged differential pressure level transmitter. The official data sheet explains that it combines the performance and capabilities of Rosemount 3051 transmitters with the reliability and quality of a direct mount seal in one model number, and that it offers a variety of process connections, configurations and fill fluid types to meet a breadth of level applications. The all-welded seal system removes the capillary joints, thread leaks and field assembly of a conventional wet-leg installation, making the 3051L a preferred option for tanks, vessels and columns with demanding fluids.
As a supplier of Rosemount products in Oman and the GCC, Seven Star LLC supplies the Rosemount 3051L Liquid Level Transmitter with the Rosemount 3051L datasheet and regional engineering support. Operators in Muscat, Sohar and Salalah can obtain the transmitter configured for the exact flange, extension and fill fluid in a single order.
Level Measurement Principle
The Rosemount 3051L measures hydrostatic head. A flanged seal mounted on the vessel nozzle transmits the pressure of the liquid column through a fill fluid to the 3051 sensor module. On an open tank the low side vents to atmosphere, while on a closed or pressurized vessel the low side connects to the vapor space or to a second seal through capillary. The sensor converts the differential pressure to a digital value, and the transmitter configurator can express it as level or volume. A built-in level configurator method guides the engineer through the setup, and it is available with options M6, BLE, D1, DA1, T9 or RK.
The fill fluid defines the temperature window of the seal. The data sheet lists silicone 200 from –45 to 205 °C, silicone 704 from 0 to 205 °C, SYLTHERM XLT from –75 to 145 °C, inert halocarbon from –45 to 160 °C, glycerin and water from –15 to 95 °C, Neobee M-20 from –15 to 205 °C and propylene glycol and water from –15 to 95 °C. Vacuum-grade silicone fills are also offered. Reference accuracy is 0.075 percent of span on ranges 2 to 4, and the QZ option quantifies total performance under real operating conditions.
Engineering Design of the Rosemount 3051L
The Rosemount 3051L pressure ranges are limited to three codes, range 2 at –250 to 250 inH2O, range 3 at –1000 to 1000 inH2O and range 4 at –300 to 300 psi, because the seal supplies the head rather than the sensor range. The high side flange is 2, 3 or 4 inch ASME B16.5 in Class 150, 300 or 600, or EN 1092-1 DN 50, DN 80 or DN 100, with JIS 10K to 40K options. Materials are carbon steel or 316 stainless steel flanges, with a 316L stainless steel, alloy C-276 or tantalum diaphragm. Extension lengths of 2, 4 and 6 inches (50, 100 and 150 mm) move the diaphragm clear of insulation or into the process.
The Rosemount 3051L low side can be a gauge connection or a differential flange adapter. A 2-inch Class 150 flush transmitter weighs 12.5 lb (5.7 kg) without options. Overpressure is limited to the flange rating or the sensor rating, whichever is lower, and flange ratings follow ASME B16.5 for Class 150, 300 and 600. The device offers 4 to 20 mA HART, low-power 1 to 5 Vdc HART, FOUNDATION Fieldbus, PROFIBUS PA and WirelessHART outputs, a back-lit graphical display, Bluetooth, the Loop Integrity diagnostic and safety certification options.
Key Features
The Rosemount 3051L brings integrated seals and transmitter engineering together. The features below are taken from the official data sheet.
- Integrates the transmitter and direct mount seal in one model number, so the system is assembled, filled and calibrated at the factory.
- Offers flush and extended diaphragms with 2, 3 and 4 inch flanges and a choice of 316L stainless steel, alloy C-276 or tantalum wetted parts.
- Supports Tuned-System assemblies with a direct mount high side and capillary low side to cut installation cost and improve response.
- Quantifies total system performance with the QZ option before the unit is purchased.
- Provides a built-in level configurator that sets up level and volume measurement through a guided method.
- Offers Bluetooth configuration, a back-lit graphical display and the Loop Integrity diagnostic.
- Offers a choice of fill fluids including SYLTHERM XLT for cold service and silicone 704 for hot service.
- Includes safety certification and proof testing options for SIL applications.
Industrial Applications
The Rosemount 3051L is used wherever a standard impulse line would plug, freeze, leak or require heat tracing. Typical Rosemount 3051L service includes crude and slop tanks, distillation columns and separators, boiler drums, chemical reactors, viscous or corrosive liquids and high temperature services that need a diaphragm seal. Because the seal is flush or extended at the nozzle, the transmitter can also be applied to slurries and fluids with suspended solids. In Oman these tasks are common in refineries, gas treatment, petrochemical units and storage terminals near Sohar and Salalah.
In Oman and the GCC, Seven Star LLC supplies the Rosemount 3051L to operators, EPC contractors and maintenance teams across Oman and the wider GCC. For other level technologies, compare the Rosemount 3051SAL liquid level transmitter, the Rosemount 5300 level transmitter and the general-purpose Rosemount 3051 pressure transmitter.
Technical Specifications
The table lists published Rosemount 3051L specifications from the Emerson DP level product data sheet dated March 2026.
| Parameter | Specification |
|---|---|
| Model | Rosemount 3051L Liquid Level Transmitter |
| Pressure ranges | Range 2: –250 to 250 inH2O; range 3: –1000 to 1000 inH2O; range 4: –300 to 300 psi |
| High side connection | 2, 3 and 4 inch ASME B16.5 Class 150, 300, 600; DN 50, DN 80, DN 100 EN 1092-1; JIS |
| Extension lengths | Flush; 2, 4 or 6 inch (50, 100, 150 mm) on 3 and 4 inch sizes |
| Diaphragm materials | 316L stainless steel, alloy C-276, tantalum |
| Reference accuracy | ±0.075% of span (ranges 2 to 4) |
| Output protocols | 4–20 mA HART, 1–5 Vdc HART, FOUNDATION Fieldbus, PROFIBUS PA, WirelessHART |
| Fill fluids | Silicone 200 and 704, SYLTHERM XLT, inert, glycerin and water, Neobee M-20, propylene glycol and water |
| Weight (2-inch Class 150, flush) | 12.5 lb (5.7 kg) without options |
| Overpressure | Flange rating or sensor rating, whichever is lower |
| Options | QZ, Tuned-System (S1), DA1, BLE, M6 graphical display |
Request a Quote for Rosemount 3051L
Request a formal quotation for the Rosemount 3051L Liquid Level Transmitter from Seven Star LLC. Provide the vessel nozzle size and rating, process fluid and temperature, fill fluid preference, output protocol and hazardous area approval, and our instrumentation division will return a valid model code with lead time. We can provide the Rosemount 3051L datasheet and confirm current availability and lead time. In Oman and the GCC, Seven Star LLC supplies level transmitters on request with local technical support for demanding tank and vessel measurements.
- Datasheet Emerson Rosemount DP Level Transmitters and 1199 Diaphragm Seal Systems Product Data Sheet 00813-0100-4016, Rev UD (covers 3051L), March 2026 Download
