Trafag EXNAL 8858 Ex Submersible Pressure Transmitter
Description
Intrinsically safe submersible pressure transmitter for tank and sump level

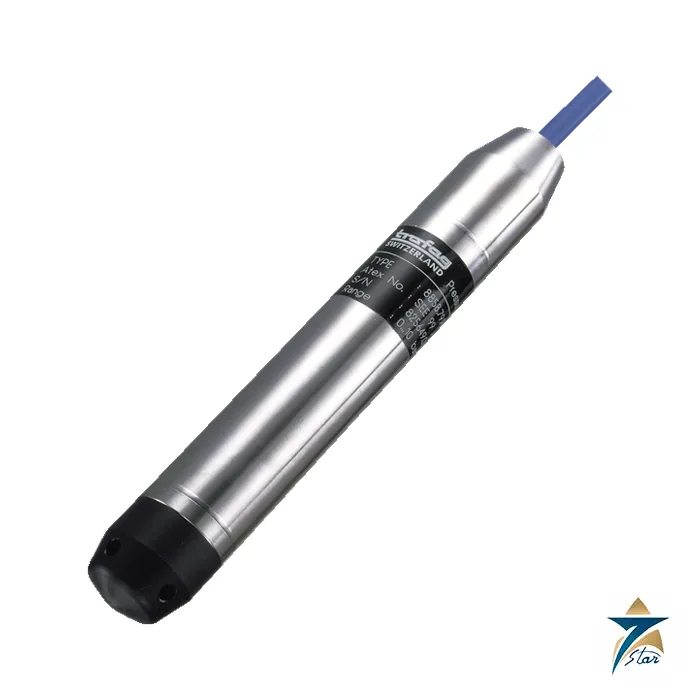

The Trafag EXNAL 8858 is a submersible pressure transmitter for hydrostatic level measurement in hazardous areas. Trafag certifies it Ex ia under Ex SEV 11 ATEX 0145 X and lists a DNV-GL approval, and sells it with PUR or FEP cable for lowering into tanks, wells, sumps and shipboard tanks.
The sensor is piezoresistive with ranges from 0.1 to 25 bar and a 4 to 20 mA output. The housing and pressure connection are 316L stainless steel, with titanium and seawater options for corrosive media.
Technical specifications of the EXNAL 8858
| Parameter | Specification |
|---|---|
| Manufacturer | Trafag AG, Switzerland |
| Product code | 8858 |
| Measuring principle | Piezoresistive |
| Measuring range | 0 … 0.1 bar to 0 … 25 bar |
| Output signal | 4 … 20 mA; load RL not more than (US – 9 V) / 20 mA |
| Type of protection | II 1G Ex ia IIC T3 … T6 Ga; II 1D Ex ia IIIC T125 °C Da; I M1 Ex ia I Ma |
| Certificate | Ex SEV 11 ATEX 0145 X; DNV-GL |
| Zener barrier (datasheet) | 30 VDC / 100 mA / 1 W |
| Media / ambient temperature | T4/T6: -5 to +50 °C |
| Protection | Minimum IP68 |
| Accuracy NLH | Type 05: 0.5 % FS; type 02: 0.25 % FS; type 01: 0.1 % FS (range dependent) |
| Repeatability | 0.05 % FS |
| Vibration / shock | 6 g (25 to 2000 Hz) / 50 g, 1 ms |
| Cable | PUR (6 mm) or FEP (5 mm); length specified at order |
| Wetted parts and housing | 1.4435 (AISI 316L) or titanium |
| Sealing | FKM |
| Weight | About 200 g |
Typical uses named by Trafag include shipbuilding, and the same construction suits hazardous tanks, wells and sumps where a hydrostatic probe is preferred over a top-mounted level device. The probe hangs from its cable, so the cable length and the strain relief matter as much as the electrical specification. Check that the cable jacket material is compatible with the liquid, and agree the exact cable length with the supplier before ordering because it is fixed at manufacture.
Options and ordering
The ordering code selects the pressure range, sensor accuracy type, pressure connection (open, closed or G1/4 male), cable type, output and accessories. Options listed by Trafag are lightning protection to IEC 61000-4-5 at 10 kA, special oil filling, temperature class T4 or T6, titanium material and a seawater application version.
For level measurement, convert the required water or liquid column to pressure and pick the next higher range, leaving margin for overpressure. Specify the cable length and the measuring medium when ordering.
Installation notes for hazardous areas
Trafag warns in the datasheet that additional measures against static charge are needed for Zone 0 to Zone 20 use with the cable versions. Lay the cable with an earthed metal braid, metal hose or metal pipe as the datasheet requires.
Check the barrier entity values against the loop, route the cable away from mechanical damage and keep the temperature of the medium inside the minus 5 to plus 50 degrees C limit. Follow the Trafag instructions for mounting, venting and cable termination.
Documents and quotation
The attached document is the Trafag EXNAL 8858 Ex submersible pressure transmitter datasheet (H72231h, 09/2024). Instructions and certificates are published separately by Trafag.
For a quotation, send the range, cable type and length, medium, accuracy type and any titanium or lightning protection requirement. See Level Instrumentation for related level instruments.
